Wishbone, wheel bearing housing, anti-roll bar front frt.-wh.dr.+, CAYB, CYAC, CLCA, CFHB, CFHC Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1A	1K0407151BC	Wishbone (sheet metal version)	999	Next
1A	1K0407152BC	Wishbone (sheet metal version)	999	Next
1A	1K0407151BD	Wishbone (sheet metal version)	999	Next
1A	1K0407152BD	Wishbone (sheet metal version)	999	Next
2A	1K0407182	Bonded rubber bush	999	Next
3A	1K0199231J	Bracket	999	Next
3A	1K0199232J	Bracket	999	Next
3A	1K0199231K	Bracket	999	Next
3A	1K0199232K	Bracket	999	Next
4	N10141003	Hex collared bolt M12X1,5X110	999	Next
5	N10579702	Hex collared bolt M10X76	999	Next
6	1K0407255T	Wheel bearing housing with - brake carrier	999	Next
7	1K0407256T	Wheel bearing housing with - brake carrier	999	Next
6A	1K0407255AA	Wheel bearing housing	999	Next
6A	1K0407256AA	Wheel bearing housing	999	Next
7	1K0407365C	Guide joint	999	Next
7	1K0407366C	Guide joint	999	Next
8	N90942901	Hexagon nut, self-locking M12X1,5	999	Next
9	N10332002	Hexagon collar nut M10	999	Next
10	N90635001	Hexagon nut, self-locking M12X1,5	999	Next
10	N90942902	Hexagon nut, self-locking M12X1,5	999	Next
11	WHT000237A	Ball screw optional: M12X1,5X45 WHT 000 237	999	Next
12		Shock absorbers	999	Next
13	N90954802	Oval hexagon socket head bolt M12X1,5X80	999	Next
14	N10106402	Hexagon collar nut self-locking M12X1,5	999	Next
15	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
16	1K0411303BK	Stabilizer, complete marked with: 23,6X3,5	999	Next
16	1K0411303AM	Stabilizer, complete marked with: 23MM	999	Next
17	1K0411315K	Coupling rod	999	Next
17	1K0411315P	Coupling rod	999	Next
17	1K0411315R	Coupling rod	999	Next
18	N0150816	Hexagon collar nut M12X1,50	999	Next
18A	N0150816	Hexagon collar nut M12X1,50	999	Next
19	N10528602	Hex collared bolt M12X1,50X75	999	Next
19	N91073401	Hex collared bolt M8X75	999	Next
20	5K0498621	Wheel bearing with assembly parts	999	Next
20	5K0498621A	Wheel bearing with assembly parts	999	Next
22		Console	999	Next
23		Assembly carrier	999	Next
24	N91039802	Hex collared bolt M12X1,50X90	999	Next

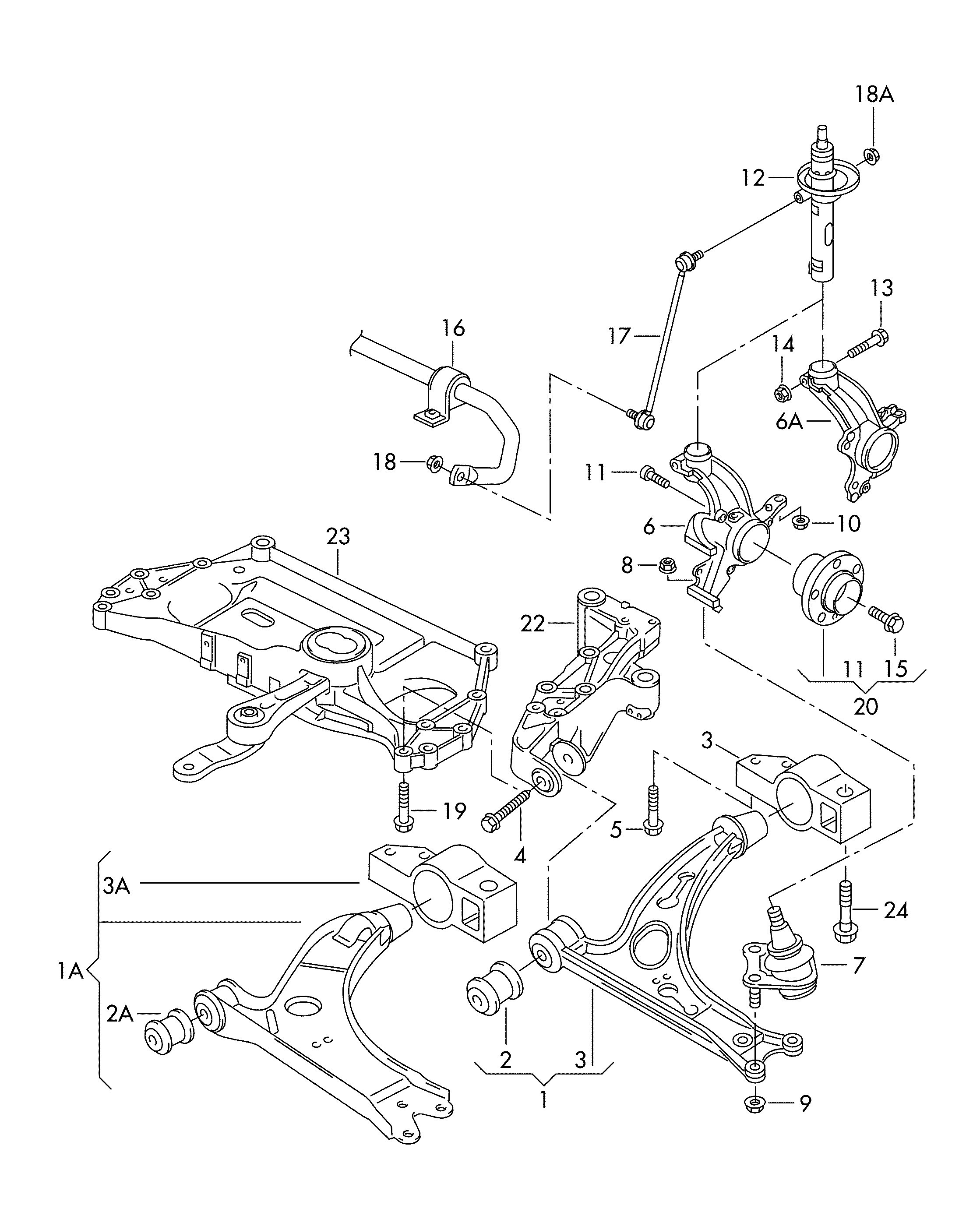

Scheme Wishbone, wheel bearing housing, anti-roll bar front frt.-wh.dr.+, CAYB, CYAC, CLCA, CFHB, CFHC Volkswagen Golf Plus 2012-2014 EUR
