Wishbone, wheel bearing housing, anti-roll bar front 4motion+, CAVA, CAVD, CAWA, CAWB, CCTA, CCZD, CCZB, CTHA, CTHD, CCZC Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0407151	Wishbone (sheet metal version)	999	Next
1	5N0407152	Wishbone (sheet metal version)	999	Next
1	1K0407182	Bonded rubber bush	999	Next
1	3C0199231D	Bracket	999	Next
1	3C0199231E	Bracket	999	Next
1	N 10141003	Hex collared bolt M12X1,5X110	999	Next
1	N 10560702	Hex collared bolt M10X70	999	Next
1	1K0407255AA	Wheel bearing housing	999	Next
1	1K0407256AA	Wheel bearing housing	999	Next
1	1K0407365C	Guide joint	999	Next
1	1K0407366C	Guide joint	999	Next
1	N 90942901	Hexagon nut, self-locking M12X1,5	999	Next
1	N 10332002	Hexagon collar nut M10	999	Next
1	N 90635001	Hexagon nut, self-locking	999	Next
1	N 90942902	Hexagon nut, self-locking	999	Next
1	WHT000237A	Ball screw	999	Next
1	WHT000237A	Ball screw	999	Next
1	WHT000237	Ball screw	999	Next
1		Shock absorbers	999	Next
1	N 90954802	Oval hexagon socket head bolt M12X1,5X80	999	Next
1	N 10106402	Hexagon collar nut self-locking M12X1,5	999	Next
1	N 10706301	Hexagon bolt M8X55	999	Next
1	N 10773401	Hexagon bolt M8X55	999	Next
1	3C0411303T	Stabilizer, complete 23	999	Next
1	3C0411303AA	Stabilizer, complete 23,6	999	Next
1	1K0411315K	Coupling rod	999	Next
1	1K0411315P	Coupling rod	999	Next
1	1K0411315R	Coupling rod	999	Next
1	1K0411315R	Coupling rod	999	Next
1	5Q0411315A	Coupling rod	999	Next
1	N 0150816	Hexagon collar nut M12X1,50	999	Next
1	N 0150816	Hexagon collar nut M12X1,50	999	Next
1	N 10640301	Hex collared bolt M12X1,5X100	999	Next
1	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
1	5K0498621	Wheel bearing with assembly parts	999	Next
1		Assembly carrier	999	Next

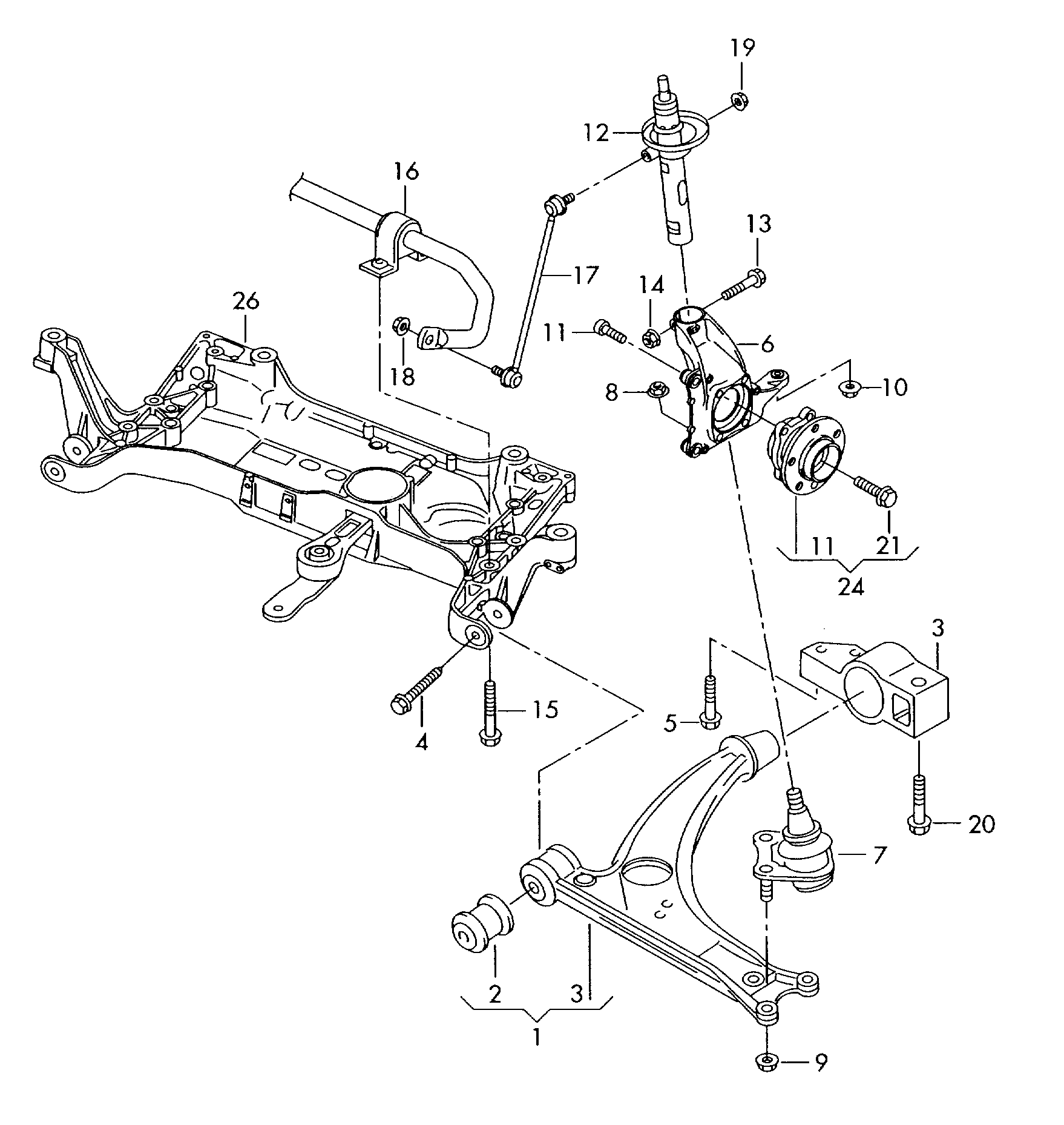

Scheme Wishbone, wheel bearing housing, anti-roll bar front 4motion+, CAVA, CAVD, CAWA, CAWB, CCTA, CCZD, CCZB, CTHA, CTHD, CCZC Volkswagen Tiguan 2010-2017 EUR
