Wishbone, wheel bearing housing, anti-roll bar front 4motion+, BWS, BLV, CNNA Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0407151E	Wishbone (cast version), before 31.05.2010	999	Next
1	5N0407151	Wishbone (sheet metal version), D 01.06.2010 and after	999	Next
1	5N0407152	Wishbone (sheet metal version), D 01.06.2010 and after	999	Next
1	3C0407151E	Wishbone (cast version), D 01.06.2010 and after	999	Next
2	1K0407182	Bonded rubber bush	999	Next
3	3C0199231D	Bracket	999	Next
4	N10141003	Hex collared bolt M12X1,5X110	999	Next
5	N10560702	Hex collared bolt M10X70	999	Next
6	3C0407253F	Wheel bearing housing	999	Next
6	3C0407254F	Wheel bearing housing	999	Next
7	3C0407365B	Guide joint	999	Next
7	3C0407365A	Guide joint	999	Next
7	3C0407366B	Guide joint	999	Next
7	3C0407366A	Guide joint	999	Next
8	WHT000785	Hexagon collar nut M12X1,5	999	Next
9	N10332002	Hexagon collar nut M10	999	Next
10	WHT000785	Hexagon collar nut M12X1,5	999	Next
11	WHT000237A	Ball screw M12X1,5X45	999	Next
12		Shock absorbers	999	Next
13	N90954802	Oval hexagon socket head bolt M12X1,5X80	999	Next
14	N10106402	Hexagon collar nut self-locking M12X1,5	999	Next
15	N10706301	Hexagon bolt M8X55	999	Next
16	3C0411303T	Stabilizer, complete 23MM	999	Next
17	1K0411315K	Coupling rod, before 22.08.2011	999	Next
17	1K0411315P	Coupling rod, D 23.08.2011 and after	999	Next
18	N0150816	Hexagon collar nut M12X1,50	999	Next
19	N0150816	Hexagon collar nut M12X1,50	999	Next
20	N10640301	Hex collared bolt M12X1,5X100	999	Next
21	WHT002795	Dodecagonal head bolt, before 07.03.2011 M16X1,5X70	999	Next
21	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
24	8J0598625	Wheel bearing with assembly parts, before 07.03.2011	999	Next
24	5K0498621	Wheel bearing with assembly parts, D 08.03.2011 and after	999	Next
26		Assembly carrier	999	Next

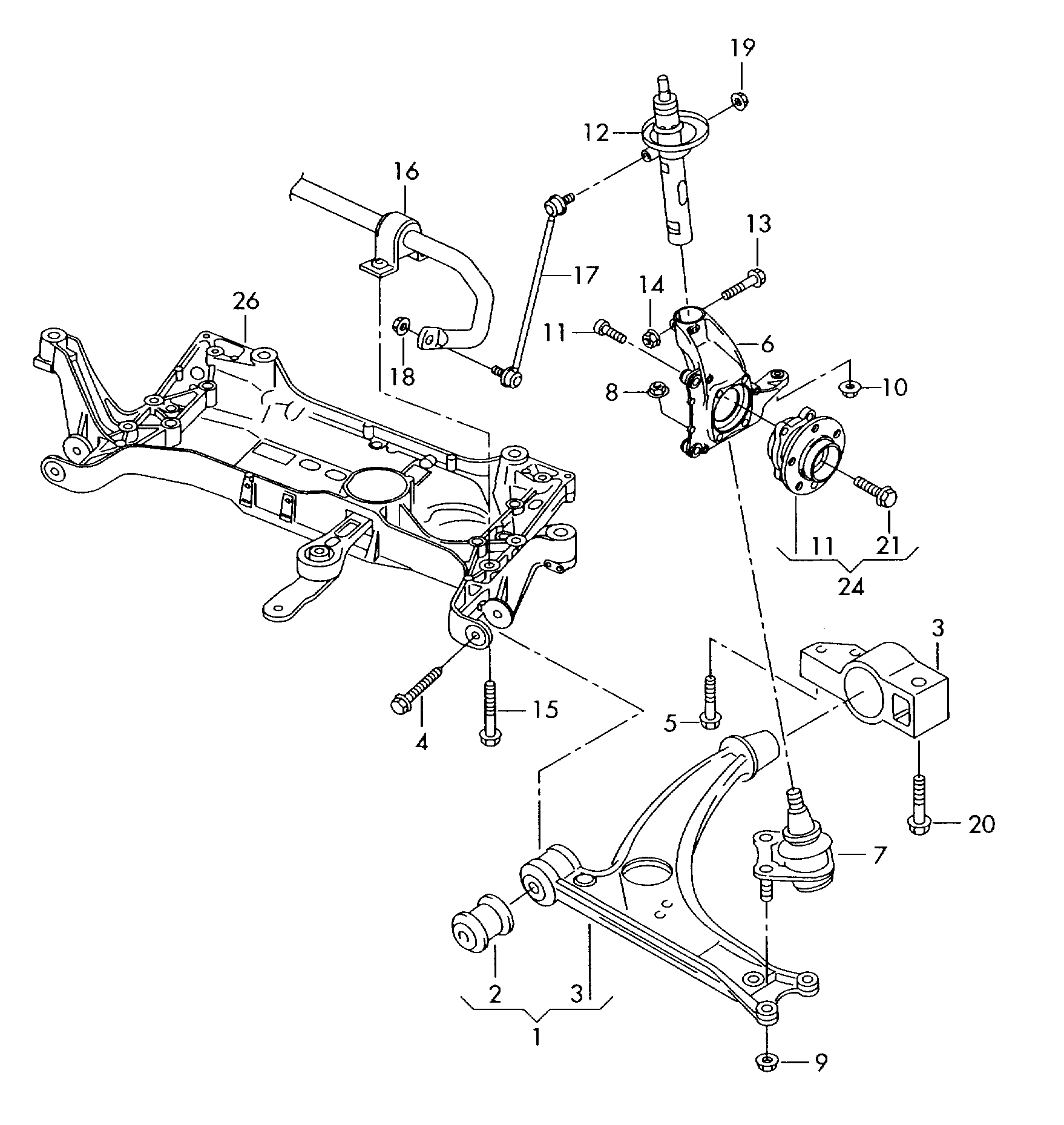

Scheme Wishbone, wheel bearing housing, anti-roll bar front 4motion+, BWS, BLV, CNNA Volkswagen Passat CC Coupe 2009-2012 EUR
