Wishbone, axle guide, wheel bearing housing rear fr.wheel drv Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0505129B	Bracket	999	Next
1	3C0505130B	Bracket	999	Next
1	3C0501475A	Cover cap for bearing support	999	Next
1	3C0501476A	Cover cap for bearing support	999	Next
1	3C0505223D	Axle guide	999	Next
1	3C0505224D	Axle guide	999	Next
1	3C0505223F	Axle guide	999	Next
1	3C0505224F	Axle guide	999	Next
1	1K0505541D	Bonded rubber bush	999	Next
1	N 90648402	Hexagon head bolt (combi) M10X35	999	Next
1	N 10170804	Hexagon bolt	999	Next
1	N 10769501	Hexagon bolt	999	Next
1	N 10628401	Hex collared bolt M12X1,50X40	999	Next
1	1K0505311AB	Wishbone	999	Next
1		Bonded rubber bush no replacement part	999	Next
1	WHT000232	Eccentric washer 35X3X5X12X105	999	Next
1	WHT000227	Eccentric bolt M12X82,5	999	Next
1	WHT001761	Eccentric bolt M12X1,5X90	999	Next
1	N 10106402	Hexagon collar nut self-locking M12X1,5	999	Next
1	1K0505323N	Wishbone	999	Next
1	5Q0505323C	Wishbone	999	Next
1	1K0614167	Bracket	999	Next
1	1K0614167C	Bracket	999	Next
1		Bonded rubber bush no replacement part	999	Next
1		Bonded rubber bush no replacement part	999	Next
1	3C0505433K	Wheel bearing housing	999	Next
1	3C0505434K	Wheel bearing housing	999	Next
1	1K0505553A	Bonded rubber bush	999	Next
1	N 91076701	Hexagon head bolt (combi)	999	Next
1	N 91201301	Hexagon head bolt (combi)	999	Next
1	1K0505193	Washer	999	Next
1	N 10401801	Hexagon collar nut M14X1,5	999	Next
1	N 10628601	Hex collared bolt	999	Next
1	N 10640501	Bolt, hex. hd. with shoul. (combi)	999	Next
1	N 10106402	Hexagon collar nut self-locking M12X1,5	999	Next
1	WHT000229A	Shouldered bolt	999	Next
1	WHT007150	Shouldered bolt M16X1,5X70	999	Next
1	1J0501249C	Cap	999	Next
1	N 10597701	Rivetted cap nut M5/0,5-3	999	Next
1	WHT000724	Retaining washer 14,5X30X3	999	Next
1	WHT000412	Shim 32,5X56X5	999	Next
1	3C0505491	O-ring	999	Next
1	3C0501249	Cap	999	Next
1	1T0598611B	Wheel bearing with assembly parts	999	Next
1	WHT000229A	Shouldered bolt	999	Next
1	3G0598611	Wheel bearing with assembly parts	999	Next
1	7N0598611	Wheel bearing with assembly parts	999	Next

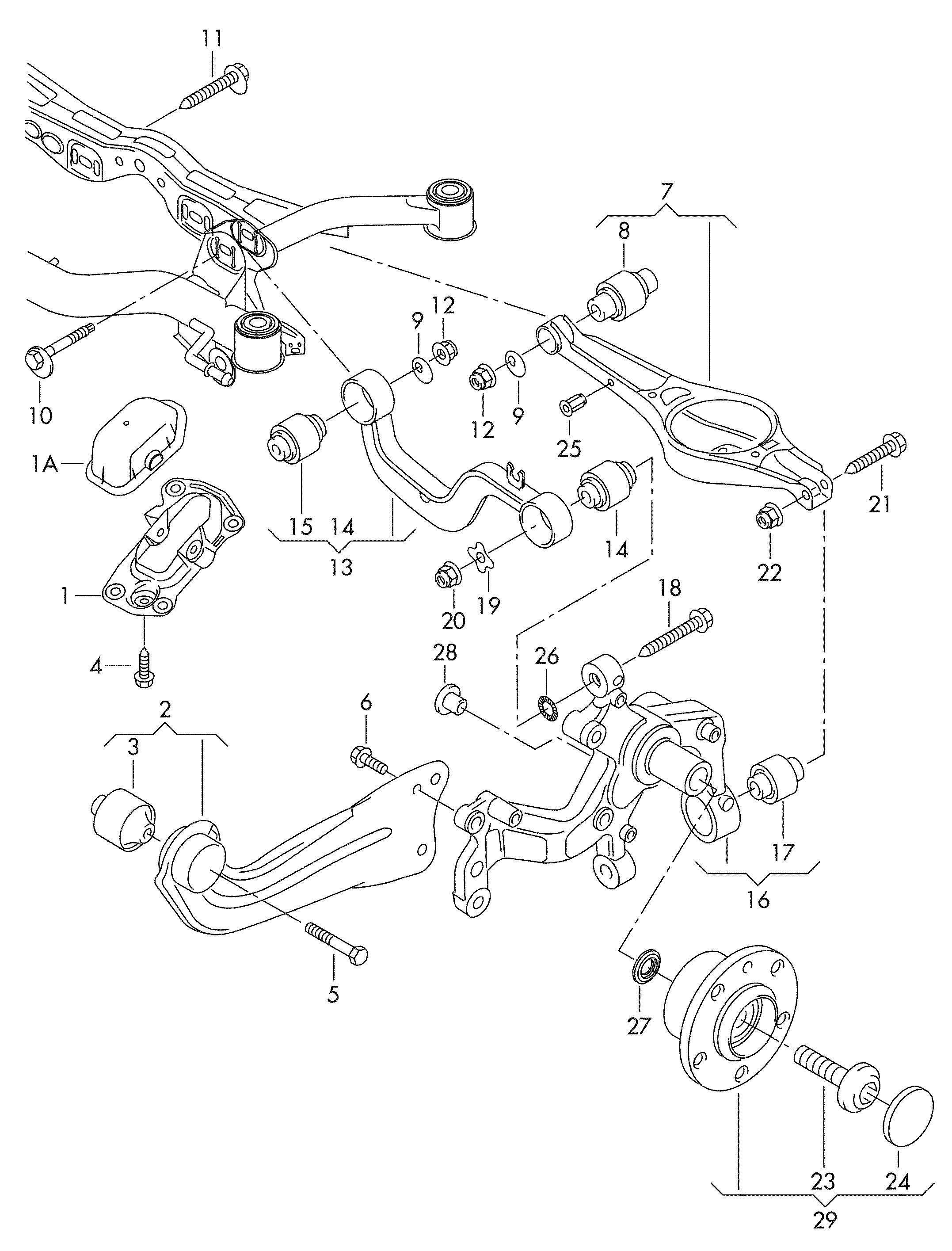

Scheme Wishbone, axle guide, wheel bearing housing rear fr.wheel drv Volkswagen Tiguan 2010-2017 EUR
