Wishbone, axle guide, wheel bearing housing rear fr.wheel drv Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0505129J	Bracket	999	Next
1	1K0505129L	Bracket	999	Next
1	1K0505130J	Bracket	999	Next
1	1K0505130L	Bracket	999	Next
1A	1K0501475	Cover cap for bearing support marked with: -L-	999	Next
1A	1K0501476	Cover cap for bearing support marked with: -R-	999	Next
2	1K0505223K	Axle guide	999	Next
2	1K0505224K	Axle guide	999	Next
3	1K0505541D	Bonded rubber bush	999	Next
4	N90648402	Hexagon head bolt (combi) M10X35	999	Next
5	N10170804	Hexagon bolt M12X1,50X80	999	Next
5	N10769501	Hexagon bolt M12X1,50X80	999	Next
6	WHT003468	Hex collared bolt M12X1,5X25	999	Next
6	WHT005747	Hexagon flange screw M12X1,5X25	999	Next
7	1K0505311AB	Wishbone	999	Next
8		Bonded rubber bush not for this model	999	Next
9	WHT000232	Eccentric washer 35X3X5X12X105	999	Next
10	WHT000227	Eccentric bolt M12X82,5	999	Next
11	WHT000228	Eccentric bolt M12X97,5	999	Next
12	N10106402	Hexagon collar nut self-locking M12X1,5	999	Next
13	1K0505323N	Wishbone	999	Next
13	5Q0505323C	Wishbone	999	Next
14		Bonded rubber bush not for this model	999	Next
15		Bonded rubber bush not for this model	999	Next
16	1K0505435AB	Wheel bearing housing 30MM	999	Next
16	1K0505436AB	Wheel bearing housing 30MM	999	Next
16	1K0505435AB	Wheel bearing housing 30MM	999	Next
16	1K0505436AB	Wheel bearing housing 30MM	999	Next
16	1K0505435AE	Wheel bearing housing 30MM	999	Next
16	1K0505436AE	Wheel bearing housing 30MM	999	Next
16	1K0505435AC	Wheel bearing housing 32MM	999	Next
16	1K0505436AC	Wheel bearing housing 32MM	999	Next
16	1K0505435AE	Wheel bearing housing 32MM	999	Next
16	1K0505436AE	Wheel bearing housing 32MM	999	Next
-	1K0505491	Cover plate	999	Next
17	1K0505553A	Bonded rubber bush	999	Next
18	N91047502	Hexagon head bolt (combi) M14X1,5X95	999	Next
18	N91197801	Hexagon head bolt (combi) M14X1,5X100	999	Next
19	1K0505193	Washer	999	Next
20	N10401801	Hexagon collar nut M14X1,5	999	Next
21	N10628601	Hex collared bolt M12X1,50X75	999	Next
21	N10640501	Bolt,hex.hd.with shoul.(combi) M12X1.5X80	999	Next
22	N10106402	Hexagon collar nut self-locking M12X1,5	999	Next
23	WHT000229A	Shouldered bolt M16X1,5X70	999	Next
24	1J0501249C	Cap	999	Next
25	N10597701	Rivetted cap nut for vehicles with headlight range adjustment M5/0,5-3	999	Next
27	8V0598611A	Wheel bearing with assembly parts 30MM	999	Next
27	8V0598611A	Wheel bearing with assembly parts 30MM	999	Next
27	1T0598611B	Wheel bearing with assembly parts 32MM	999	Next
27	1T0598611B	Wheel bearing with assembly parts 32MM	999	Next
28	1K0614167	Bracket	999	Next
28	1K0614167C	Bracket	999	Next

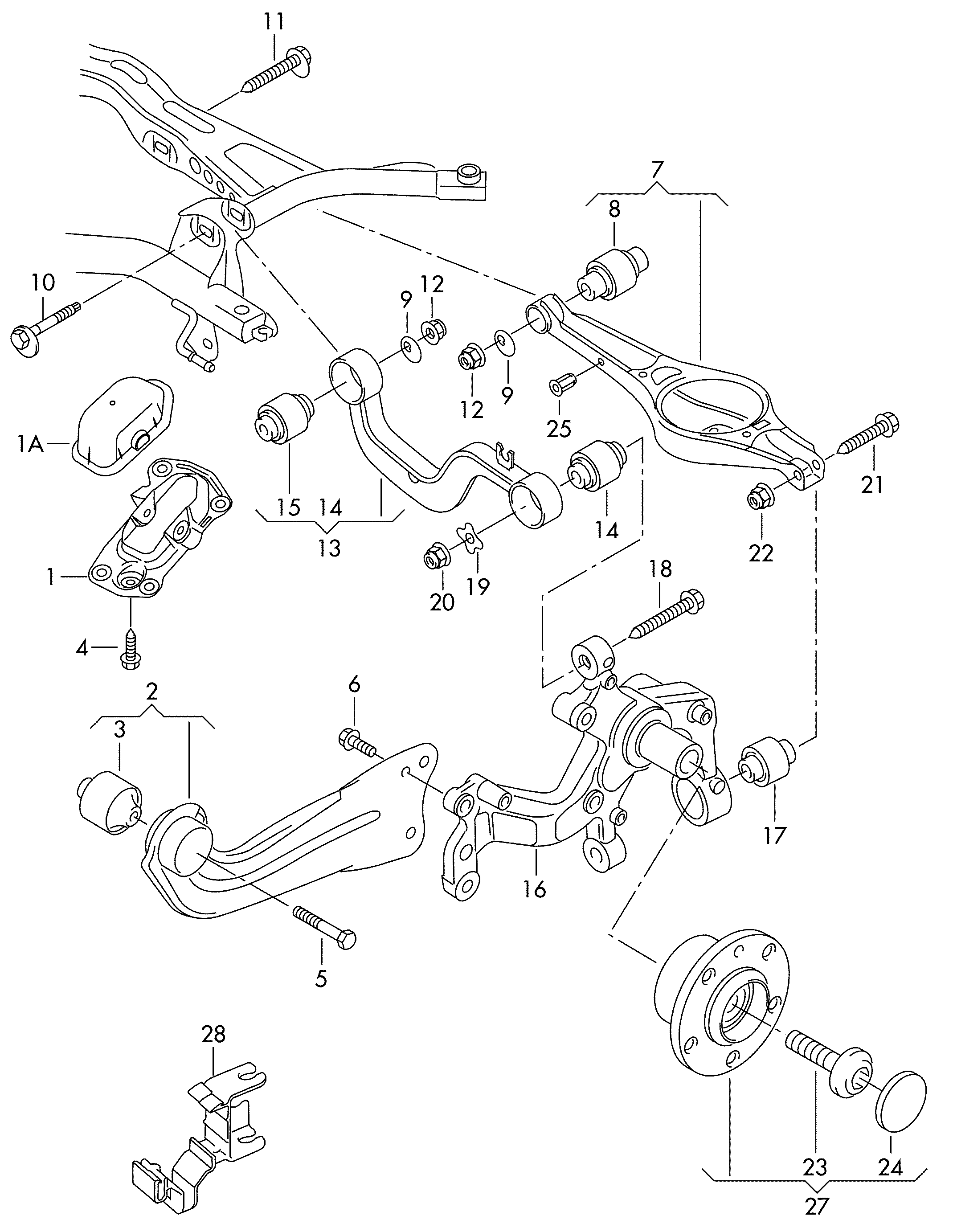

Scheme Wishbone, axle guide, wheel bearing housing rear fr.wheel drv Volkswagen Golf Plus 2012-2014 EUR
