Wishbone, axle guide, wheel bearing housing rear 4motion Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0505129B	Bracket	999	Next
1	3C0505130B	Bracket	999	Next
1A	3C0501475A	Cover cap for bearing support	999	Next
1A	3C0501476A	Cover cap for bearing support	999	Next
2	3C0505223B	Axle guide, before 26.10.2009	999	Next
2	3C0505223C	Axle guide	999	Next
2	3C0505224B	Axle guide, before 26.10.2009	999	Next
2	3C0505224C	Axle guide	999	Next
3	3C0505541	Bonded rubber bush	999	Next
4	N90648402	Hexagon head bolt (combi) M10X35	999	Next
5	N10170804	Hexagon bolt M12X1,50X80	999	Next
6	N10628401	Hex collared bolt M12X1,50X40	999	Next
7	1K0505311AB	Wishbone	999	Next
9	WHT000232	Eccentric washer 35X3X5X12X105	999	Next
10	WHT000227	Eccentric bolt M12X82,5	999	Next
11	WHT000228	Eccentric bolt M12X97,5	999	Next
12	N10106402	Hexagon collar nut self-locking M12X1,5	999	Next
13	1K0505323N	Wishbone	999	Next
-	1K0614167	Bracket	999	Next
16	3C0505433G	Wheel bearing housing	999	Next
16	3C0505434G	Wheel bearing housing	999	Next
17	1K0505553A	Bonded rubber bush	999	Next
18	N91076701	Hexagon head bolt (combi) M14X1,5X115	999	Next
19	1K0505193	Washer	999	Next
20	N10401801	Hexagon collar nut M14X1,5	999	Next
21	N10628601	Hex collared bolt M12X1,50X75	999	Next
22	N10106402	Hexagon collar nut self-locking M12X1,5	999	Next
23	WHT002795	Dodecagonal head bolt, before 16.05.2011 M16X1,5X70	999	Next
23	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
24	WHT000237A	Ball screw M12X1,5X45	999	Next
25	N10597701	Rivetted cap nut M5/0,53	999	Next
26	WHT000724	Retaining washer 14,5X30X3	999	Next
29	8J0598625	Wheel bearing with assembly parts, before 16.05.2011	999	Next
29	5K0498621	Wheel bearing with assembly parts, D 17.05.2011 and after	999	Next

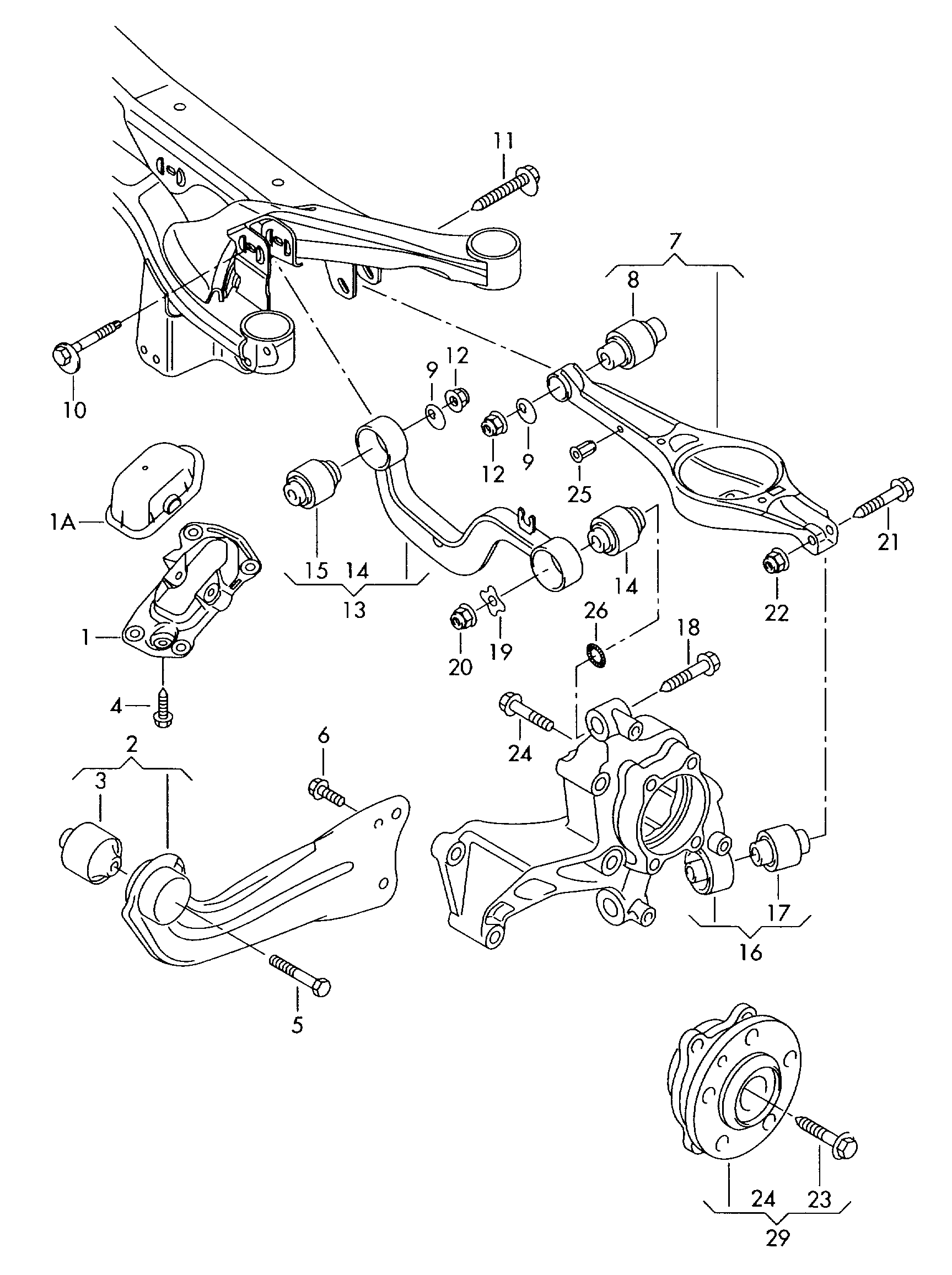

Scheme Wishbone, axle guide, wheel bearing housing rear 4motion Volkswagen Passat CC Coupe 2009-2012 EUR
