Wiring set with socket for trailer operation, adapter cable loom, allradkupplung Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0971124G	Wiring set for socket for trailer operation	999	Next
1	5N0971124K	Wiring set for socket for trailer operation	999	Next
1	5N0971124H	Wiring set for socket for trailer operation	999	Next
1	5N0971124L	Wiring set for socket for trailer operation	999	Next
1	1J0906102	Grommet 8,2X40	999	Next
1	6N0906102	Grommet 11,9X53	999	Next
1	6Q0937713	Flat contact housing with contact locking mechanism control unit for trailer detection	999	Next
1	5N0945505A	Housing for trailer towing socket tow hitch, swivel-type	999	Next
1		Socket for trailer towing	999	Next
1	3D0971838A	Cable tie with holder for weld pin: 5X200 5	999	Next
1	3W0971838	Cable ties toothed quadrant hole/sheet metal thickness: 4,6X193MM 6,5/0,3-3,0MM	999	Next
1	1J0971903	Grommet	999	Next
1	1T0971930A	Bracket for connector housing	999	Next
1	3B0972712	Flat connector housing with contact locking mechanism trailer tow hitch (spher.head)	999	Next
1	3B0972732	Flat contact housing trailer tow hitch (spher.head)	999	Next
1	1J0973702	Flat contact housing with contact locking mechanism light-emitting diode	999	Next
1	3D0973703	Flat contact housing with contact locking mechanism micro switch	999	Next
1	N 90937702	Cable ties toothed quadrant 4,6X193	999	Next
1	5N0971166	Adapter cable loom for four-wheel coupling	999	Next
1	5N0971166A	Adapter cable loom for four-wheel coupling	999	Next
1	5N0971166B	Adapter cable loom for four-wheel coupling	999	Next
1	5N0971166C	Adapter cable loom for four-wheel coupling	999	Next
1	3B0973813	Flat connector housing with contact locking mechanism coupling element central wiring set	999	Next
1	1J0973714	Flat contact housing allradkupplung	999	Next

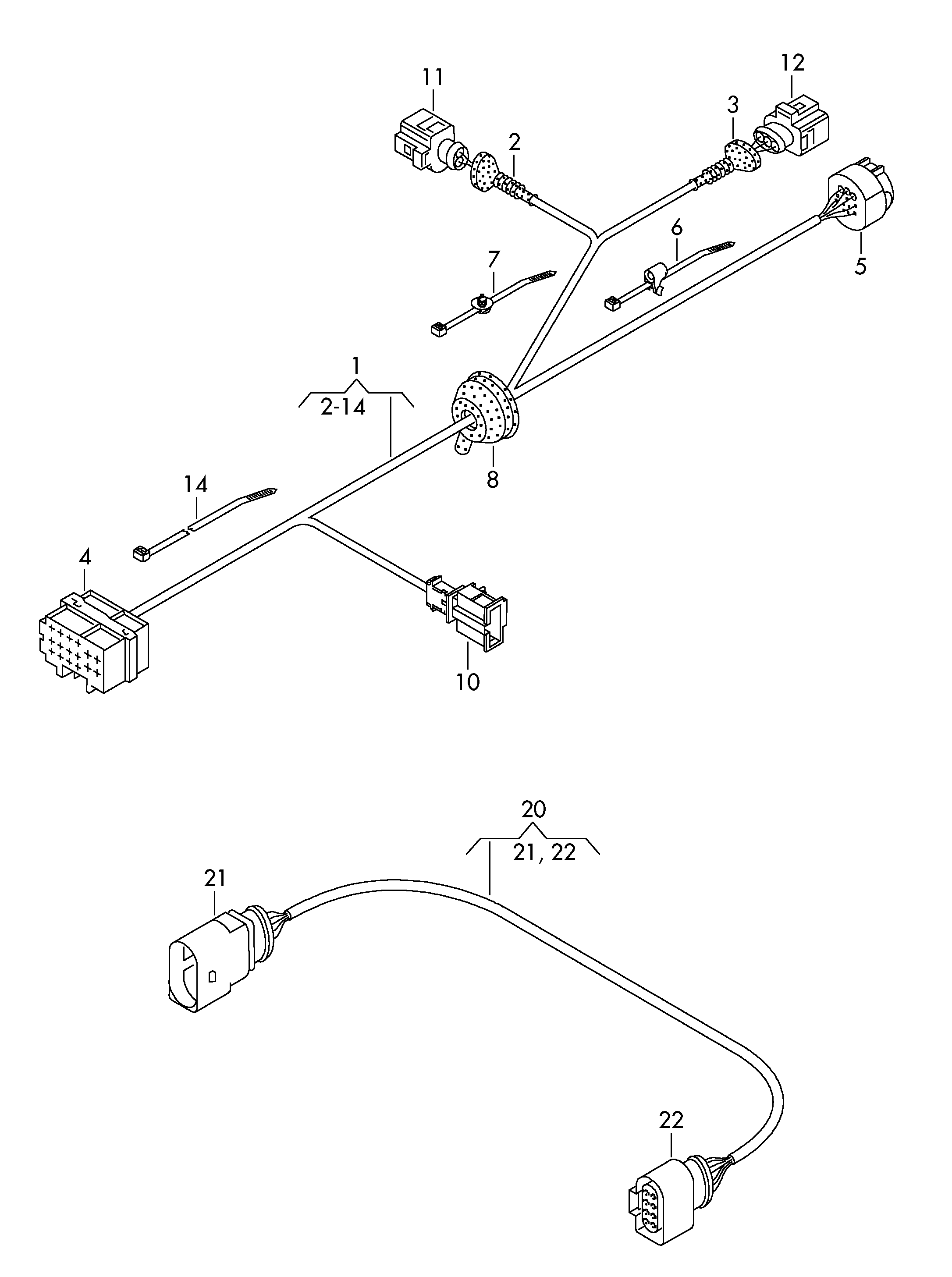

Scheme Wiring set with socket for trailer operation, adapter cable loom, allradkupplung Volkswagen Tiguan 2010-2017 EUR
