Wiring set for engine, wiring harness for injectors CAWB, CAWA, CCZB, CCZD, CCTA, CCZC Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06J971595AN	Wiring set for engine	999	Next
1	06J971595R	Wiring set for engine	999	Next
1	06J971595AN	Wiring set for engine	999	Next
1	06J971595AP	Wiring set for engine	999	Next
1	06J971595BP	Wiring set for engine	999	Next
1	06J971595BQ	Wiring set for engine	999	Next
1	06J971595BS	Wiring set for engine	999	Next
1	06J971595BT	Wiring set for engine	999	Next
1	06J971595AS	Wiring set for engine	999	Next
1	06J971595AT	Wiring set for engine	999	Next
1	06J971595BL	Wiring set for engine	999	Next
1	06J971595BN	Wiring set for engine	999	Next
1	07Z906379A	Flat contact housing with contact locking mechanism control unit	999	Next
1	6X0971921D	Protective cap flat contact housing	999	Next
1	06A971921B	Bracket protective cover	999	Next
1	1J0971798C	Sealing tape 220X60X4	999	Next
1	06J971824A	Cable guide ignition coil with spark plug connector	999	Next
1	06J971824A	Cable guide ignition coil with spark plug connector	999	Next
1	06J971824B	Cable guide ignition coil with spark plug connector	999	Next
1	4D0971992	Flat connector housing with contact locking mechanism impulse sender crankshaft	999	Next
1	4D0971992A	Flat connector housing with contact locking mechanism high pressure pump	999	Next
1	4D0971993	Flat connector housing with contact locking mechanism high-pressure sensor	999	Next
1	1J0973081	Flat contact housing with contact locking mechanism oil pressure sender	999	Next
1	07P973702	Flat contact housing with contact locking mechanism activated charcoal container with valve	999	Next
1	07P973702	Flat contact housing with contact locking mechanism camshaft adjuster unit	999	Next
1	4H0973702A	Flat contact housing camshaft adjuster unit	999	Next
1	4H0973713	Flat contact housing with contact locking mechanism throttle valve positioner	999	Next
1	8K0973702	Flat contact housing with contact locking mechanism temperature sensor	999	Next
1	8K0973703F	Flat contact housing with contact locking mechanism knock sensor	999	Next
1	4H0973713	Flat contact housing with contact locking mechanism coupling element wiring harness for injectors	999	Next
1	1J0973722	Flat contact housing with contact locking mechanism solenoid valve	999	Next
1	3B0973722A	Flat contact housing by-pass air cut-off valve	999	Next
1	4B0973724	Flat contact housing with contact locking mechanism ignition coil with spark plug connector	999	Next
1	8D0973734	Flat contact housing coupling element wiring harness for injectors	999	Next
1	1J0973837	Flat contact housing with contact locking mechanism coupling element central wiring set	999	Next
1	1K0971909B	Grommet starter	999	Next
1	1H0971615AB	Cable holder starter	999	Next
1	1K0971842A	Retaining clip line lambda probe	999	Next
1	1K0971842C	Retaining clip line lambda probe	999	Next
1	06J971858G	Holder for wiring harness wiring set for three-phase alternator	999	Next
1	1K0971858AE	Bracket wiring set for three-phase alternator	999	Next
1	1K0971858AJ	Bracket	999	Next
1	3C0971858A	Retaining plate cable guide wiring set for starter and alternator with earth lead	999	Next
1	5N0971858	Retaining plate starter	999	Next
1	N 01100840	Hexagon nut M8	999	Next
1	N 10248003	Socket head bolt with inner multipoint head M6X14	999	Next
1	N 10524202	Hex socket head locating bolt M10X12	999	Next
1	06J971082D	Wire set injection valve	999	Next
1	06J971824	Cable guide wiring harness for injectors	999	Next
1	07P973702	Flat contact housing with contact locking mechanism injection valve	999	Next
1	4H0973703	Flat contact housing with contact locking mechanism impulse sender camshaft potentiometer	999	Next
1	3B0973813	Flat connector housing with contact locking mechanism coupling element wiring set for engine	999	Next
1	8D0973834	Flat contact housing coupling element wiring set for engine	999	Next
1	3W0971838	Cable ties toothed quadrant impulse sender camshaft 4,5X200	999	Next
1	5Q0971848B	Cable holder lambda probe	999	Next
1	1K0971848R	Cable holder lambda probe	999	Next
1	5N0971845D	Bracket for connector housing lambda probe	999	Next

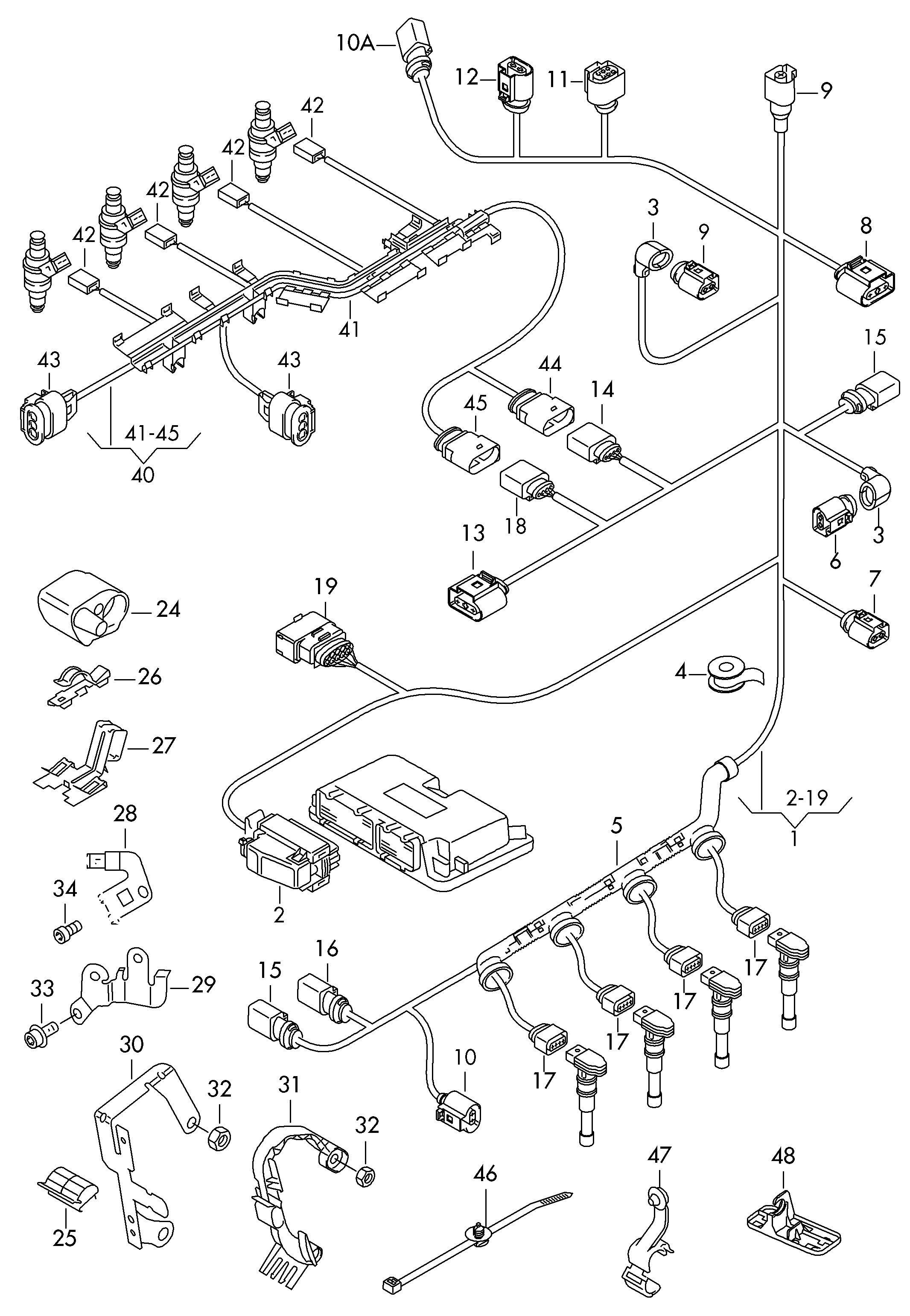

Scheme Wiring set for engine, wiring harness for injectors CAWB, CAWA, CCZB, CCZD, CCTA, CCZC Volkswagen Tiguan 2010-2017 EUR
