Wiring set for engine, wiring harness for injectors 1.8-2.0ltr. petrol eng.+, BZB, CAWB, CCTA, CCTB, CGYA, CBFA, CDAA, CDAB, CCZA, CCZB Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

Spare parts table
An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06J971604A	Wiring set for engine, before 17.05.2010	999	Next
1	06J971604Q	Wiring set for engine, D 17.05.2010 and after	999	Next
1	06J971604B	Wiring set for engine	999	Next
1	06J971604C	Wiring set for engine	999	Next
1	06J971604T	Wiring set for engine	999	Next
1	06J971604AE	Wiring set for engine	999	Next
1	06J971604AG	Wiring set for engine	999	Next
1	06J971604AH	Wiring set for engine	999	Next
1	06J971604G	Wiring set for engine, before 25.10.2010	999	Next
1	06J971604R	Wiring set for engine, D 25.10.2010 and after	999	Next
1	06J971604H	Wiring set for engine, before 25.10.2010	999	Next
1	06J971604S	Wiring set for engine, D 25.10.2010 and after	999	Next
1	06J971604J	Wiring set for engine, before 25.10.2010	999	Next
1	06J971604N	Wiring set for engine, D 25.10.2010 and after	999	Next
1	06J971604M	Wiring set for engine, before 25.10.2010	999	Next
1	06J971604P	Wiring set for engine, D 25.10.2010 and after	999	Next
2	07Z906379A	Flat contact housing with contact locking mechanism engine control unit	999	Next
3	5Q0973837	Flat contact housing with contact locking mechanism central wiring set	999	Next
3	8D0973734	Flat contact housing central wiring set	999	Next
4	4A0820199	Double cable tie 7X213/140MM	999	Next
5	1J0973704	Flat contact housing with contact locking mechanism pressure sensor intake manifold	999	Next
5	4D0971993	Flat connector housing with contact locking mechanism pressure sensor intake manifold	999	Next
7	1J0973713	Flat contact housing impulse sender	999	Next
7	4H0973713	Flat contact housing with contact locking mechanism throttle valve positioner	999	Next
7	5N1973206	Flat contact housing throttle valve positioner	999	Next
7	5N1973206	Flat contact housing throttle valve positioner	999	Next
8	1J0973081	Flat contact housing with contact locking mechanism oil pressure switch	999	Next
9	1J0973723G	Flat contact housing with gasket engine speed sender	999	Next
10	4D0971992	Flat connector housing with contact locking mechanism speed sender crankshaft	999	Next
10	4D0971992A	Flat connector housing with contact locking mechanism fuel cut-off valve	999	Next
11	4H0973702	Flat contact housing temperature sensor for coolant temperature gauge camshaft adjuster unit temperature sensor intake manifold	999	Next
11	1J0973702	Flat contact housing with contact locking mechanism temperature sensor for coolant temperature gauge camshaft adjuster unit temperature sensor intake manifold	999	Next
11	1J0973702	Flat contact housing with contact locking mechanism temperature sensor for coolant temperature gauge temperature sensor intake manifold	999	Next
11	1J0973702	Flat contact housing with contact locking mechanism oil pressure switch	999	Next
11	07P973702	Flat contact housing with contact locking mechanism camshaft adjuster unit valve for active charcoal canister	999	Next
11	07P973702	Flat contact housing with contact locking mechanism secondary air valve	999	Next
11	4F0973202	Flat contact housing camshaft adjuster unit valve for active charcoal canister	999	Next
11	8J0973202	Flat contact housing with contact locking mechanism camshaft adjuster unit valve for active charcoal canister	999	Next
12	6H0971921C	Bracket protective cover flat contact housing camshaft adjuster unit	999	Next
12	6X0971921D	Protective cap flat contact housing speed sender crankshaft	999	Next
12	1C0971921A	Protective cap flat contact housing speed sender crankshaft	999	Next
12	30971921	Bracket protective cover temperature sensor intake manifold	999	Next
12	06A971921B	Bracket protective cover flat contact housing oil pressure sender	999	Next
13		Cable shoe	999	Next
14	1J0973713	Flat contact housing adapter cable loom impulse sender camshaft	999	Next
16	8D0973734	Flat contact housing wiring harness for injectors	999	Next
16	1J0973713	Flat contact housing wiring harness for injectors	999	Next
17	4B0973724	Flat contact housing with contact locking mechanism ignition coil with spark plug connector	999	Next
18	06F971824C	Cable guide ignition coil with spark plug connector	999	Next
18	06J971824A	Cable guide ignition coil with spark plug connector	999	Next
19	1J0973703B	Flat contact housing with contact locking mechanism knock sensor	999	Next
19	1J0973703B	Flat contact housing with contact locking mechanism knock sensor	999	Next
19	3B0973703A	Flat contact housing with contact locking mechanism knock sensor	999	Next
20	1J0973705	Flat contact housing with contact locking mechanism air flap adjuster	999	Next
21	1J0973722A	Flat contact housing with contact locking mechanism by-pass air cut-off valve	999	Next
22	1J0973722	Flat contact housing with contact locking mechanism valve variable intake manifold valve for active charcoal canister	999	Next
22	1J0973722	Flat contact housing with contact locking mechanism valve variable intake manifold	999	Next
22	3B0973722A	Flat contact housing deceleration cut-off valve	999	Next
24	3B0973703G	Flat contact housing with contact locking mechanism pressure monitoring unit injection tube	999	Next
30	06J971082D	Wire set injection valve	999	Next
31	8D0973834	Flat contact housing central wiring set	999	Next
31	3B0973813	Flat connector housing with contact locking mechanism central wiring set	999	Next
32	07P973702	Flat contact housing with contact locking mechanism injection valve	999	Next
32	4F0973202	Flat contact housing injection valve	999	Next
32	4H0973703	Flat contact housing with contact locking mechanism pressure sensor injection tube impulse sender camshaft	999	Next
33	06J971824	Cable guide wiring harness for injectors	999	Next
35, 36, 37,		Adapter cable loom impulse sender included in position: 30	999	Next
40	06F971845C	Bracket knock sensor	999	Next
41	03G971845	Bracket for connector housing	999	Next
42	06F971845B	Bracket knock sensor	999	Next
43	06F971845	Bracket for connector housing	999	Next
43	06J971845	Bracket	999	Next
44	036971845E	Bracket for connector housing	999	Next
45	06F971804E	Bracket knock sensor	999	Next
46	06A971845S	Bracket for connector housing	999	Next
46	06J971858F	Bracket	999	Next
46	06J971858G	Holder for wiring harness wiring set for three-phase alternator	999	Next
46	1K0971858AJ	Bracket gear housing	999	Next
46	1K0971858AS	Retaining bracket gear housing four-wheel drive	999	Next
46	1H0971615AB	Cable holder	999	Next
47	06F971804N	Bracket vacuum pump	999	Next
48	06F971501C	Bracket wiring set for engine	999	Next
48	06J971502C	Bracket wiring set for engine	999	Next
48	701971939	Clip	999	Next

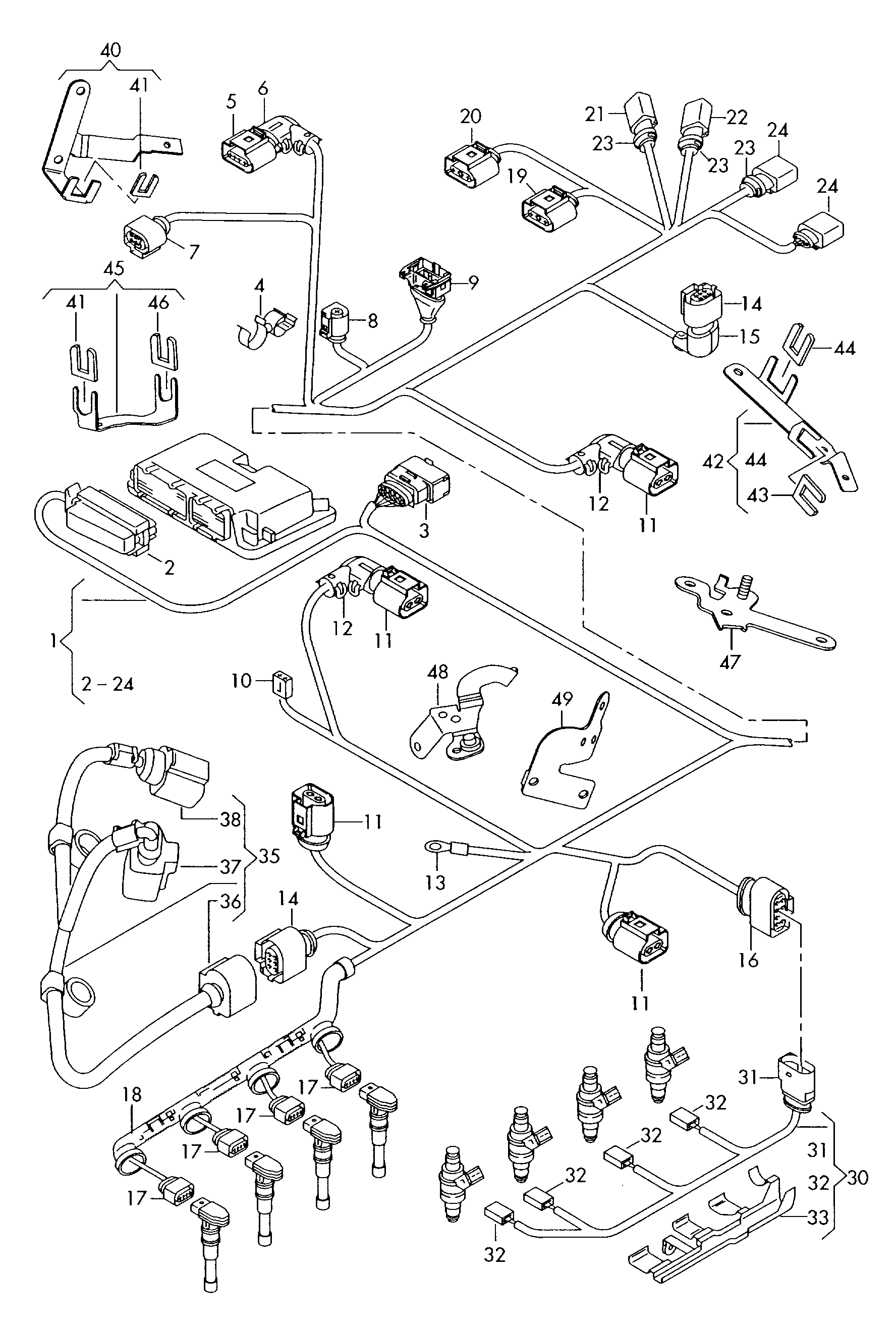

Scheme Wiring set for engine, wiring harness for injectors 1.8-2.0ltr. petrol eng.+, BZB, CAWB, CCTA, CCTB, CGYA, CBFA, CDAA, CDAB, CCZA, CCZB Volkswagen Passat CC Coupe 2009-2012 EUR
