Wiring set for engine diesel eng.+, CAYB, CAYC, CLCA, CFHB, CFHC Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	036972619AG	Wiring set for engine	999	Next
3	1J0906379B	Flat contact housing with gasket control unit	999	Next
4	03C971341	Cable guide connection piece ignition coil with spark plug connector	999	Next
-	03C937073	Clip cable guide	999	Next
5	36971738	Bracket for corrugated pipe	999	Next
6	1J0971798C	Sealing tape 220X60X4	999	Next
7	036971824D	Cable guide	999	Next
8	30971921	Bracket protective cover	999	Next
9	6H0971921C	Bracket protective cover	999	Next
10	1J0973081	Flat contact housing with contact locking mechanism oil pressure switch	999	Next
11	8K0973702	Flat contact housing with contact locking mechanism temperature sensor knock sensor	999	Next
12	8K0973703	Flat contact housing with contact locking mechanism camshaft	999	Next
12	8K0973703F	Flat contact housing with contact locking mechanism engine speed sender	999	Next
13	8K0973704	Flat contact housing with contact locking mechanism pressure sender	999	Next
14	4H0973713	Flat contact housing with contact locking mechanism throttle valve	999	Next
16	06A973722	Flat contact housing with contact locking mechanism injection valve	999	Next
17	1J0973722A	Flat contact housing with contact locking mechanism valve activated carbon filter system	999	Next
18	1J0973724	Flat contact housing ignition coil with spark plug connector	999	Next
19	1J0973837	Flat contact housing with contact locking mechanism	999	Next
22	1H0971615AB	Cable holder	999	Next
22	1K0971615DD	Cable guide	999	Next
23	1K0971842A	Retaining clip	999	Next
23	1K0971739K	Cable holder	999	Next
23	1K0971739M	Retaining clip	999	Next
24	1K0971842F	Bracket line oil level sensor	999	Next
25	6Q0971842	Cable holder	999	Next
26	811971848B	Retaining clip	999	Next
26	1K0971739L	Clip	999	Next
27	1K0971858BM	Bracket	999	Next
27	1K0971858BL	Bracket	999	Next
27	1K0971858M	Bracket	999	Next
27	036971858D	Bracket wiring set for engine	999	Next
28	1K0971909B	Grommet starter	999	Next
29	1J0972825G	Guide tube	999	Next
30	N01100840	Hexagon nut M8	999	Next

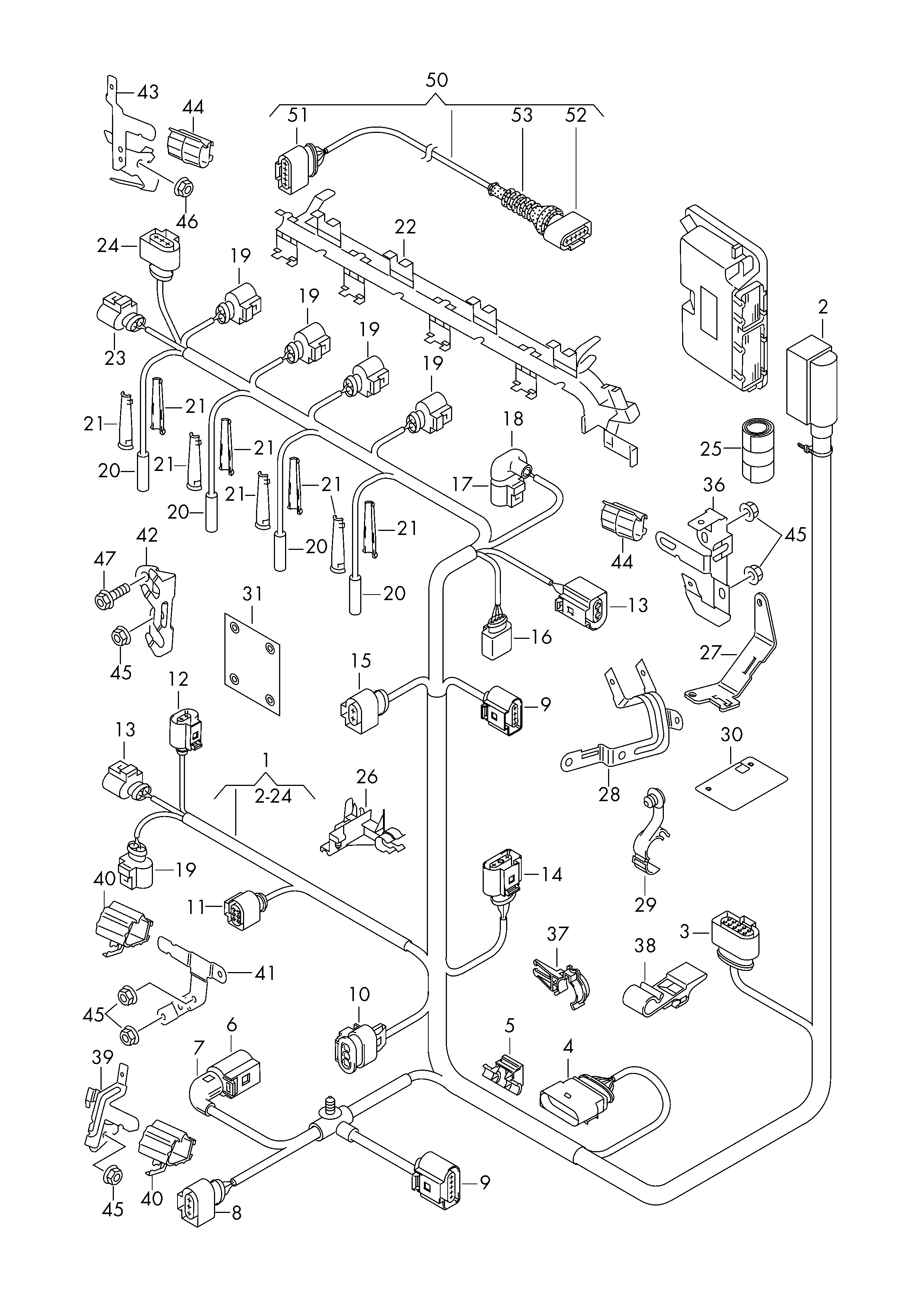

Scheme Wiring set for engine diesel eng.+, CAYB, CAYC, CLCA, CFHB, CFHC Volkswagen Golf Plus 2012-2014 EUR
