Wiring set for engine CZDA, CZDB Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	04E971595AL	Wiring set for engine	999	Next
1	04E971595AM	Wiring set for engine	999	Next
1	04E971595AD	Wiring set for engine	999	Next
1	04E971595AE	Wiring set for engine	999	Next
1	1J0973081	Flat contact housing with contact locking mechanism oil pressure switch	999	Next
1	1J0973701A	Flat contact housing with contact locking mechanism oil pressure switch	999	Next
1	07P973702	Flat contact housing with contact locking mechanism camshaft adjuster unit	999	Next
1	4H0973702A	Flat contact housing injection valve camshaft adjuster unit oil pressure regulating valve	999	Next
1	6X0973722G	Flat contact housing with contact locking mechanism solenoid valve activated charcoal container	999	Next
1	8K0973702	Flat contact housing with contact locking mechanism coolant temperature sender knock sensor	999	Next
1	8P0973722	Flat contact housing with contact locking mechanism actuator motor for air flow flap	999	Next
1	8K0971921	Protective cap	999	Next
1	8K0971921E	Bracket protective cover	999	Next
1	4H0973703A	Flat contact housing oil pressure switch	999	Next
1	4D0971993	Flat connector housing with contact locking mechanism fuel pressure switch	999	Next
1	4H0973703	Flat contact housing with contact locking mechanism impulse sender camshaft coolant pump	999	Next
1	8K0971921A	Protective cap	999	Next
1	4D0971994	Flat connector housing with contact locking mechanism ignition coil	999	Next
1	8K0973704	Flat contact housing with contact locking mechanism charge pressure sender pressure sender	999	Next
1	6X0971921D	Protective cap	999	Next
1	4H0973713	Flat contact housing with contact locking mechanism throttle valve	999	Next
1	4H0973713F	Flat contact housing with contact locking mechanism control motor for temperature regulating flap	999	Next
1	06A971921C	Protective cap	999	Next
1	5Q0973837	Flat contact housing with contact locking mechanism wiring harness for interior	999	Next
1	WHT005646	Protective cap	999	Next
1	07Z906379A	Flat contact housing with contact locking mechanism engine control unit	999	Next
1	4B0971848	Cable holder	999	Next
1	N 90937702	Cable ties toothed quadrant 4,6X193	999	Next
1	03L971845G	Cable holder	999	Next
1	WHT005317	Cable ties hole/sheet metal thickness: 161MM 6,5/0,6-4,0	999	Next
1	N 10659601	Cable tie with terminal socket for bridge strength: securing element: 4,6X200MM 3,0-6,0MM	999	Next
1	N 10820101	Cable tie with hose retainer for cable: 4,5X213MM 17-18MM	999	Next
1	N 10659801	Cable tie with terminal socket for bridge strength: toothed quadrant 4,6X200MM 3,0-6,0MM	999	Next
1	5M0971838	Cable tie with terminal socket with side cable guide for bridge strength: cable ties 4,6X200 1-3MM	999	Next
1	5Q2971767	Wiring harness for vacuum pump	999	Next
1	4B0906102	Grommet	999	Next
1	1J0906029A	Bracket for connector housing flat connector housing	999	Next
1	1J0973733	Flat contact housing vacuum pump	999	Next
1	1J0973824	Flat contact housing coupling element wiring set for engine	999	Next
1	022971921A	Bracket protective cover	999	Next
1	N 10800101	Cable holder	999	Next
1	3D0971838L	Cable tie with terminal socket for bridge strength: 4,6X200 1-3MM	999	Next

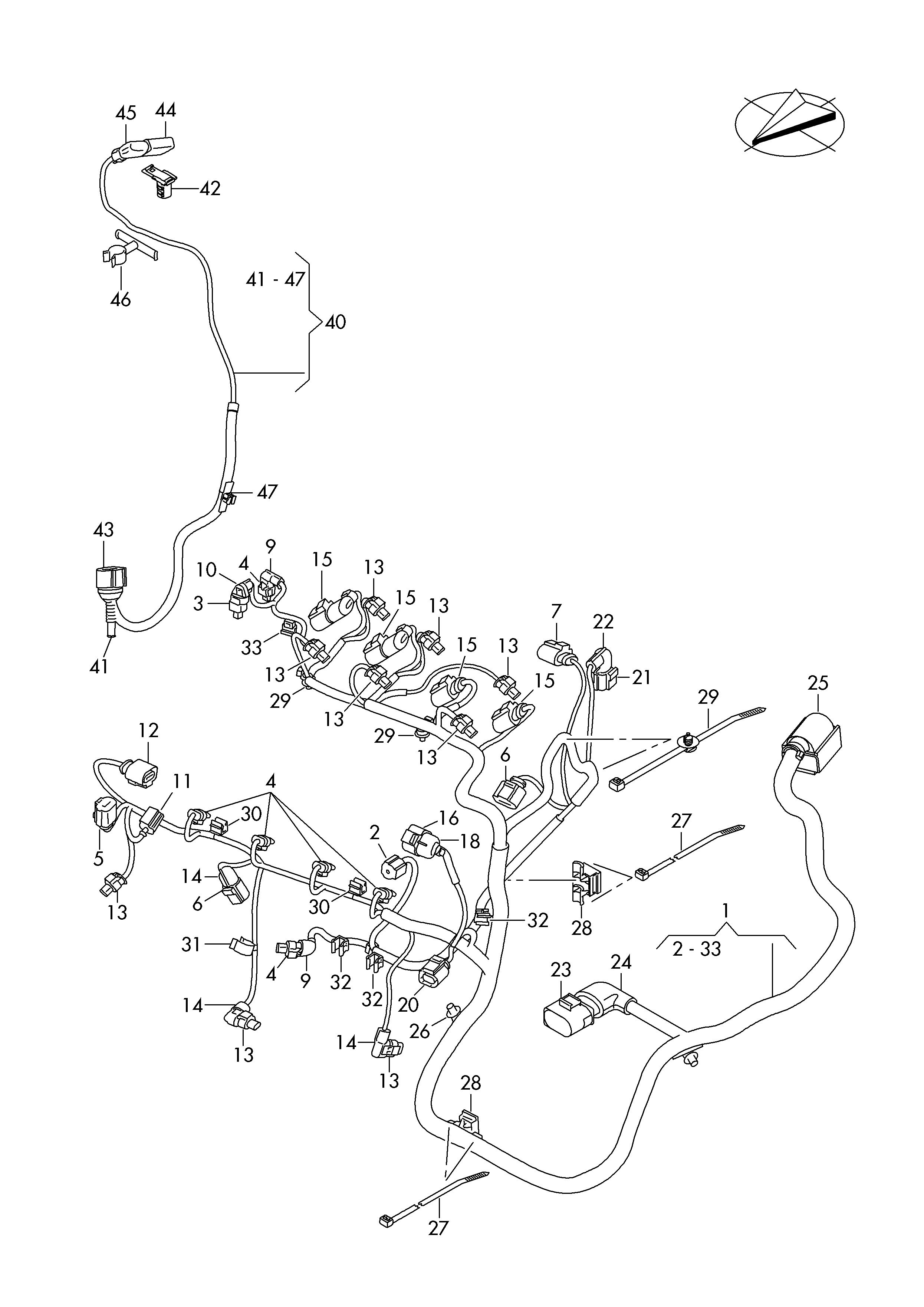

Scheme Wiring set for engine CZDA, CZDB Volkswagen Tiguan 2010-2017 EUR
