Wiring set for engine CKMA Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C971604AH	Wiring set for engine	999	Next
1	03C971604AJ	Wiring set for engine	999	Next
2	3C0906379	Flat contact housing with contact locking mechanism control unit	999	Next
3	036971047B	Cable guide connection piece ignition coil with spark plug connector	999	Next
4	03C971824H	Cable guide injection valve	999	Next
4	03C971824C	Cable guide injection valve	999	Next
4	03L971845	Cable holder	999	Next
5	8E0973722	Flat contact housing with contact locking mechanism injection valve for models with natural gas drive	999	Next
6	4D0971993	Flat connector housing with contact locking mechanism high-pressure sensor	999	Next
7	1J0973081	Flat contact housing with contact locking mechanism oil pressure sender	999	Next
8	07P973702	Flat contact housing with contact locking mechanism high pressure pump control valve	999	Next
8	1J0973702	Flat contact housing with contact locking mechanism knock sensor	999	Next
8	8K0973702	Flat contact housing with contact locking mechanism temperature sensor coolant pump	999	Next
8	8K0973702	Flat contact housing with contact locking mechanism camshaft adjuster unit	999	Next
8	6H0971921C	Bracket protective cover flat contact housing	999	Next
9	8K0973703F	Flat contact housing with contact locking mechanism engine speed sender crankshaft	999	Next
10	8K0973703	Flat contact housing with contact locking mechanism impulse sender camshaft	999	Next
10	3D0973703	Flat contact housing with contact locking mechanism fuel low warning sender	999	Next
11	8K0973704	Flat contact housing with contact locking mechanism pressure sensor	999	Next
11	1J0973705	Flat contact housing with contact locking mechanism control flap	999	Next
11	6X0971921D	Protective cap flat contact housing 1J0 973 704	999	Next
12	4H0973713	Flat contact housing with contact locking mechanism accelerator pedal sender	999	Next
13	8P0973722	Flat contact housing with contact locking mechanism valve activated charcoal container with valve	999	Next
14	1J0973722A	Flat contact housing with contact locking mechanism overrun air system	999	Next
14	1J0971921K	Protective cap	999	Next
15	4B0973724	Flat contact housing with contact locking mechanism ignition coil with spark plug connector	999	Next
16	5Q0973837	Flat contact housing with contact locking mechanism harness for engine compartment	999	Next

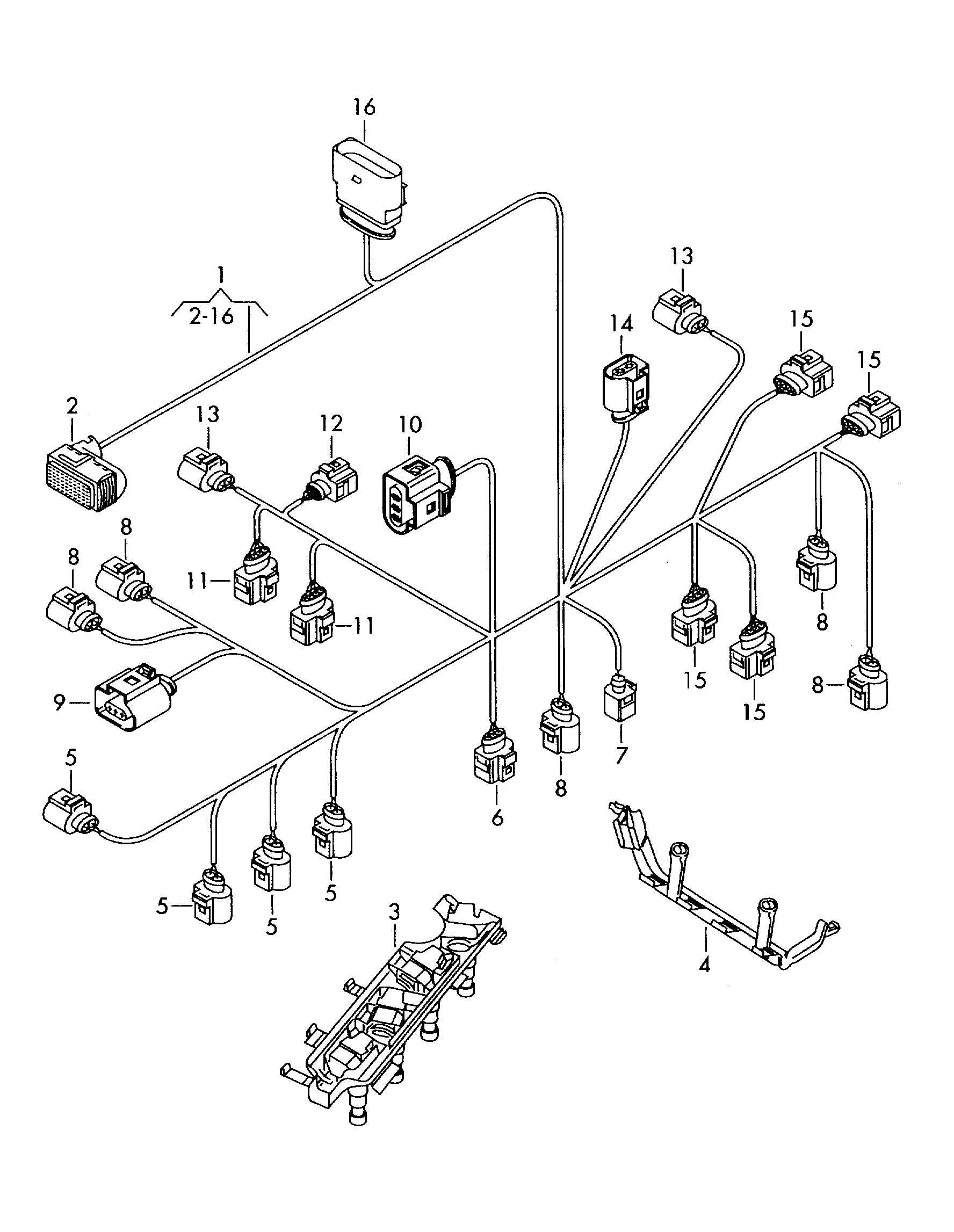

Scheme Wiring set for engine CKMA Volkswagen Passat CC Coupe 2009-2012 EUR
