Wiring set for engine CGGA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06A972619AH	Wiring set for engine	999	Next
1	06A972619AL	Wiring set for engine	999	Next
1	06A972619AM	Wiring set for engine	999	Next
-	JNV971603	Wiring harness for diagnosis	999	Next
-	6R0910787	Cd-rom for software adaptation diagnosis unit	999	Next
2	1J0971798C	Sealing tape 220X60X4	999	Next
3	06A971824M	Cable guide	999	Next
3	06A971824P	Cable guide	999	Next
-	1K0971842F	Bracket line oil level sensor	999	Next
4	1C0971921A	Protective cap	999	Next
5	4E0972479	Flat contact housing with cap engine control unit	999	Next
6	1J0973081	Flat contact housing with contact locking mechanism oil pressure sender	999	Next
7	8K0973702	Flat contact housing with contact locking mechanism temperature sensor knock sensor	999	Next
8	8K0973703	Flat contact housing with contact locking mechanism impulse sender	999	Next
10	1J0973833	Flat contact housing for vehicles with liquid gas operation (lpg)	999	Next
10	1J0973733	Flat contact housing for vehicles with liquid gas operation (lpg)	999	Next
9	8K0973704	Flat contact housing with contact locking mechanism pressure sender	999	Next
10	4H0973713	Flat contact housing with contact locking mechanism throttle valve positioner	999	Next
12	06A973722	Flat contact housing with contact locking mechanism injection valve	999	Next
13	1J0973722	Flat contact housing with contact locking mechanism temperature sensor valve heater pipe	999	Next
14	1J0973723G	Flat contact housing with gasket speed sender	999	Next
15	1J0973724	Flat contact housing ignition coil	999	Next
16	1J0973837	Flat contact housing with contact locking mechanism coupling element central wiring set	999	Next

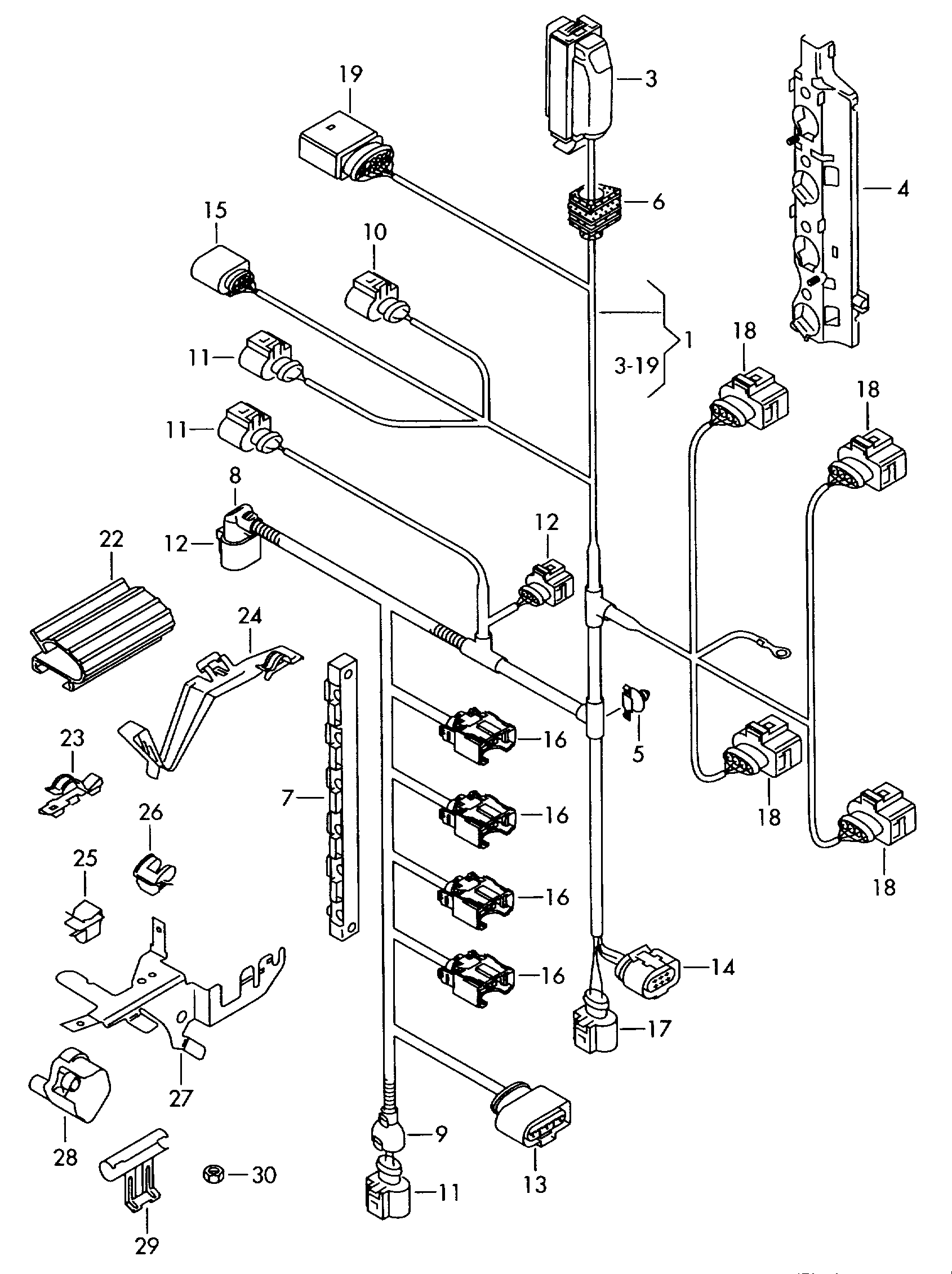

Scheme Wiring set for engine CGGA Volkswagen Golf Plus 2012-2014 EUR
