Wiring set for engine CFFD, CFFA, CFFB, CFGB, CLJA, CFGC Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03L971595AG	Wiring set for engine	999	Next
1	03L971595AH	Wiring set for engine	999	Next
1	07Z906379A	Flat contact housing with contact locking mechanism control unit	999	Next
1	07Z971782	Round insert sleeve with line glow plug	999	Next
1	1J0971798C	Sealing tape 220X60X4	999	Next
1	03L971824H	Cable guide	999	Next
1	3D0971838A	Cable tie with holder for weld pin: 5X200 5	999	Next
1	03L971845	Cable holder	999	Next
1	1J0971921E	Protective cap	999	Next
1	30971921	Bracket protective cover	999	Next
1	03L971921A	Protective cap	999	Next
1	06A971921B	Bracket protective cover	999	Next
1	4D0971992	Flat connector housing with contact locking mechanism injection valve high pressure pump	999	Next
1	4D0971992A	Flat connector housing with contact locking mechanism pressure-relief valve	999	Next
1	4D0971993	Flat connector housing with contact locking mechanism pressure sensor	999	Next
1	1J0973081	Flat contact housing with contact locking mechanism oil pressure sender	999	Next
1	07P973702	Flat contact housing with contact locking mechanism temperature sensor fuel line	999	Next
1	8J0973202	Flat contact housing with contact locking mechanism temperature sensor fuel line	999	Next
1	4H0973703	Flat contact housing with contact locking mechanism additional coolant pump	999	Next
1	8K0973702	Flat contact housing with contact locking mechanism temperature sensor	999	Next
1	8K0973703	Flat contact housing with contact locking mechanism impulse sender crankshaft exhaust gas turbocharger	999	Next
1	8K0973705	Flat contact housing with contact locking mechanism control flap use if required: 443 906 102 G	999	Next
1	443906102G	Grommet 13,5X19	999	Next
1	443906102E	Grommet 18X20,5	999	Next
1	4H0973713F	Flat contact housing with contact locking mechanism exhaust recirculation valve	999	Next
1	1J0973722	Flat contact housing with contact locking mechanism cut-off valve heater breather line	999	Next
1	1J0973723	Flat contact housing with gasket impulse sender camshaft	999	Next
1	1J0973837	Flat contact housing with contact locking mechanism coupling element central wiring set	999	Next
1	N 90937702	Cable ties toothed quadrant 4,6X193	999	Next
1	N 90685101	Bracket for connector housing 6,5	999	Next
1	N 10538801	Bracket 19X12X10	999	Next
1	5N0971461	Heat deflector hose 80MM	999	Next
1	1H0971615AB	Cable holder	999	Next
1	3C0971858A	Retaining plate cable guide starter	999	Next
1	N 01100840	Hexagon nut M8	999	Next
1	04L971501C	Bracket heat shield harness for lambda probe	999	Next

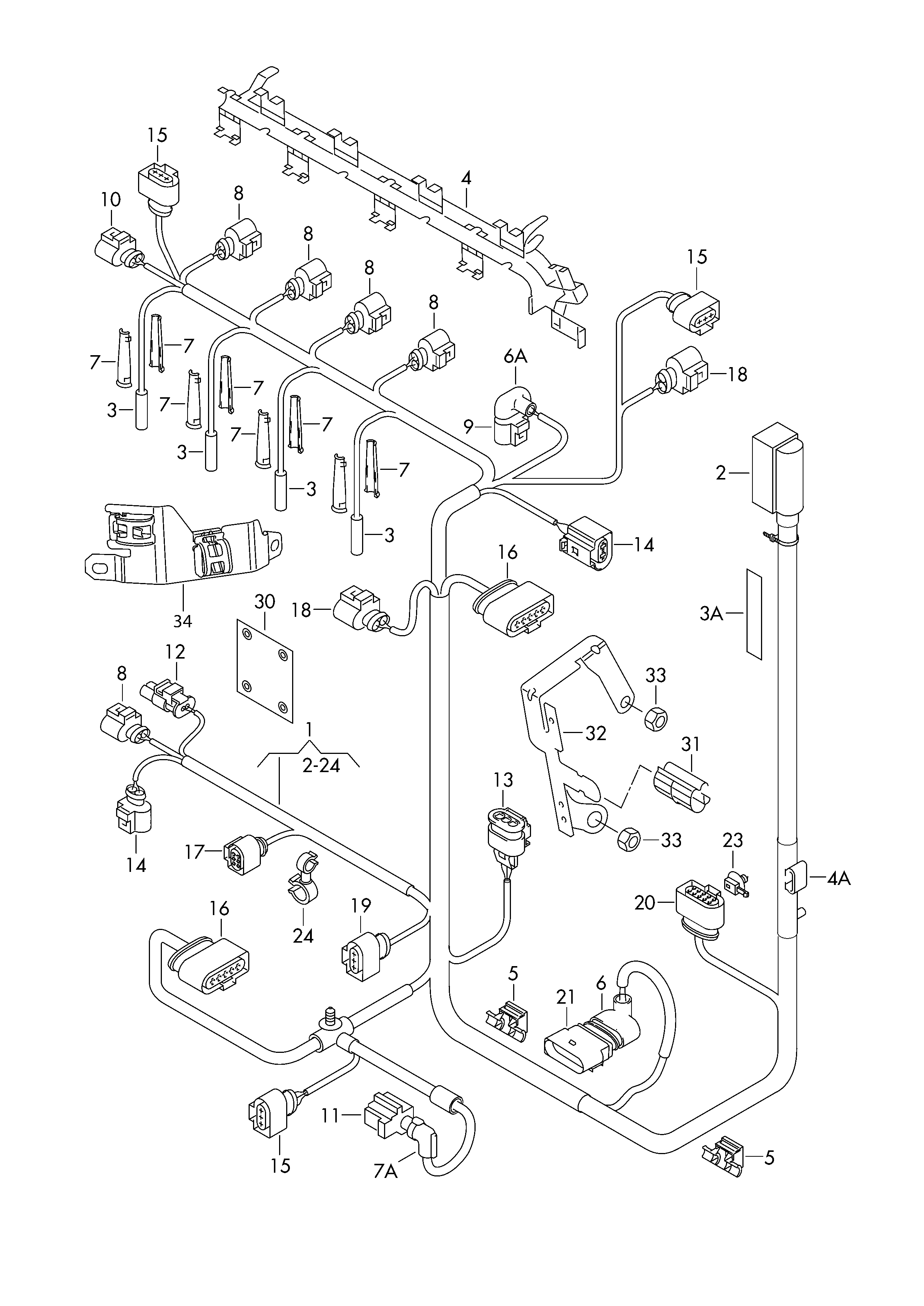

Scheme Wiring set for engine CFFD, CFFA, CFFB, CFGB, CLJA, CFGC Volkswagen Tiguan 2010-2017 EUR
