Wiring set for engine CBZB Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03F971612A	Wiring set for engine	999	Next
3	6R0971615T	Cable guide	999	Next
4	4E0906379	Flat contact housing with contact locking mechanism engine control unit	999	Next
5	6Q0971848L	Cable holder coupling element harness for engine compartment	999	Next
6	03F971824	Cable guide	999	Next
7	03F971858	Holder for wiring harness	999	Next
8	1J0973081	Flat contact housing with contact locking mechanism oil pressure switch	999	Next
9	4H0973702A	Flat contact housing fuel pump	999	Next
10	1J0973702	Flat contact housing with contact locking mechanism knock sensor temperature sensor	999	Next
11	1J0973713G	Flat contact housing exhaust gas recirculation	999	Next
12	3D0973703	Flat contact housing with contact locking mechanism camshaft adjuster unit compl. impulse sender oil level sensor	999	Next
13	8K0973703C	Flat contact housing with contact locking mechanism double ignition coil	999	Next
14	1J0973704	Flat contact housing with contact locking mechanism intake manifold throttle valve	999	Next
15	4H0973713	Flat contact housing with contact locking mechanism air quality sensor	999	Next
16	07P973702	Flat contact housing with contact locking mechanism injection valve	999	Next
17	1J0973722	Flat contact housing with contact locking mechanism coolant hose with valve activated charcoal container with valve	999	Next
18	1J0973724	Flat contact housing ignition coil	999	Next
19	4D0971993	Flat connector housing with contact locking mechanism pressure sensor	999	Next
20	1J0973837	Flat contact housing with contact locking mechanism harness for engine compartment	999	Next
21	N90643701	Cable tie with holder for weld pin: 10X187MM	999	Next
22	3W0971838	Cable ties hole/sheet metal thickness: 4,5X200MM 6,5 / 0,3-3MM	999	Next
23	N90698101	Bracket for corrugated pipe 22	999	Next
25	6R0971858K	Retaining plate wiring set for three-phase alternator	999	Next
26	6R0971858E	Retaining plate coupling st. connector housing lambda probe	999	Next
26	03C971858A	Cable holder thermostat	999	Next

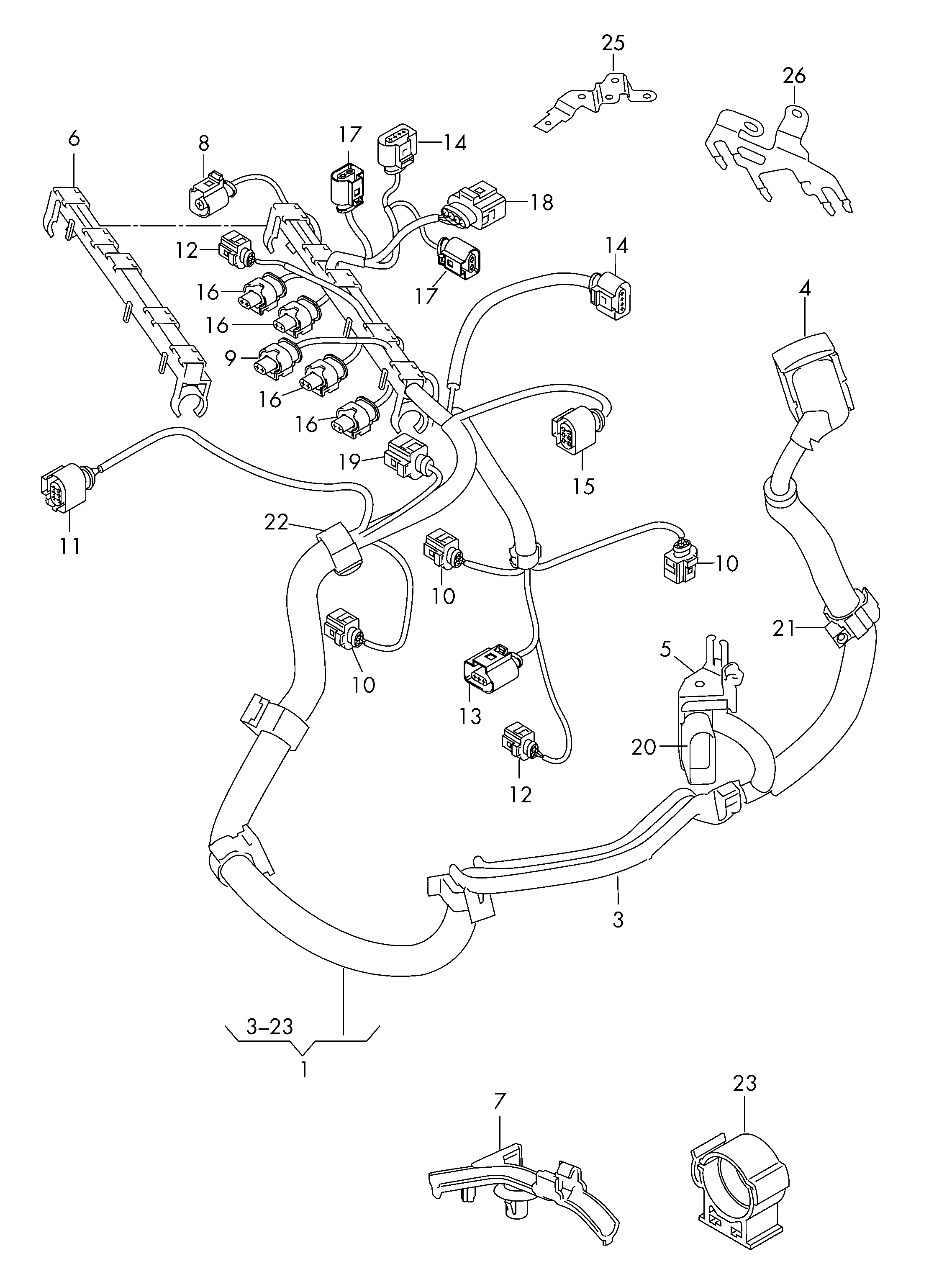

Scheme Wiring set for engine CBZB Volkswagen Polo 2013-2017 EUR
