Wiring set for engine CBZB, CBZA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C972619CE	Wiring set for engine	999	Next
1	03C972619CF	Wiring set for engine	999	Next
1	03C972619CG	Wiring set for engine	999	Next
1	03C972619CJ	Wiring set for engine	999	Next
1	03C972619CK	Wiring set for engine	999	Next
1	03C972619CL	Wiring set for engine	999	Next
1	03C972619DD	Wiring set for engine	999	Next
1	03C972619DE	Wiring set for engine	999	Next
2	3C0906379	Flat contact housing with contact locking mechanism control unit	999	Next
3	036971047B	Cable guide connection piece ignition coil with spark plug connector	999	Next
3B	03C937073	Clip cable guide	999	Next
4	1J0971798C	Sealing tape 220X60X4	999	Next
5	03C971824A	Cable guide	999	Next
6	03C971824F	Cable guide injection valve	999	Next
6	03C971824G	Cable guide injection valve	999	Next
-	03C937073	Clip cable guide 03C 971 824 G	999	Next
6A	6H0971921B	Protective cap	999	Next
7	4D0971992	Flat connector housing with contact locking mechanism injection valve	999	Next
7	4D0971992	Flat connector housing with contact locking mechanism injection valve	999	Next
7	07P973702	Flat contact housing with contact locking mechanism injection valve	999	Next
8	4D0971992A	Flat connector housing with contact locking mechanism valve fuel metering valve	999	Next
9	4D0971993	Flat connector housing with contact locking mechanism high-pressure sensor	999	Next
9	4H0973702A	Flat contact housing high pressure pump	999	Next
10	1J0973081	Flat contact housing with contact locking mechanism oil pressure sender	999	Next
11	8K0973702	Flat contact housing with contact locking mechanism temperature sensor knock sensor operating valve camshaft	999	Next
12	8K0973703	Flat contact housing with contact locking mechanism impulse sender camshaft	999	Next
12	8K0973703C	Flat contact housing with contact locking mechanism impulse sender crankshaft for vehicles with start-stop	999	Next
12	8K0973703F	Flat contact housing with contact locking mechanism impulse sender crankshaft for vehicles without start-stop operation	999	Next
13	8K0973704	Flat contact housing with contact locking mechanism pressure sensor	999	Next
14	8K0973705	Flat contact housing with contact locking mechanism control flap	999	Next
15	4H0973713	Flat contact housing with contact locking mechanism throttle valve	999	Next
16	1J0973722	Flat contact housing with contact locking mechanism valve activated carbon filter system solenoid valve	999	Next
17	1J0973722A	Flat contact housing with contact locking mechanism deceleration cut-off valve	999	Next
19	1J0973724	Flat contact housing ignition coil with spark plug connector	999	Next
20	1J0973837	Flat contact housing with contact locking mechanism coupling element central wiring set	999	Next
21	1K0971767A	Adapter cable loom vacuum pump	999	Next
21	5K0971767	Adapter cable loom vacuum pump	999	Next
21	5K0971767A	Adapter cable loom vacuum pump	999	Next
22	1J0973733	Flat contact housing vacuum pump	999	Next
23	1J0971921N	Protective cap	999	Next
23	4B0906102	Grommet	999	Next
24	3D0971830D	Bracket for connector housing 6,5	999	Next
25	1J0973824	Flat contact housing coupling element central wiring set	999	Next
29	03C971461	Heat deflector hose 230X115	999	Next
30	1H0971615AB	Cable holder	999	Next
31	22971842	Cable holder 10MM	999	Next
32	06F971842	Cable holder	999	Next
33	1K0971858AR	Retaining bracket automatic gearbox	999	Next
34	1K0971858BP	Retaining plate starter	999	Next
34	1K0971858BE	Retaining bar gearbox	999	Next
35	1K0972825L	Guide tube also use: N 911 449 01	999	Next

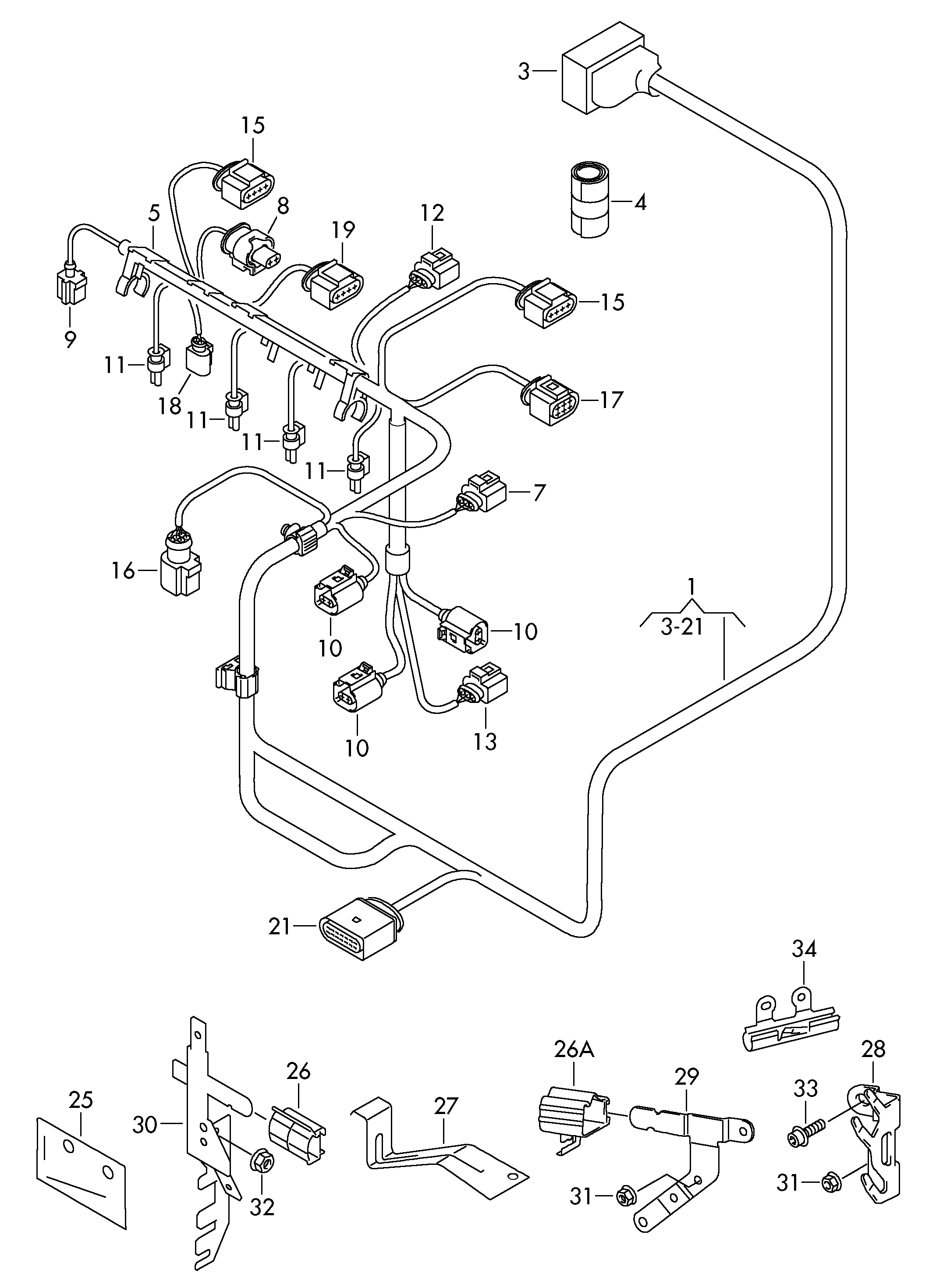

Scheme Wiring set for engine CBZB, CBZA Volkswagen Golf Plus 2012-2014 EUR
