Wiring set for engine CAVA, CAVD, CAXA, CTHA, CTHD Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C971595J	Wiring set for engine	999	Next
1	03C971595P	Wiring set for engine	999	Next
1	03C971595K	Wiring set for engine	999	Next
1	03C971595Q	Wiring set for engine	999	Next
1	03C971595R	Wiring set for engine	999	Next
1	03C971595L	Wiring set for engine	999	Next
1	07Z906379A	Flat contact housing with contact locking mechanism control unit	999	Next
1	036971047B	Cable guide connection piece ignition coil with spark plug connector	999	Next
1	1J0971798C	Sealing tape 220X60X4	999	Next
1	03C971824A	Cable guide	999	Next
1	03C971824H	Cable guide injection valve	999	Next
1	03C937073	Clip cable guide 03C 971 824 H	999	Next
1	6H0971921B	Protective cap	999	Next
1	6H0971921C	Bracket protective cover flat contact housing	999	Next
1	4D0971992	Flat connector housing with contact locking mechanism injection valve	999	Next
1	4D0971992	Flat connector housing with contact locking mechanism injection valve	999	Next
1	07P973702	Flat contact housing with contact locking mechanism injection valve	999	Next
1	4D0971992A	Flat connector housing with contact locking mechanism valve fuel metering valve	999	Next
1	4D0971993	Flat connector housing with contact locking mechanism high-pressure sensor	999	Next
1	1J0973081	Flat contact housing with contact locking mechanism oil pressure sender	999	Next
1	8K0973702	Flat contact housing with contact locking mechanism temperature sensor knock sensor operating valve camshaft	999	Next
1	8K0973703	Flat contact housing with contact locking mechanism potentiometer impulse sender camshaft	999	Next
1	8K0973703F	Flat contact housing with contact locking mechanism impulse sender crankshaft	999	Next
1	8K0973703C	Flat contact housing with contact locking mechanism impulse sender crankshaft	999	Next
1	8K0973704	Flat contact housing with contact locking mechanism pressure sensor	999	Next
1	8K0973705	Flat contact housing with contact locking mechanism control flap	999	Next
1	4H0973713	Flat contact housing with contact locking mechanism throttle valve	999	Next
1	1J0973722	Flat contact housing with contact locking mechanism valve activated carbon filter system solenoid valve	999	Next
1	1J0973722A	Flat contact housing with contact locking mechanism deceleration cut-off valve	999	Next
1	4B0973724	Flat contact housing with contact locking mechanism ignition coil with spark plug connector	999	Next
1	1J0973837	Flat contact housing with contact locking mechanism coupling element central wiring set	999	Next
1	1K0971909B	Grommet starter	999	Next
1	03C971461	Heat deflector hose 230X115	999	Next
1	1H0971615AB	Cable holder	999	Next
1	22971842	Cable holder 10MM	999	Next
1	5N0971858	Retaining plate starter	999	Next
1	5N0971858A	Retaining plate starter	999	Next
1	5N0971858A	Retaining plate starter	999	Next
1	7N0971858A	Retaining plate starter	999	Next
1	3C0971858A	Retaining plate cable guide starter	999	Next
1	5N0972825A	Guide tube for wiring set lambda probe also use: N 911 449 01	999	Next
1	N 91144901	Pop rivet 4X6	999	Next
1	N 01100840	Hexagon nut M8	999	Next

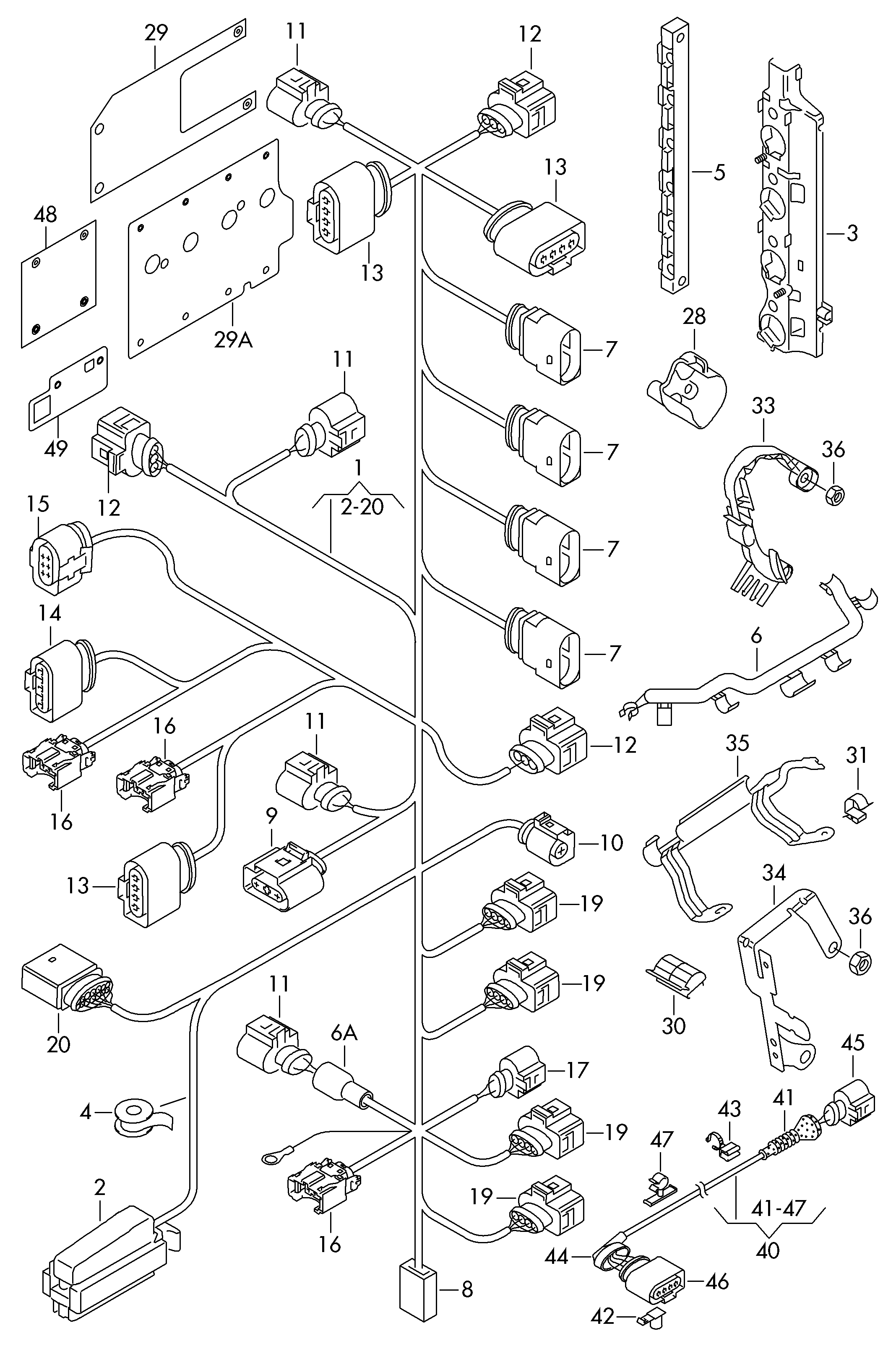

Scheme Wiring set for engine CAVA, CAVD, CAXA, CTHA, CTHD Volkswagen Tiguan 2010-2017 EUR
