Wiring set for electronically regulated air-conditioning Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K1971566AN	Wiring set for electronically regulated air-conditioning	999	Next
1	1K2971566AN	Wiring set for electronically regulated air-conditioning	999	Next
1	1J0937713A	Flat contact housing with contact locking mechanism fan motor	999	Next
1	1J0937714A	Flat contact housing with contact locking mechanism fan motor	999	Next
1	1K0972704C	Flat contact housing connection piece heater element for electr. auxiliary air heater	999	Next
1	1K0972928	Flat contact housing with contact locking mechanism display and control unit	999	Next
1	1K0972928A	Flat contact housing display and control unit	999	Next
1	6Q0972706	Flat contact housing with contact locking mechanism connection piece servomotor	999	Next
1	1J0972923	Flat contact housing with contact locking mechanism connection piece temperature sensor	999	Next
1	1J0971972	Flat connector housing connection piece temperature sensor	999	Next
1	1J0972785	Flat contact housing with contact locking mechanism coupling element central wiring set	999	Next
1	3D0971838M	Cable tie with terminal socket 4,6X200	999	Next

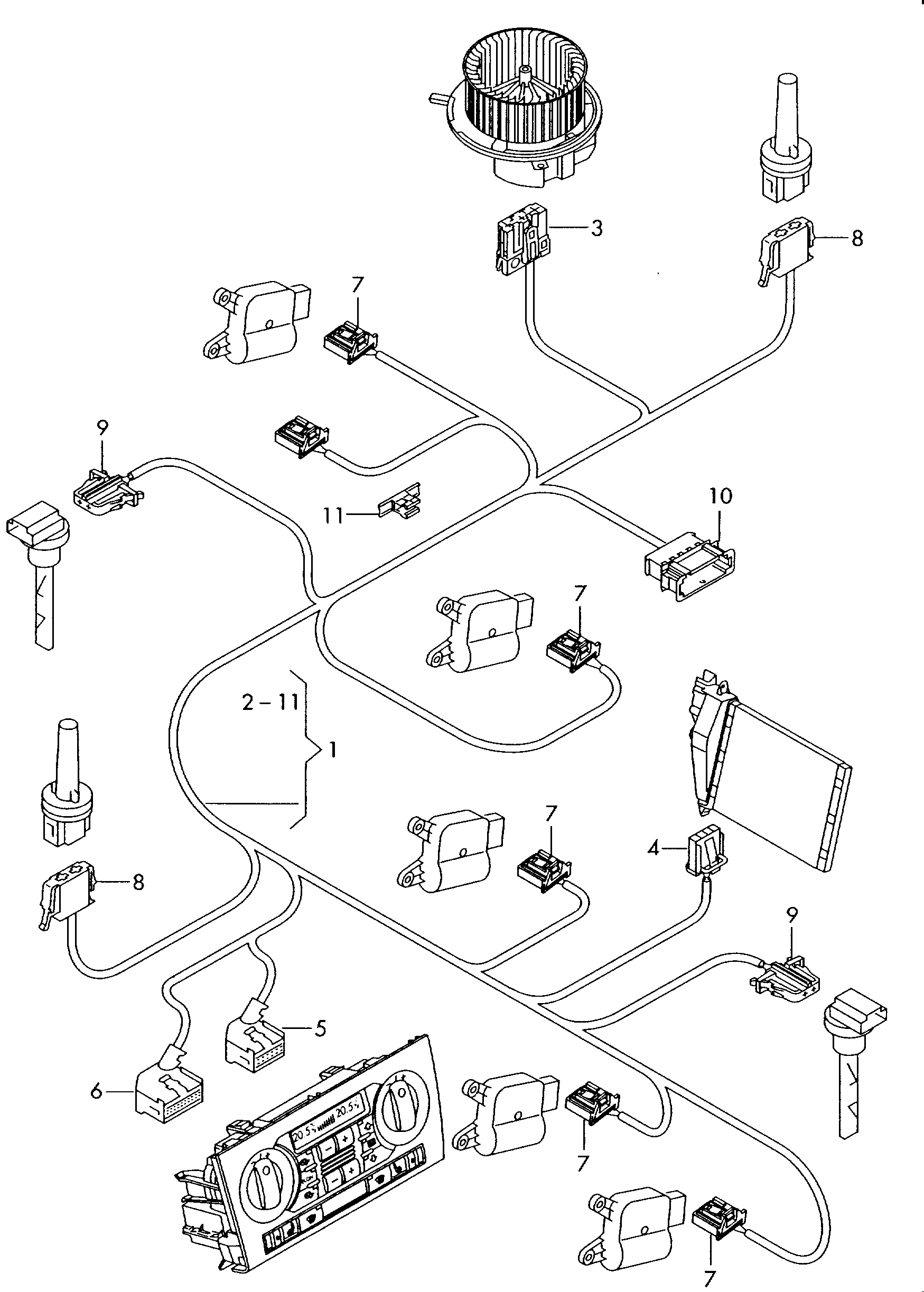

Scheme Wiring set for electronically regulated air-conditioning Volkswagen Tiguan 2010-2017 EUR
