Wiring set for electric, engine preheater lhd CKMA Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0965539	Adapter cable loom	999	Next
10	3C8965531	Wiring set for electric engine preheater, before 07.11.2011	999	Next
10	3AA965531	Wiring set for electric engine preheater, D 07.11.2011 and after	999	Next
11	71973751	Flat contact housing with contact locking mechanism	999	Next
12	N10732401	Corrugated pipe in coils of 5m 'order unit 5' temperature resistant: 4,5 40C/+130C	999	Next
13	N90681901	Corrugated pipe end piece 4,5	999	Next
14	N0209022	Cable ties 3,6X246	999	Next
15	5M0971838A	Cable tie with terminal socket with side cable guide toothed quadrant for bridge strength: cable ties 4,6X200MM 13MM	999	Next
16	3AA971865	Retaining frame	999	Next
17	3AA971866	Retaining frame	999	Next
18	1K0971800	Clip	999	Next
19	N10467401	Bracket 17X33	999	Next

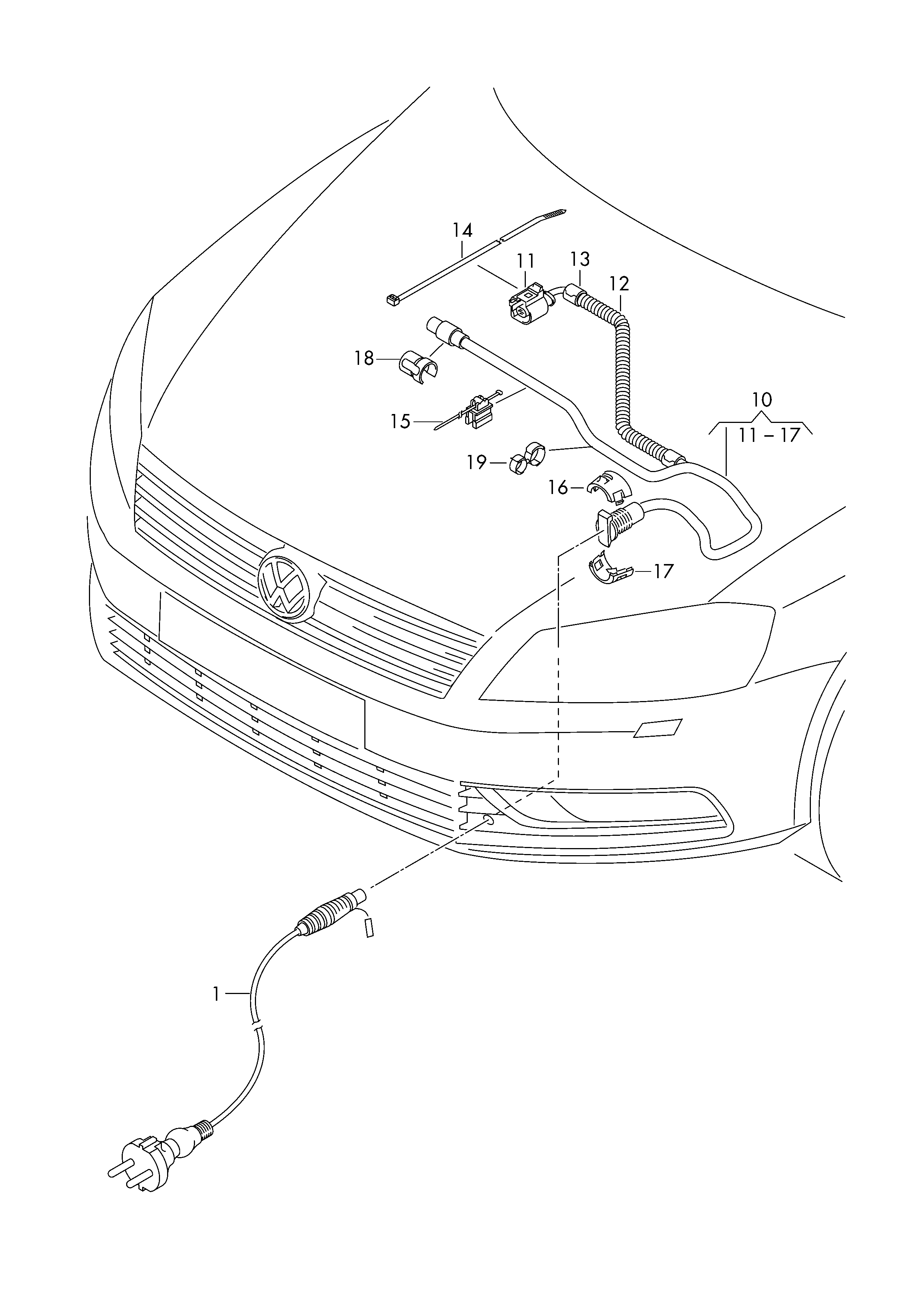

Scheme Wiring set for electric, engine preheater lhd CKMA Volkswagen Passat CC Coupe 2009-2012 EUR
