Wiring set for door Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N1971120K	Wiring set for door	999	Next
1	5N1971120L	Wiring set for door digital sound system dsp	999	Next
1	5N2971120B	Wiring set for door	999	Next
1	5N2971120C	Wiring set for door digital sound system dsp	999	Next
1	5N1971120AS	Wiring set for door for vehicles with sound system	999	Next
1	5N1971120R	Wiring set for door for vehicles with kessy (access and start auth.)	999	Next
1	5N1971120S	Wiring set for door digital sound system dsp for vehicles with kessy (access and start auth.)	999	Next
1	5N2971120F	Wiring set for door for vehicles with kessy (access and start auth.)	999	Next
1	5N2971120G	Wiring set for door digital sound system dsp for vehicles with kessy (access and start auth.)	999	Next
1	5N1971120BA	Wiring set for door for vehicles with sound system for vehicles with kessy (access and start auth.)	999	Next
1	5N1971121AB	Wiring set for door for models with radio remote control central locking system	999	Next
1	5N1971121AB	Wiring set for door for vehicles with remote operated central locking and safe secure mode	999	Next
1	5N1971121AC	Wiring set for door for vehicles with remote operated central locking and safe secure mode digital sound system dsp	999	Next
1	5N1971121AD	Wiring set for door for models with radio remote control central locking system	999	Next
1	5N1971121AE	Wiring set for door for models with radio remote control central locking system digital sound system dsp	999	Next
1	5N1971121CP	Wiring set for door for models with radio remote control central locking system for vehicles with sound system	999	Next
1	5N2971121B	Wiring set for door	999	Next
1	5N2971121C	Wiring set for door digital sound system dsp	999	Next
1	5N1971121AK	Wiring set for door for vehicles with kessy (access and start auth.)	999	Next
1	5N1971121AL	Wiring set for door for vehicles with kessy (access and start auth.) digital sound system dsp	999	Next
1	5N1971121AM	Wiring set for door for vehicles with kessy (access and start auth.) digital sound system dsp	999	Next
1	5N1971121AN	Wiring set for door for vehicles with kessy (access and start auth.) digital sound system dsp	999	Next
1	5N1971121CQ	Wiring set for door for vehicles with kessy (access and start auth.) for vehicles with sound system	999	Next
1	5N2971121F	Wiring set for door for vehicles with kessy (access and start auth.)	999	Next
1	5N2971121G	Wiring set for door digital sound system dsp for vehicles with kessy (access and start auth.)	999	Next
1	1K0937702C	Flat contact housing with contact locking mechanism coupling element a-pillar	999	Next
1	1K0941907	Grommet door	999	Next
1	5N0959843B	Bellows door	999	Next
1	1K0971818	Cable ties gasket for base plate hole/sheet metal thickness: toothed quadrant 4,6X160 6,5 / 0,6-1,8	999	Next
1	5M0971838A	Cable tie with terminal socket with side cable guide for bridge strength: toothed quadrant (clamp base, rotating) 4,6X200 1-3MM	999	Next
1	8Z0971848F	Bracket for connector housing	999	Next
1	1Z0971913	Grommet 36,7/4,5	999	Next
1	6K0971921A	Bracket protective cover flat contact housing	999	Next
1	1K0971975	Flat contact housing with contact locking mechanism door control unit	999	Next
1	4B0972623	Flat contact housing with contact locking mechanism led light	999	Next
1	1K0972704G	Flat contact housing safety switch for central locking system	999	Next
1	1K0972704C	Flat contact housing switch for electric window regulator (passenger side)	999	Next
1	3C0973704	Flat contact housing with contact locking mechanism for vehicles with kessy (access and start auth.)	999	Next
1	1J0971921L	Protective cap flat contact housing 1J0 972 704 C	999	Next
1	6Q0972706A	Flat contact housing with contact locking mechanism switch for electric adjustable and heated exterior mirrors	999	Next
1	3B0972712	Flat connector housing with contact locking mechanism loudspeaker	999	Next
1	1K0972776	Flat contact housing with contact locking mechanism switch for electric window regulator	999	Next
1	5N0972822	Cable holder	999	Next
1	1J0972923	Flat contact housing with contact locking mechanism bass loudspeaker	999	Next
1	1J0972977G	Flat contact housing with cap door control unit	999	Next
1	1J0973119	Flat contact housing with contact locking mechanism led, flashing	999	Next
1	8K0973323T	Flat contact housing with contact locking mechanism lateral acceleration sensor -crashsensor-	999	Next
1	1J0973714	Flat contact housing door lock (passenger side)	999	Next
1	1J0973715	Flat contact housing with contact locking mechanism door lock (drivers side)	999	Next
1	N 10662201	Cable ties toothed quadrant 4,6X377	999	Next

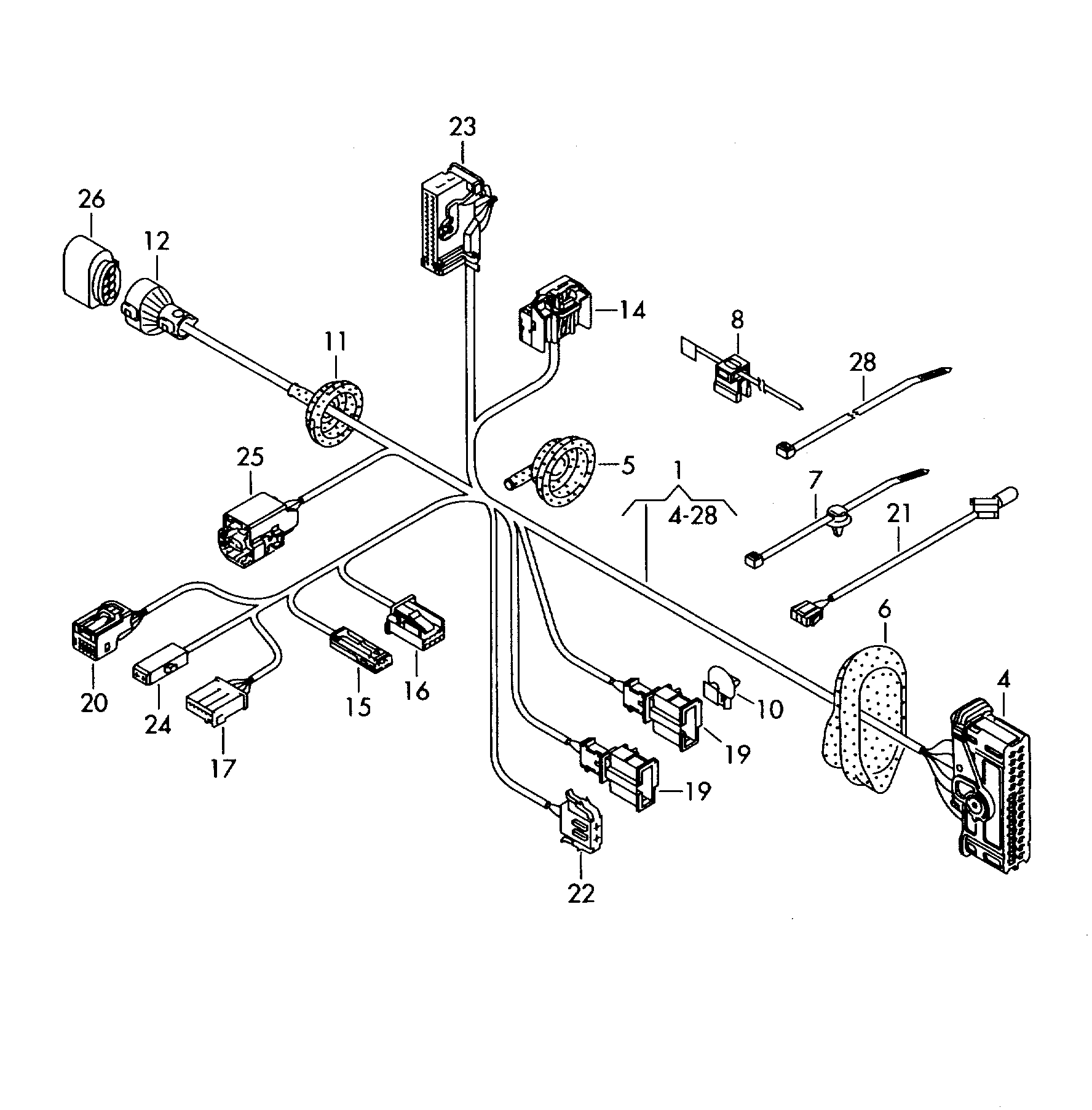

Scheme Wiring set for door Volkswagen Tiguan 2010-2017 EUR
