Wiring set for door Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5M1971120BH	Wiring set for door for vehicles with 4 or 8 loudspeakers	999	Next
1	5M1971120BJ	Wiring set for door for models with 10 loudspeakers	999	Next
1	5M1971120BK	Wiring set for door digital sound system dsp	999	Next
1	5M2971120BF	Wiring set for door for vehicles with 4 or 8 loudspeakers (drivers side)	999	Next
1	5M2971120BG	Wiring set for door for models with 10 loudspeakers PR-8RW	999	Next
1	5M2971120BH	Wiring set for door for vehicles with digital sound system dsp	999	Next
1	5M1971121AT	Wiring set for door for vehicles with 4 or 8 loudspeakers	999	Next
1	5M1971121BA	Wiring set for door for models with 10 loudspeakers	999	Next
1	5M1971121BB	Wiring set for door digital sound system -dsp-	999	Next
1	5M2971121AR	Wiring set for door for vehicles with 4 or 8 loudspeakers	999	Next
1	5M2971121AS	Wiring set for door for models with 10 loudspeakers	999	Next
1	5M2971121AT	Wiring set for door for vehicles with digital sound system -dsp-	999	Next
3	1K0937702C	Flat contact housing with contact locking mechanism coupling element a-pillar	999	Next
4	1K0941907	Grommet door	999	Next
5	1K0959843C	Bellows with retaining frame	999	Next
6	8Z0971848F	Bracket for connector housing driver and passenger door	999	Next
7	6K0971921A	Bracket protective cover flat contact housing	999	Next
8	1K0971975	Flat contact housing with contact locking mechanism connection piece door control unit	999	Next
10	1J0972977G	Flat contact housing with cap connection piece door control unit (passenger side)	999	Next
11	8K0973323T	Flat contact housing with contact locking mechanism pressure sensor side airbag unit	999	Next
12	1T0972703	Flat contact housing with contact locking mechanism mid tone/treble loudspeaker	999	Next
14	1J0972704	Flat contact housing mid-range bass speaker	999	Next
15	1K0972704G	Flat contact housing safety switch for central locking	999	Next
15	1K0972704C	Flat contact housing pushbutton for tailgate and fuel tank flap operation	999	Next
16	6Q0972706A	Flat contact housing with contact locking mechanism switch for electric adjustable and heated exterior mirrors	999	Next
18	3B0972712	Flat connector housing with contact locking mechanism treble speaker	999	Next
19	1J0973119	Flat contact housing with contact locking mechanism led light	999	Next
20	6Q0972726	Flat contact housing with contact locking mechanism connection piece frequency junction	999	Next
21	1J0973715	Flat contact housing with contact locking mechanism connection piece door lock	999	Next
22	1K0972776	Flat contact housing with contact locking mechanism central connector for electric window regulators (drivers side)	999	Next
23	3B0972732	Flat contact housing treble speaker	999	Next
24	3C0973704	Flat contact housing with contact locking mechanism aerial for access and start authorisation (kessy)	999	Next
25	N10662201	Cable ties toothed quadrant 4,6X377	999	Next
26	1K0971818	Cable ties gasket for base plate hole/sheet metal thickness: toothed quadrant 4,6X160 6,5 / 0,6-1,8	999	Next
27	8P4971843	Cable holder with seal hole/sheet metal thickness: 6,5X10/0,6-2MM	999	Next

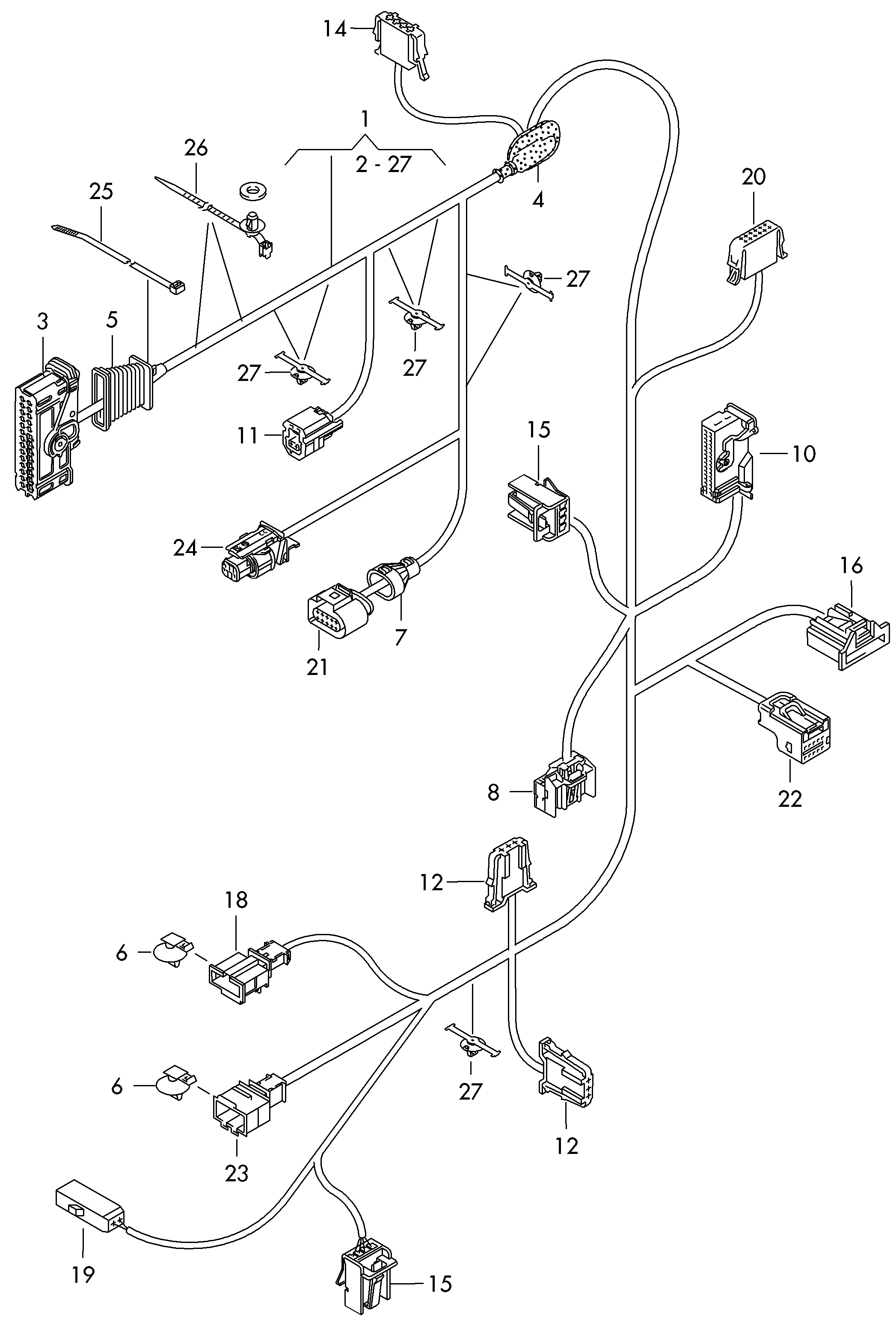

Scheme Wiring set for door Volkswagen Golf Plus 2012-2014 EUR
