Wiring set for door rear Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5M0971693AS	Wiring set for door	999	Next
1	5M0971694AS	Wiring set for door	999	Next
5	1K0937702C	Flat contact housing with contact locking mechanism coupling element b-pillar	999	Next
5A	1K0941907	Grommet door	999	Next
6	1J0959383B	Flat contact housing with gasket connection piece door control unit	999	Next
7	1K0959843C	Bellows with retaining frame	999	Next
8	5M0971615F	Cable guide door	999	Next
8	5M0971616	Cable guide door	999	Next
9	1K0971818	Cable ties gasket for base plate hole/sheet metal thickness: 4,6X160 6,5 / 0,6-1,8	999	Next
11	1J0971921L	Protective cap flat contact housing 1J0 973 714	999	Next
12	1J0971972	Flat connector housing treble speaker	999	Next
13	1J0972704	Flat contact housing bass loudspeaker	999	Next
14	1K0972704C	Flat contact housing switch for electric window regulator	999	Next
15	1J0973714	Flat contact housing door lock	999	Next

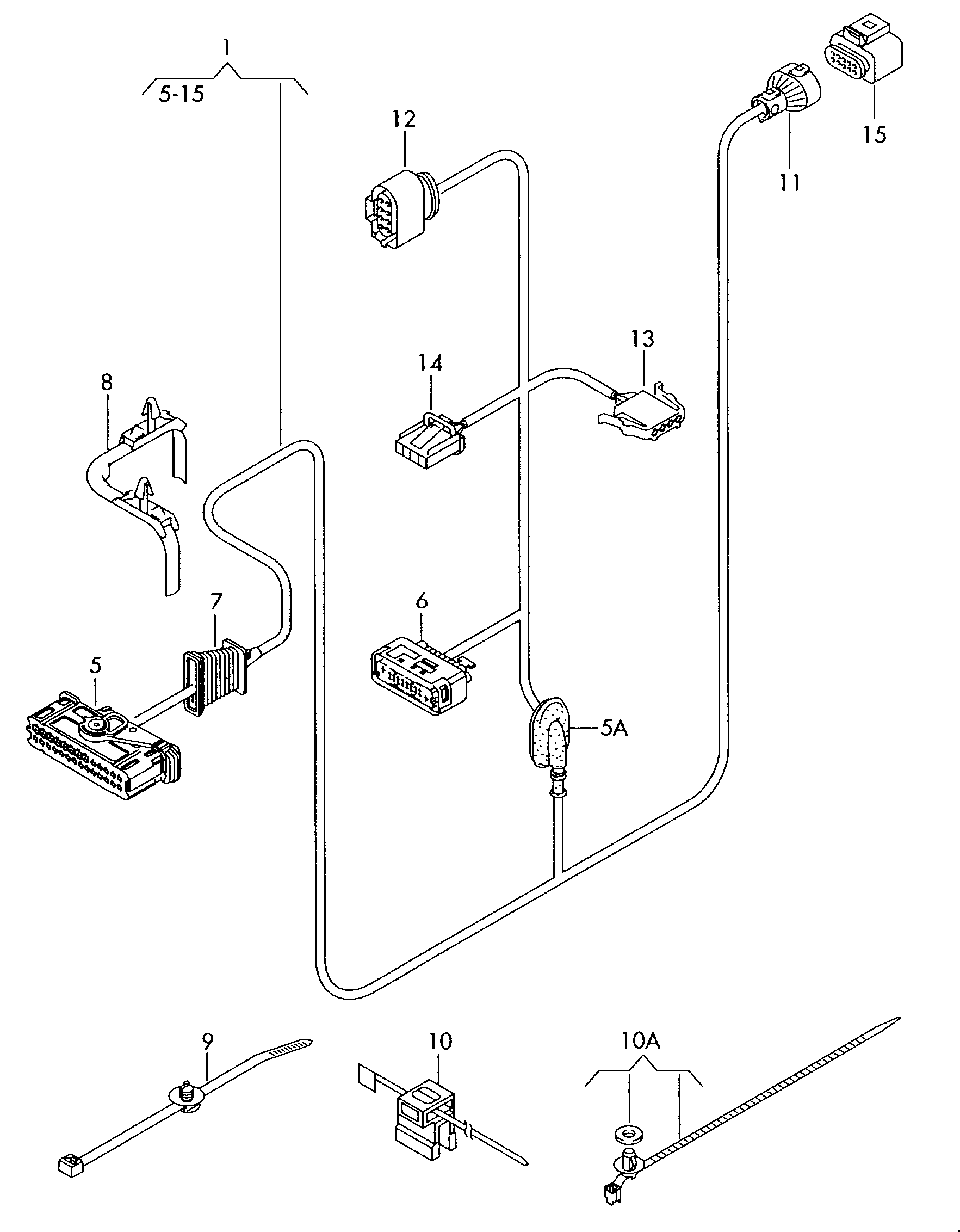

Scheme Wiring set for door rear Volkswagen Golf Plus 2012-2014 EUR
