Wiring set for bumper for vehicles with parking, aid rear Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	6RU971065	Wiring set for bumper for vehicles with parking aid	999	Next
1	6R0971065	Wiring set for bumper for vehicles with parking aid	999	Next
1	6RU971065D	Wiring set for bumper for vehicles with parking aid	999	Next
1	6C0971065	Wiring set for bumper for vehicles with parking aid	999	Next
3	8E0972112	Flat contact housing with contact locking mechanism control unit for parking aid	999	Next
3	3B0973813	Flat connector housing with contact locking mechanism coupling st. connector housing	999	Next
4	1J0971913A	Grommet 39,7/4,5	999	Next
5	4H0973703	Flat contact housing with contact locking mechanism ultrasound sensor	999	Next
6	3D0971838M	Cable tie with terminal socket for bridge strength: (clamp base, rotating) 4,6X200 1-3MM	999	Next
6	N90937702	Cable ties toothed quadrant use if required: 4,6X193 000 971 010 A	999	Next
7	000971010A	Retaining plate for cable binder (self-adhesive) use if required: 27X27MM N 909 377 02 000 971 010 A	999	Next
8	1J0971930K	Bracket	999	Next
9	3D0971497B	Bracket for connector housing	999	Next

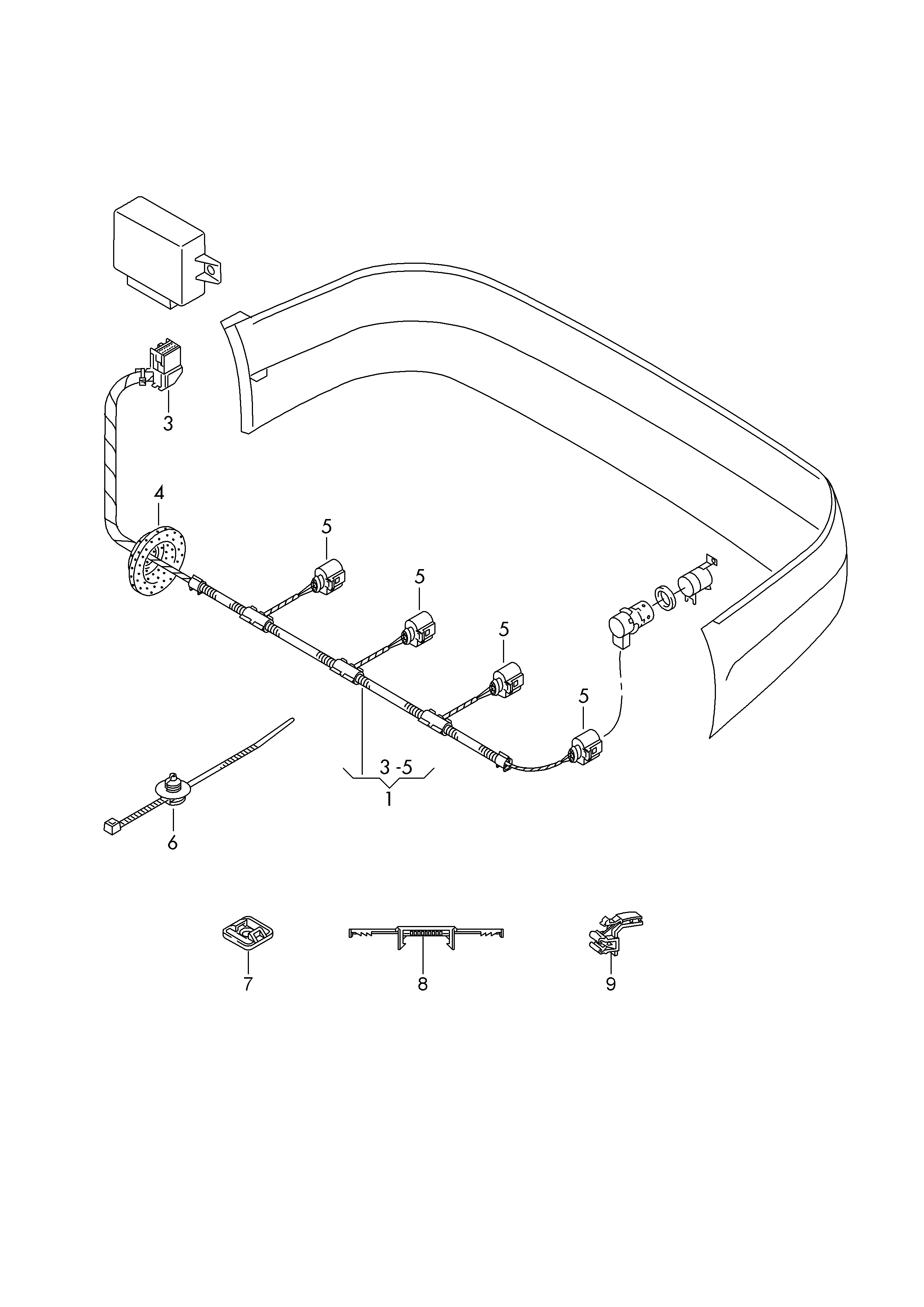

Scheme Wiring set for bumper for vehicles with parking, aid rear Volkswagen Polo 2013-2017 EUR
