Wiring set for battery +/-, wiring set for three-phase alternator, earth line for vehicles with start-stop Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0971349BJ	Wiring set for three-phase alternator	999	Next
1	1K0971349BK	Wiring set for three-phase alternator for vehicles with air condit.	999	Next
1	1K0971349A	Wiring set for three-phase alternator	999	Next
1	1K0971349B	Wiring set for three-phase alternator for vehicles with air condit.	999	Next
1	1K0971349AC	Wiring set for three-phase alternator	999	Next
1	1K0971349AD	Wiring set for three-phase alternator for vehicles with air condit.	999	Next
1	1K0971349BN	Wiring set for three-phase alternator	999	Next
1	1K0971349BP	Wiring set for three-phase alternator for vehicles with air condit.	999	Next
1	1K0971349JT	Wiring set for three-phase alternator	999	Next
1	1K0971349JS	Wiring set for three-phase alternator for vehicles with air condit.	999	Next
1	1K0971349CE	Wiring set for three-phase alternator	999	Next
1	1K0971349CF	Wiring set for three-phase alternator for vehicles with air condit.	999	Next
1	1K0971349AL	Wiring set for three-phase alternator	999	Next
1	1K0971349AM	Wiring set for three-phase alternator for vehicles with air condit.	999	Next
1	1K0971349BS	Wiring set for three-phase alternator	999	Next
1	1K0971349BT	Wiring set for three-phase alternator for vehicles with air condit.	999	Next
1	1K0971349DG	Wiring set for three-phase alternator	999	Next
1	1K0971349DH	Wiring set for three-phase alternator for vehicles with air condit.	999	Next
1	1K0971349DJ	Wiring set for three-phase alternator	999	Next
1	1K0971349DK	Wiring set for three-phase alternator for vehicles with air condit.	999	Next
1	1K0971349JN	Wiring set for three-phase alternator	999	Next
1	1K0971349JP	Wiring set for three-phase alternator for vehicles with air condit.	999	Next
3	1J0906029A	Bracket for connector housing	999	Next
4	4B0971848	Cable holder hole/sheet metal thickness: 6,5/0,6-3MM	999	Next
5	30971921	Bracket protective cover	999	Next
6	1J0973702	Flat contact housing with contact locking mechanism	999	Next
6A	03L971461B	Heat insulation coupling element a/c compressor 157X80MM	999	Next
7	1J0973772	Flat connector housing with contact locking mechanism	999	Next
8	1J0973702A	Flat contact housing with contact locking mechanism	999	Next
9	1J0973704	Flat contact housing with contact locking mechanism	999	Next
10	3D0971838N	Cable ties 4,5X200	999	Next
20	1K0971228L	Wiring set for battery +	999	Next
20	1K0971228M	Wiring set for battery +	999	Next
20	1K0971228T	Wiring set for battery +	999	Next
30	5N0971235A	Wiring set for battery -	999	Next
31	1K0971360C	Bracket wiring set for battery -	999	Next
40	1K0971250	Earth line	999	Next
40	1K0971250L	Earth line	999	Next
40	1K0971250AG	Earth line	999	Next
40	1K0971250AN	Earth line	999	Next
40	1K0971250AP	Earth line	999	Next
41	N01508210	Hexagon collar nut connection piece earth line M6	999	Next
42	N0138044	O-ring A6X10	999	Next

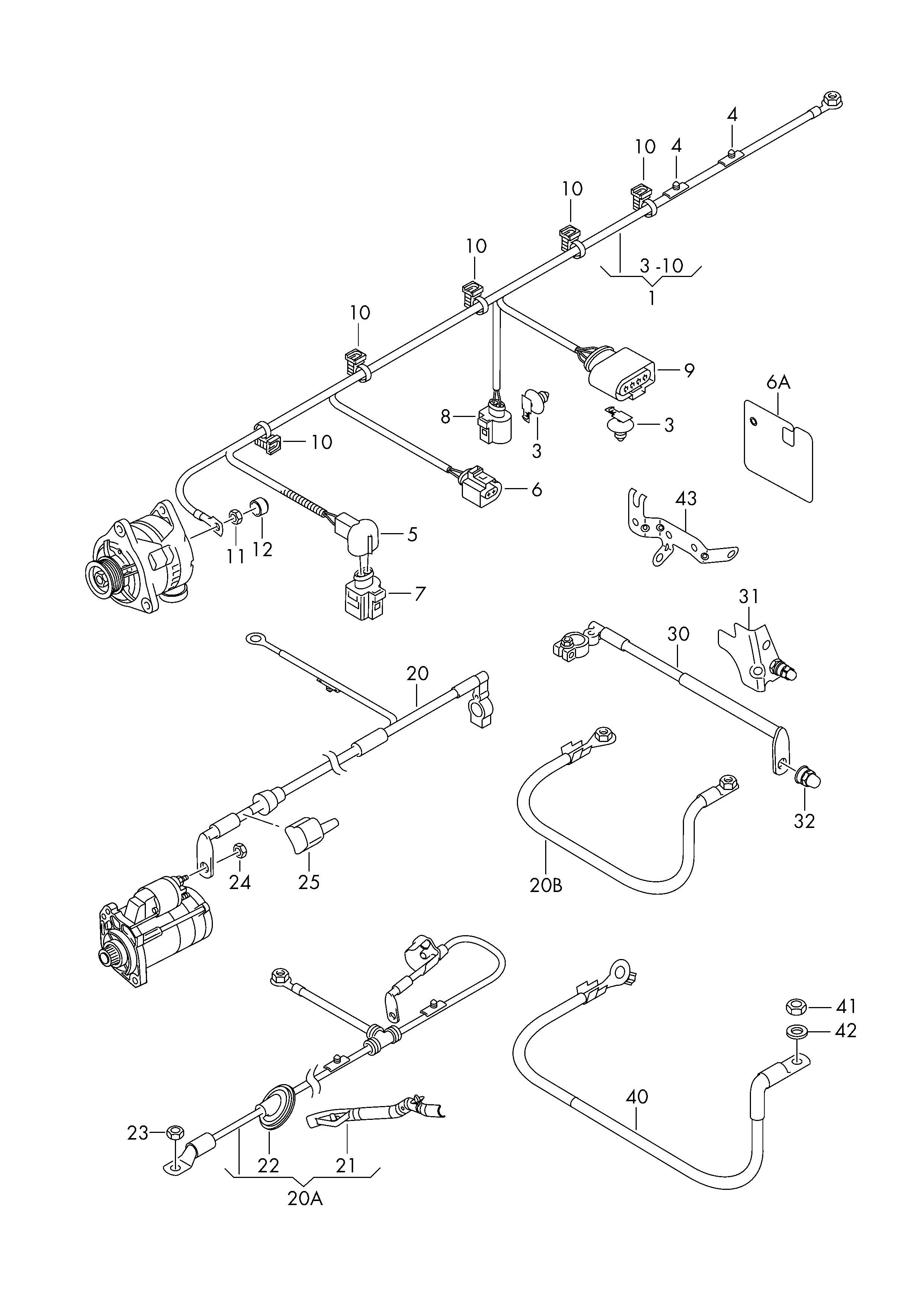

Scheme Wiring set for battery +/-, wiring set for three-phase alternator, earth line for vehicles with start-stop Volkswagen Golf Plus 2012-2014 EUR
