Wiring set for battery, and 3-phase alternator, wiring set for battery, earth line Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	6R0971349CG	Wiring set for three-phase alternator	999	Next
1	6R0971349GG	Wiring set for three-phase alternator	999	Next
2	6R0971228AF	Wiring set for battery + with cable crosssection: 750MM 16	999	Next
2	6R0971228F	Wiring set for battery + with cable crosssection: 430MM 25	999	Next
3	8D0973822	Flat connector housing with contact locking mechanism central wiring set	999	Next
3	3D0973824F	Flat contact housing coupling st. connector housing central wiring set	999	Next
4	6X0973802A	Flat contact housing with contact locking mechanism central wiring set	999	Next
5	1J0973722	Flat contact housing with contact locking mechanism a/c compressor	999	Next
6	4D0971992	Flat connector housing with contact locking mechanism alternator	999	Next
7	N90682701	Corrugated pipe end piece 22	999	Next
8	N10732901	Corrugated pipe in coils of 5m 'order unit 5' 22 -40C/+130C	999	Next
9	N90643701	Cable tie with holder for weld pin: 10X187 5MM	999	Next
10	N10732701	Corrugated pipe in coils of 5m 'order unit 5' 13 -40C/+130C	999	Next
11	N90682201	Corrugated pipe end piece 13	999	Next
12	N90697901	Bracket for corrugated pipe 13	999	Next
13	N90702001	Corrugated tube joiner with side opening 13X13X8,5	999	Next
14	N90681901	Corrugated pipe end piece 4,5	999	Next
15	N10732401	Corrugated pipe in coils of 5m 'order unit 5' temp. resistant: 4,5 -40C/+130C	999	Next
20	6R0971235C	Wiring set for battery	999	Next
25	6R0971537E	Earth line with cable crosssection: 190MM 25	999	Next
-	N10435508	Collar nut	999	Next

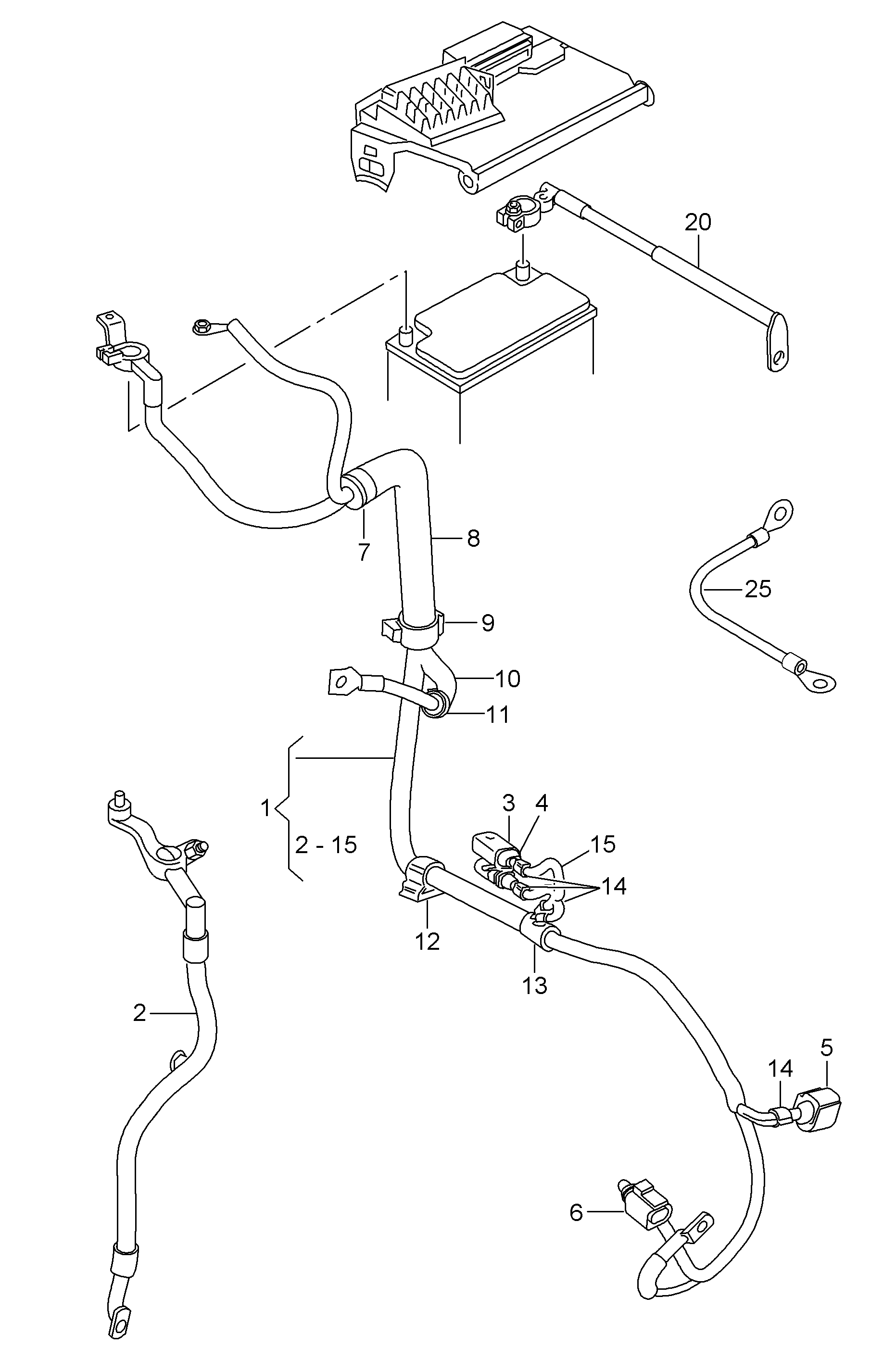

Scheme Wiring set for battery, and 3-phase alternator, wiring set for battery, earth line Volkswagen Polo 2013-2017 EUR
