Wiring set for air-conditioning actuation Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5K1971566L	Wiring set for air-conditioning actuation	999	Next
1	5K1971566A	Wiring set for air-conditioning actuation	999	Next
1	5K1971566N	Wiring set for air-conditioning actuation	999	Next
1	5K1971566B	Wiring set for air-conditioning actuation	999	Next
1	5K2971566F	Wiring set for air-conditioning actuation	999	Next
2	1K1971566AN	Wiring set for electronically regulated air-conditioning	999	Next
2	1K2971566AN	Wiring set for electronically regulated air-conditioning	999	Next
4	3D0971838M	Cable tie with terminal socket 4,6X200	999	Next
5	8D0937731A	Flat contact housing with retainer guide fan motor for vehicles with electroni- cally regulated air condit.	999	Next
7	1Y0971838	Cable tie with terminal socket with side cable guide for bridge strength: toothed quadrant (clamp base, rotating) 4,6X200 1-3MM	999	Next
8	8L0971838	Cable tie with holder for plastic pin: 5X300 5	999	Next
9	1J0971972	Flat connector housing temperature sensor	999	Next
10	1J0972923	Flat contact housing with contact locking mechanism temperature sensor	999	Next
10A	1K0972704C	Flat contact housing for vehicles with additional electric air heater	999	Next
11	6Q0972706	Flat contact housing with contact locking mechanism control flap for recirculated air operation possibility control flap defroster flap	999	Next
12	1J0972752	Flat contact housing fan motor	999	Next
13	1J0972754	Flat contact housing series resistance for fresh air and hot air blower	999	Next
14	1J0972755	Flat contact housing display and control panel with control unit for manually controlled air conditioning	999	Next
15	1J0972785	Flat contact housing with contact locking mechanism coupling element wiring harness for interior	999	Next
16	1K0972928	Flat contact housing with contact locking mechanism display and control panel with control unit for manually controlled air conditioning control and display panel for air-conditioning system climatronic	999	Next
17	1K0972928A	Flat contact housing control and display panel for air-conditioning system climatronic	999	Next

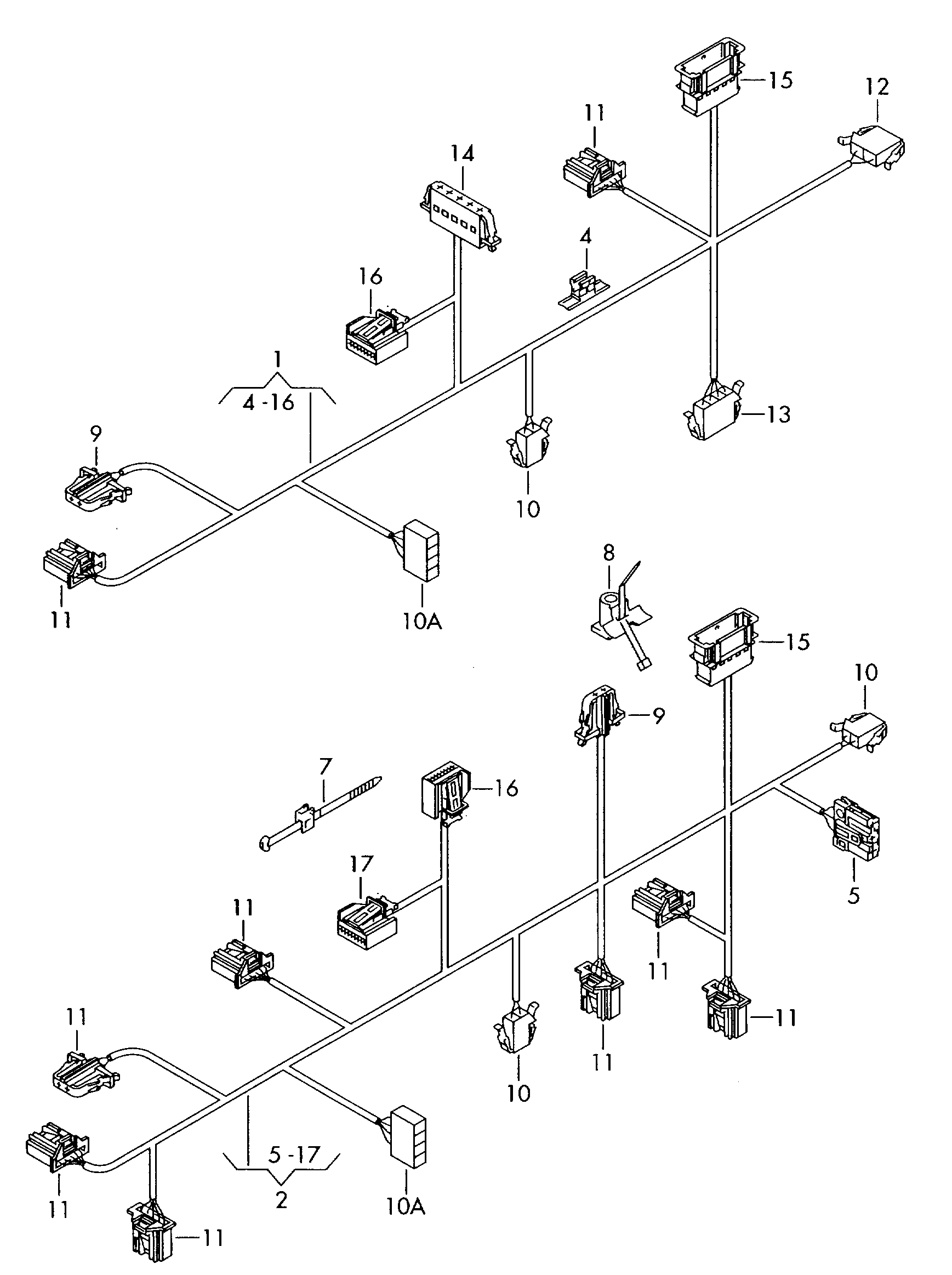

Scheme Wiring set for air-conditioning actuation Volkswagen Golf Plus 2012-2014 EUR
