Wiring harness for heater controls Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1T1971566M	Wiring harness for heater controls	999	Next
1	1T2971566M	Wiring harness for heater controls	999	Next
1	1J0972752	Flat contact housing connection piece fan motor	999	Next
1	1J0972755	Flat contact housing connection piece fresh air and heater controls	999	Next
1	6Q0972706	Flat contact housing with contact locking mechanism connection piece positioning motor for recirculated air operation	999	Next
1	1J0972754	Flat contact housing connection piece series resistor	999	Next
1	1J0972785	Flat contact housing with contact locking mechanism coupling element central wiring set	999	Next
1	5M0971838A	Cable tie with terminal socket 4,6X200	999	Next
1	3D0971838	Cable tie with holder for plastic pin: 5X200 5	999	Next
1	3D0971838M	Cable tie with terminal socket 4,6X200	999	Next
1	1Q0971478A	Wiring harness for additional heater PTC	999	Next
1	1Q0971478B	Wiring harness for additional heater for vehicles with additional electric air heater PTC	999	Next

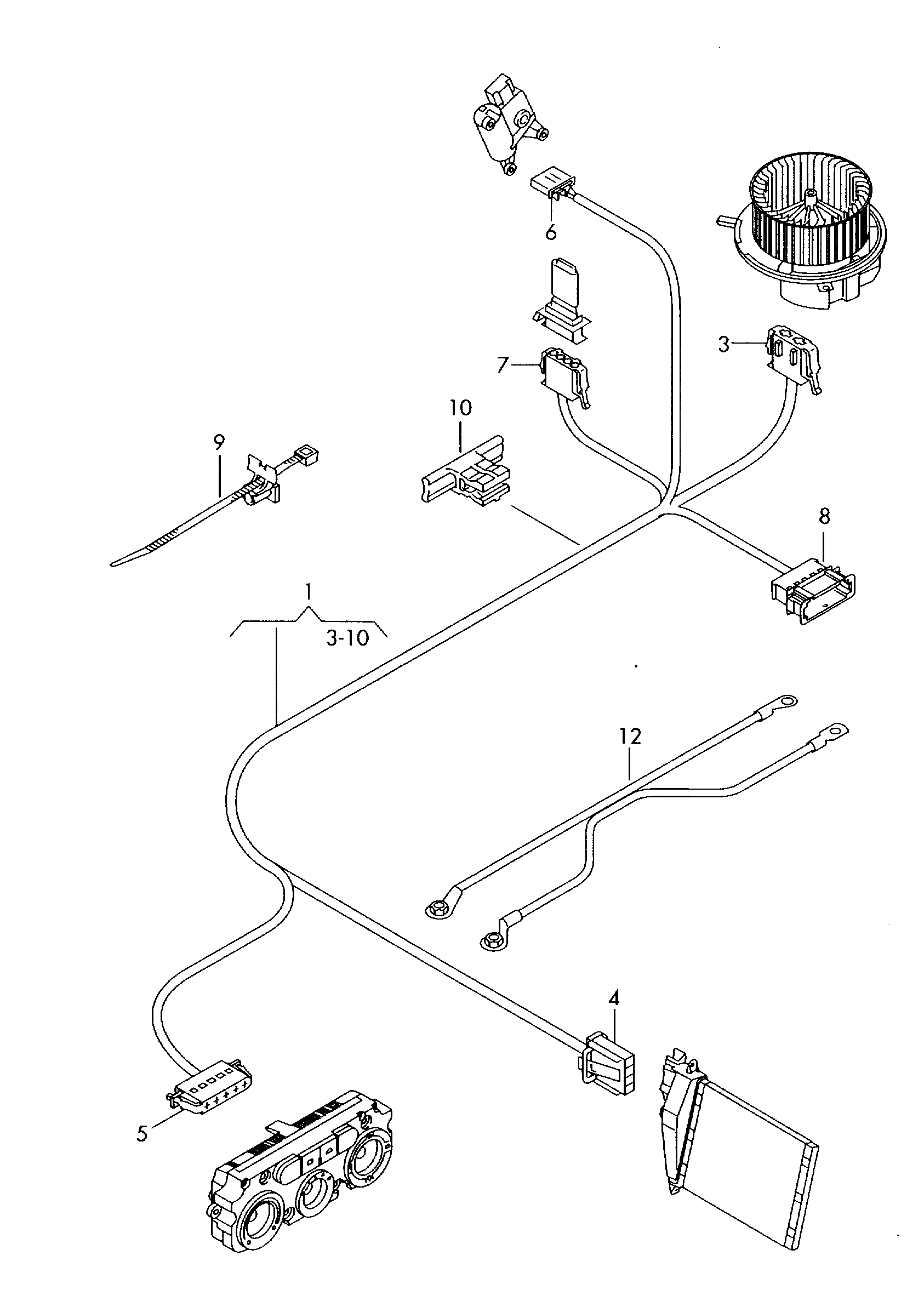

Scheme Wiring harness for heater controls Volkswagen Tiguan 2010-2017 EUR
