Wiring harness for heater controls Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	6R2971566N	Wiring harness for heater controls for vehicles with air condit.	999	Next
1	6R2971566AC	Wiring harness for heater controls for vehicles with air condit.	999	Next
1	6R2971566AD	Wiring harness for heater controls for vehicles with air condit.	999	Next
2	6Q0937714	Flat contact housing with contact locking mechanism fresh air and heater controls for vehicles with manually regulated air conditioner	999	Next
2	8E0972420	Flat contact housing with contact locking mechanism for vehicles with electroni- cally regulated air condit.	999	Next
3	6Q0972706	Flat contact housing with contact locking mechanism servomotor temperature regulating flap defroster flap servomotor for middle vent	999	Next
3	6Q0972706	Flat contact housing with contact locking mechanism servomotor for recirculated air operation possibility	999	Next
4	1J0972923	Flat contact housing with contact locking mechanism temperature sensor	999	Next
5	1H0972702A	Flat contact housing temperature sensor footwell vent temperature sensor passenger comp. ventilation	999	Next
6	1J0972752	Flat contact housing fan motor	999	Next
7	1J0972754	Flat contact housing series resistor	999	Next
8	1J0972755	Flat contact housing fresh air and heater controls	999	Next
9	1J0972785	Flat contact housing with contact locking mechanism coupling element wiring harness for interior	999	Next
10	3D0971838A	Cable tie with holder for weld pin: 5X200 5	999	Next

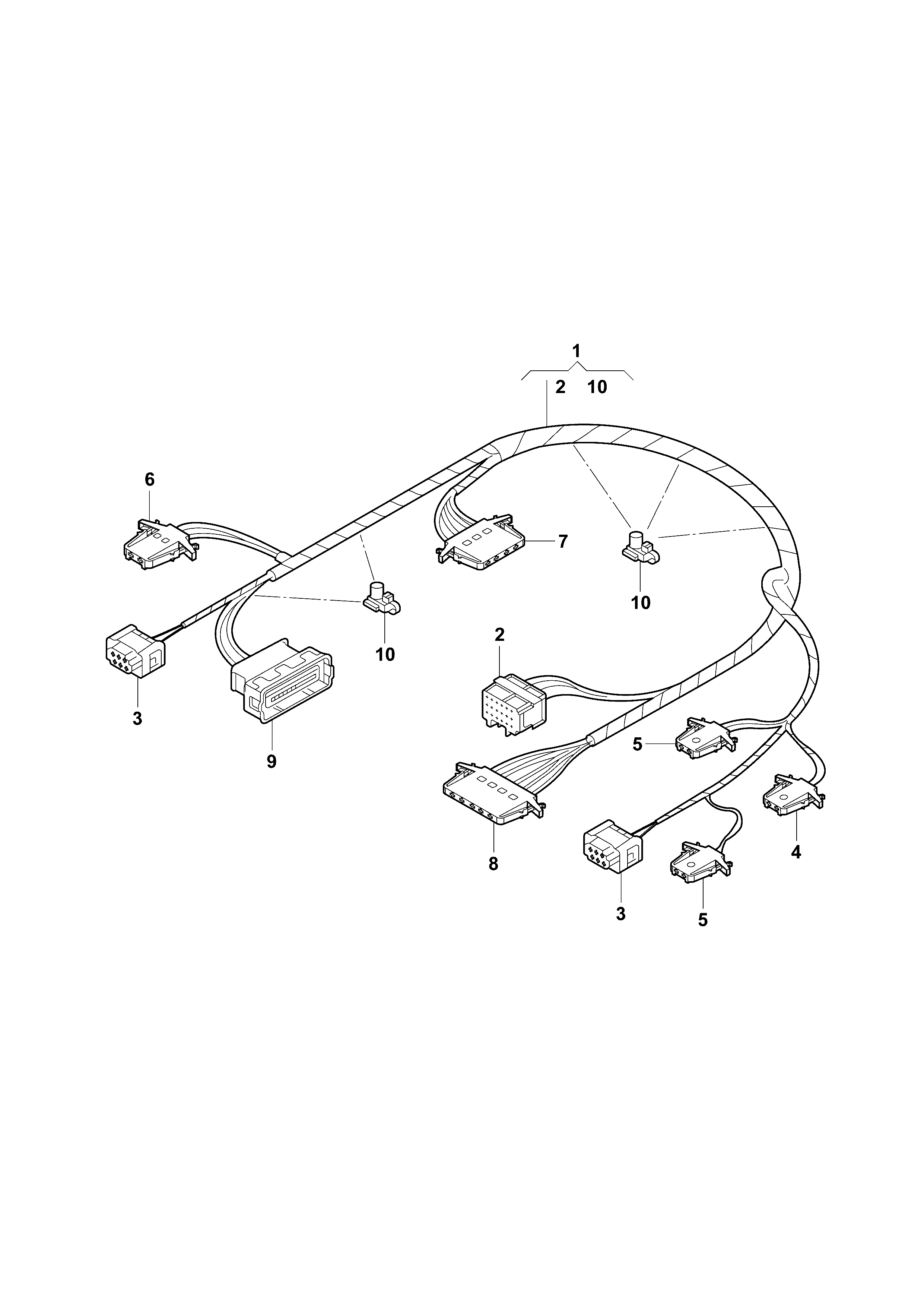

Scheme Wiring harness for heater controls Volkswagen Polo 2013-2017 EUR
