Wiper and washer system for rear window Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0955453S	Wash water reservoir	999	Next
1	5M0955453B	Wash water reservoir	999	Next
5	7M0919376	Water level switch	999	Next
5	8E0955465A	Bungs	999	Next
6	7M0919382	O-ring	999	Next
7	1K0955455	End cap	999	Next
8	1C0955485	Strainer	999	Next
8	4A0955485	Strainer	999	Next
10	1K6955651	Windscreen washer system pump	999	Next
11	443955465	Seal 12X6,5	999	Next
12	3B7955681	Pump for headlight- washer system use if required: N 903 038 01	999	Next
13	431955465A	Seal 20,2X9,5	999	Next
14	444955647	Bungs	999	Next
15	N10160205	Hex collared bolt M6X25	999	Next
16	N10321002	Bolt, hexagon head self-locking M6X16	999	Next
16	N10321002	Bolt, hexagon head self-locking for vehicles with auxiliary heater M6X16	999	Next
17	N90887703	Hexagon flange nut, self-locking M6	999	Next
20	5M0955985C	Water jet	999	Next
20	5M0955985C9B9	Water jet satin black	999	Next
20	5M0955986C	Spray nozzle, heated	999	Next
20	5M0955986C9B9	Spray nozzle, heated satin black	999	Next
25	1J0955751D	Corrugated pipe modify in workshop 6X0,75X10000MM	999	Next
26	3B0955665C	Elbow fitting 6X1	999	Next
27	1J0955873D	Y-piece	999	Next
28	1J0955875P	Coupling element	999	Next
29	1J0955875R	Coupling element	999	Next
30	6Q0955998	Grommet	999	Next
31	2D0955962	Hose modify in workshop 3,8X2,1X1300MM	999	Next
32	000979992A	1 set: shrink fit sleeves can be sealed watertight contents of package: 12MM/4MM 8 STK	999	Next
33	N0209022	Cable ties 3,6X246	999	Next
45	G052184A4	Concentrated glass cleaner for use in summer in wind-screen washer system	999	Next
45	G052184A6	Concentrated glass cleaner for use in summer in wind-screen washer system	999	Next
-	G052164M2	Concentrated glass cleaner with anti-freeze for use all-year-round in windscreen washer system	999	Next
-	GJZW021M4	Eco' windscreen cleaner for use all-year-round in windscreen washer system	999	Next
-	GJZW050M1	Windscreen cleaner with for use all-year-round in windscreen washer system	999	Next
-	GJZW015M9	Eco' windscreen cleaner for use all-year-round in windscreen washer system	999	Next
-	GJZW015M4	Eco' windscreen cleaner for use all-year-round in windscreen washer system	999	Next
-	GJZW015M2	Eco' windscreen cleaner for use all-year-round in windscreen washer system	999	Next
-	GJZW021M9	Eco' windscreen cleaner for use all-year-round in windscreen washer system	999	Next
-	GJZW021M3	Eco' windscreen cleaner for use all-year-round in windscreen washer system	999	Next
-	GJZW021M2	Eco' windscreen cleaner for use all-year-round in windscreen washer system	999	Next
-	GJZW050M2	Windscreen cleaner with for use all-year-round in windscreen washer system	999	Next
-	G052184A2	Concentrated glass cleaner for use in summer in wind-screen washer system	999	Next
-	G060164M2	Windscreen cleaner with polish for use all-year-round in windscreen washer system	999	Next
-	G052164M9	Concentrated glass cleaner with anti-freeze for use all-year-round in windscreen washer system	999	Next
-	GJZW164M8	Concentrated glass cleaner with antifreeze 'eco' for use all-year-round in windscreen washer system	999	Next
-	GJZW164M3	Concentrated glass cleaner with antifreeze 'eco' for use all-year-round in windscreen washer system	999	Next

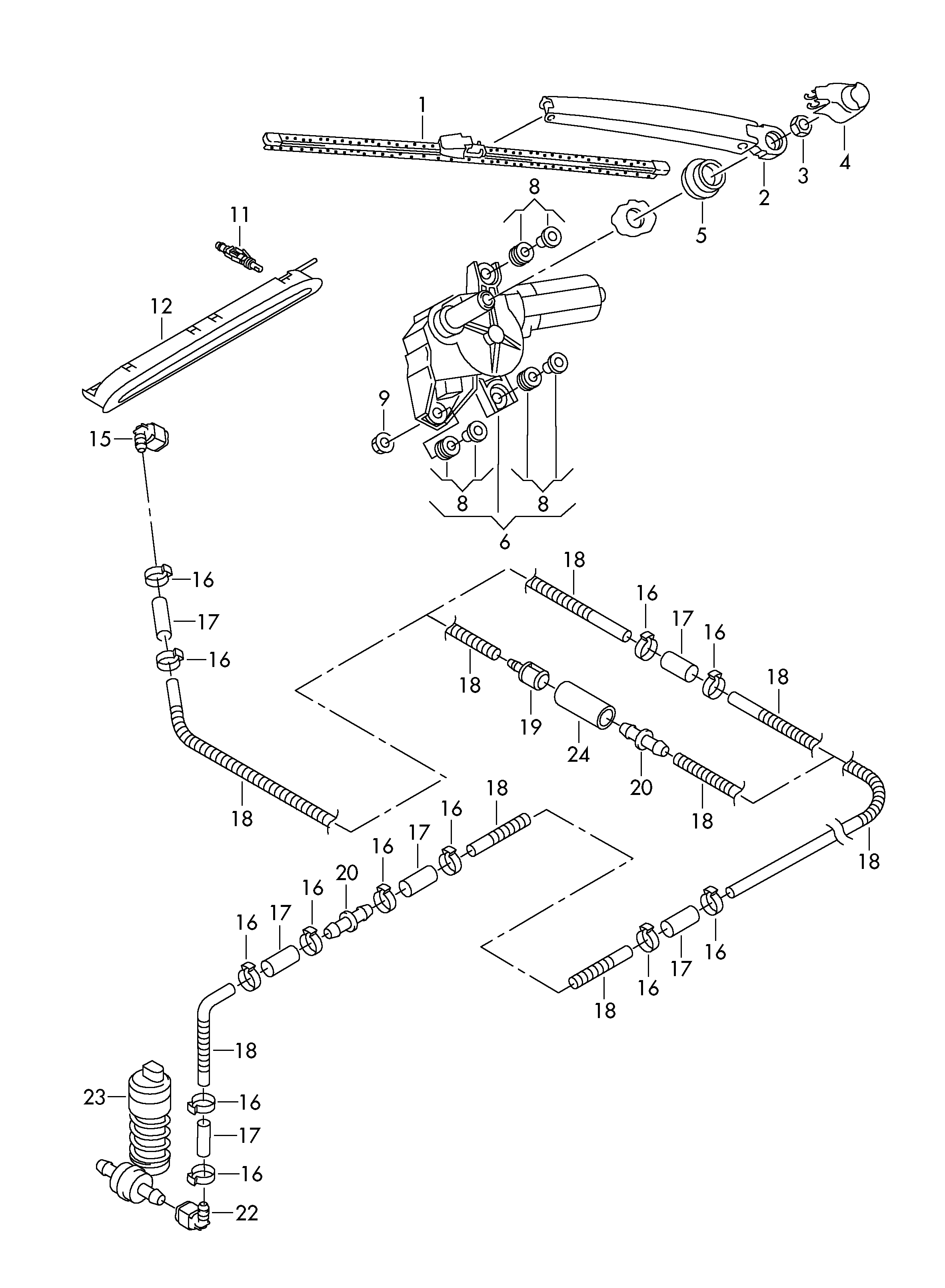

Scheme Wiper and washer system for rear window Volkswagen Golf Plus 2012-2014 EUR
