Window regulator, window guide, window aperture seal, trim for door window frame rear Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5M0839461	Window regulator without motor	999	Next
1	5M0839462	Window regulator without motor	999	Next
2	WHT002109	Oval hexagon socket head bolt M6X10-T30	999	Next
4		Window regulator motor	999	Next
9	5M0839431D	Window guide	999	Next
9	5M0839431D5AP	Window guide black	999	Next
9	5M0839432D	Window guide	999	Next
9	5M0839432D5AP	Window guide black	999	Next
9A	1K0839723A	Clip	999	Next
10	5M0839407	Guide rail	999	Next
10	5M083940703C	Guide rail rally black	999	Next
10	5M0839408	Guide rail	999	Next
10	5M083940803C	Guide rail rally black	999	Next
13	WHT002109	Oval hexagon socket head bolt M6X10-T30	999	Next
16	5M0839477	Window aperture seal	999	Next
16	5M08394775AP	Window aperture seal black	999	Next
16	5M0839478	Window aperture seal	999	Next
16	5M08394785AP	Window aperture seal black	999	Next
17	1K0837199B	Clip	999	Next
19	5M0839479B	Window aperture seal	999	Next
19	5M0839479B5AP	Window aperture seal black	999	Next
19	5M0839480B	Window aperture seal	999	Next
19	5M0839480B5AP	Window aperture seal black	999	Next
21	WHT000329	Hexagon socket head bolt (combi) M6X14,5	999	Next
24	WHT000410	Hexagon socket head bolt (combi) M6X14,5	999	Next
27	N90257703	Speed nut 4,2	999	Next
28	N90986802	Hexagon socket head panel bolt 4,2X13	999	Next
28	N90986801	Hexagon socket head panel bolt 4,2X13	999	Next
29	5M0839901	Trim for door window frame	999	Next
29	5M083990103C	Trim for door window frame rally black	999	Next
29	5M0839902	Trim for door window frame	999	Next
29	5M083990203C	Trim for door window frame rally black	999	Next
30	N10226501	Bungs 30	999	Next
31	7H0837903	Cover for loudspeaker aperture	999	Next

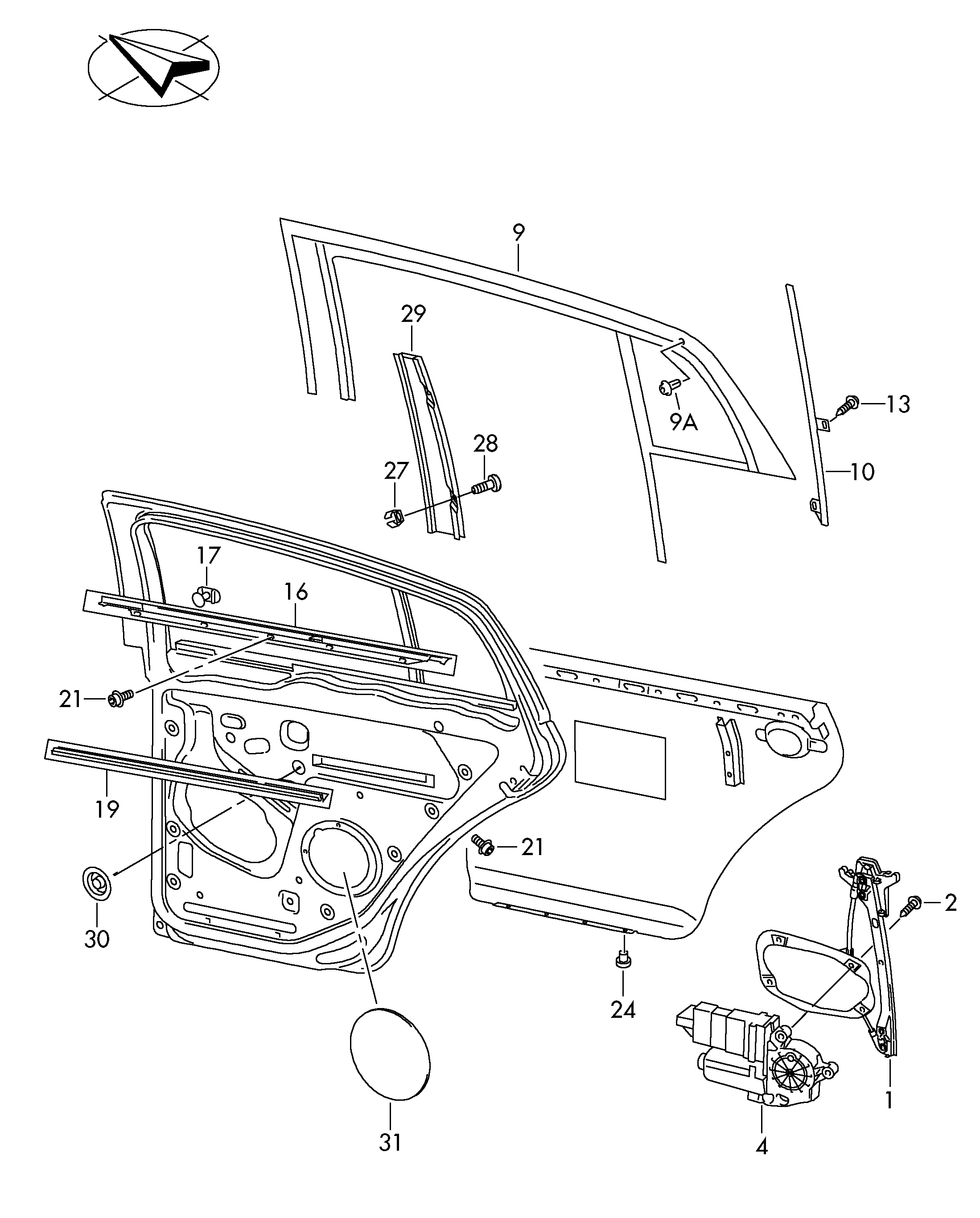

Scheme Window regulator, window guide, window aperture seal, trim for door window frame rear Volkswagen Golf Plus 2012-2014 EUR
