Window regulator, window guide, window aperture seal, trim for door rear Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C8839755D	Assembly carrier	999	Next
1	3C8839756D	Assembly carrier	999	Next
2	3C8839461J	Window regulator, before 02.11.2008	999	Next
2	3C8839461K	Window regulator, D 03.11.2008 and after	999	Next
2	3C8839462J	Window regulator, before 02.11.2008	999	Next
2	3C8839462K	Window regulator, D 03.11.2008 and after	999	Next
3		Window regulator motor	999	Next
4	N0200241	Bungs 10X1X12	999	Next
5	N10265401	Bungs, before 12.10.2008 23	999	Next
5	N10265401	Bungs, D 13.10.2008 and after 23	999	Next
5	191971928	Grommet, D 13.10.2008 and after 27	999	Next
6	4F0837491	Bungs	999	Next
9	7H0837903	Cover cover for loudspeaker aperture 173MM	999	Next
9	3B0837903	Cover cover for loudspeaker aperture 173MM	999	Next
10	WHT001418	Hexagon socket flat head bolt M8X20	999	Next
11	3C8837485	Clip	999	Next
12	N10609201	Hexagon collar nut M8	999	Next
16		Water deflector	999	Next
22	3C8839471C	Window aperture seal	999	Next
22	3C8839471C5AP	Window aperture seal black	999	Next
22	3C8839472C	Window aperture seal	999	Next
22	3C8839472C5AP	Window aperture seal black	999	Next
24	3C8839475C	Window aperture seal	999	Next
24	3C8839475C3Q7	Window aperture seal aluminium	999	Next
24	3C8839475D	Window aperture seal	999	Next
24	3C8839475D3Q7	Window aperture seal aluminium	999	Next
24	3C8839475F	Window aperture seal	999	Next
24	3C8839475F3Q7	Window aperture seal aluminium	999	Next
24	3C8839476C	Window aperture seal	999	Next
24	3C8839476C3Q7	Window aperture seal aluminium	999	Next
24	3C8839476D	Window aperture seal	999	Next
24	3C8839476D3Q7	Window aperture seal aluminium	999	Next
24	3C8839476F	Window aperture seal	999	Next
24	3C8839476F3Q7	Window aperture seal aluminium	999	Next
26	3C8853587	Retainer for cover 4,2	999	Next
27	3C8853317B	Cover for pillar b	999	Next
27	3C8853317B041	Cover for pillar b satin black	999	Next
27	3C8853318B	Cover for pillar b	999	Next
27	3C8853318B041	Cover for pillar b satin black	999	Next
31	N90974701	Hexagon socket head panel bolt 5X16	999	Next

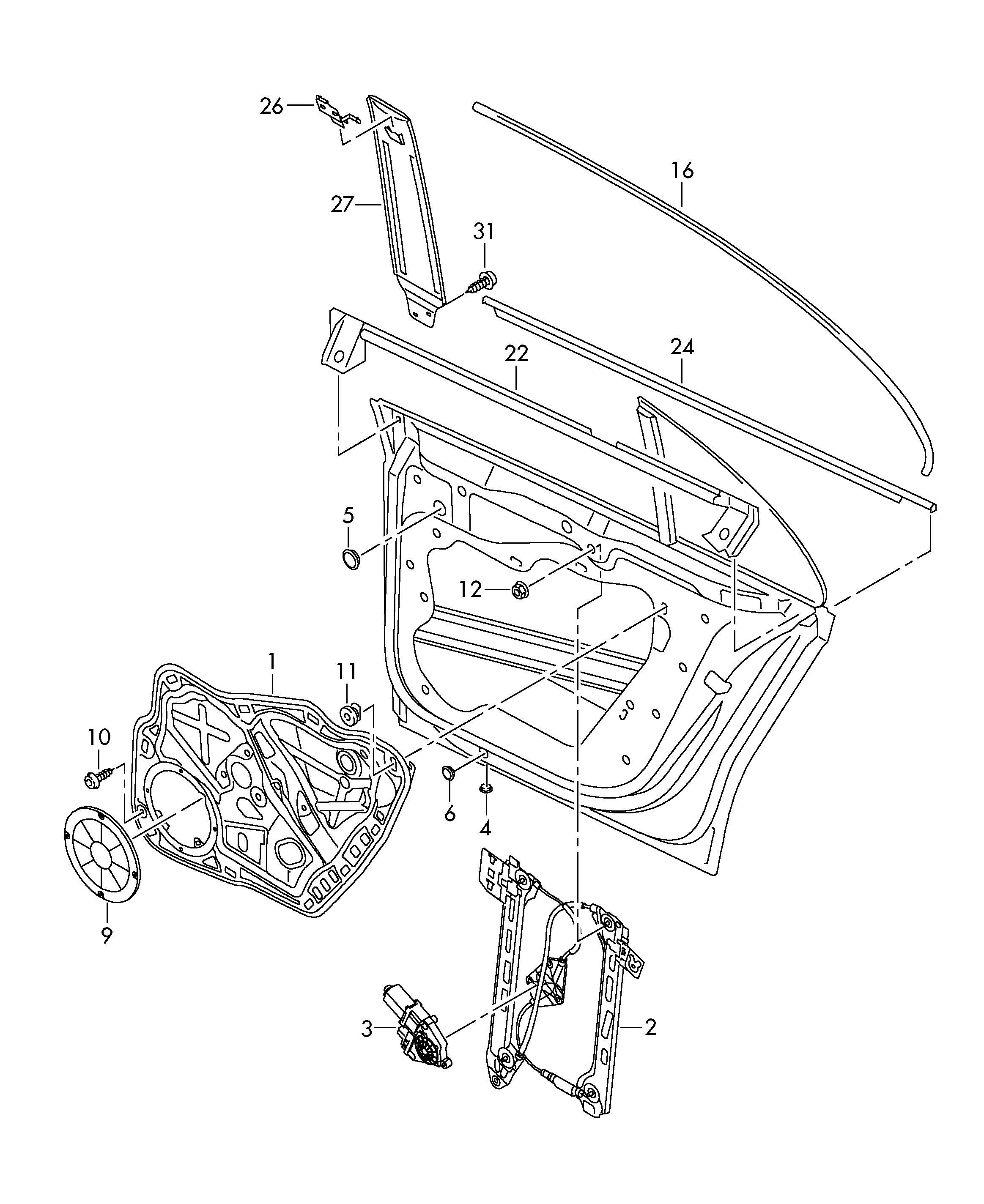

Scheme Window regulator, window guide, window aperture seal, trim for door rear Volkswagen Passat CC Coupe 2009-2012 EUR
