Warning lamp, socket, cigarette lighter Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0919238A	Warning lamp	999	Next
2	3C0919242	Sleeve	999	Next
2	3C09192429B9	Sleeve satin black	999	Next
8	1J0919307	Cigarette lighter	999	Next
8	1J09193079B9	Cigarette lighter satin black	999	Next
8	7L6919311	Cigarette lighter cover with lettering: 12 V	999	Next
9	1J0919309	Socket centre console	999	Next
9	1K0919309	Socket luggage compartment trim	999	Next
12	3C0919299	Socket and clamping sleeve with cable	999	Next
15	7M3919311	Cigarette lighter cover	999	Next
15	7L6919311	Cigarette lighter cover	999	Next
16	6K0919341	Spannhuelse centre console	999	Next
17	6Y0919341	Spannhuelse centre console	999	Next
17	6Y09193419B9	Spannhuelse centre console satin black	999	Next
20	1K0919341L	Clamp. sleeve w/ hinged cover for vehicles with socket in luggage compartment	999	Next
20	1K0919341L9B9	Clamp. sleeve w/ hinged cover for vehicles with socket in luggage compartment satin black	999	Next
23	1J0972762	Flat connector housing	999	Next
25	N0177512	Bulb W5/1,2W12V1,2W	999	Next
30	3C0907815	Bracket inverter	999	Next
31	N10660301	Hexagon socket flat head bolt M4X6	999	Next
32	3C0907155	Inverter F 3C9536 397 230V50HZ	999	Next
32	3C0907155C	Inverter, before 14.06.2010 230V50HZ/150W	999	Next
32	3AA907155	Inverter 230V50HZ 150W	999	Next
33	3C0919565A	Socket inverter 230V50HZ	999	Next
34	3C0919326	Leaf spring inverter	999	Next
35	1J0972753	Flat contact housing	999	Next
40	N10526302	Self-tapping screw 4X14	999	Next
30	3C0907815	Bracket inverter	999	Next
31	N10660301	Hexagon socket flat head bolt M4X6	999	Next
32	3C0907155A	Inverter 115V60HZ	999	Next
33	3C0919565B	Socket frame inverter 115V60HZ	999	Next
34	3C0919326	Leaf spring inverter	999	Next
35	1J0972753	Flat contact housing	999	Next
40	N10526302	Self-tapping screw 4X14	999	Next

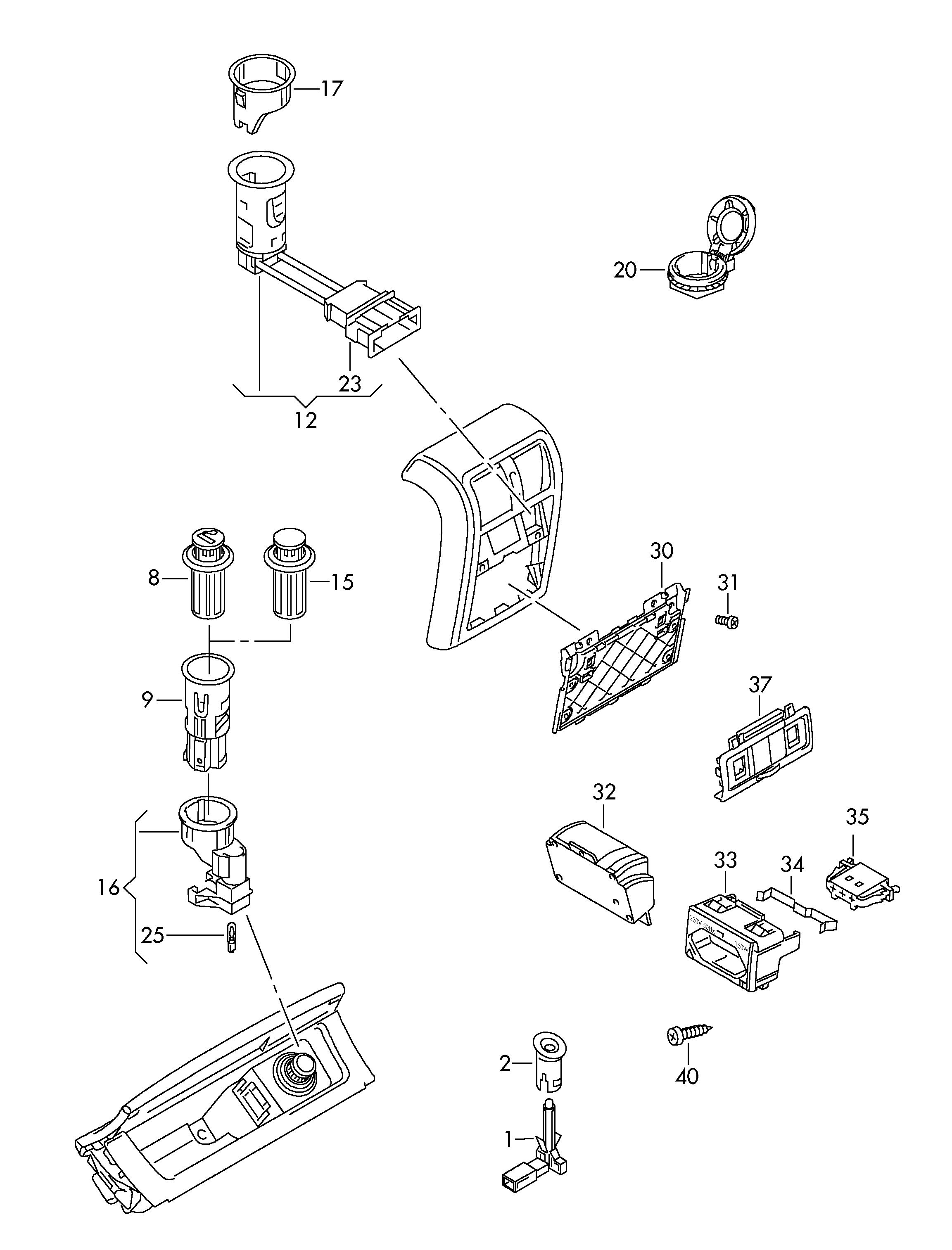

Scheme Warning lamp, socket, cigarette lighter Volkswagen Passat CC Coupe 2009-2012 EUR
