Vacuum hoses for, brake servo lhd petr. engine Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0612041DJ	Vacuum pipe with non-return valve	999	Next
2	1K0612041FQ	Vacuum pipe with non-return valve	999	Next
2	1K0612041JP	Vacuum pipe with non-return valve	999	Next
3	1K0612041GH	Vacuum pipe with non-return valve	999	Next
3	1K0612041KA	Vacuum pipe with non-return valve	999	Next
4	1K0612041HD	Vacuum pipe with non-return valve	999	Next
5	1K0612041GD	Vacuum pipe with non-return valve	999	Next
5	1K0612041JT	Vacuum pipe with non-return valve	999	Next
6	1K0612041GT	Vacuum pipe with non-return valve	999	Next
6	1K0612041KD	Vacuum pipe with non-return valve	999	Next
7	1K0612041HR	Vacuum pipe with non-return valve	999	Next
7	1K0612041KF	Vacuum pipe with non-return valve	999	Next
8	1K0612041FE	Vacuum pipe with non-return valve	999	Next
8	1K0612041JL	Vacuum pipe with non-return valve	999	Next
9	1K0612041EP	Vacuum pipe with non-return valve	999	Next
9	1K0612041KG	Vacuum pipe with non-return valve	999	Next
10	1K0612041GA	Vacuum pipe with non-return valve	999	Next
10	1K0612041JR	Vacuum pipe with non-return valve	999	Next
11	1K0612041EM	Vacuum pipe with non-return valve	999	Next
11	1K0612041KH	Vacuum pipe with non-return valve	999	Next
12	1K0612041CQ	Vacuum pipe with non-return valve	999	Next
13	1K0612041EN	Vacuum pipe with non-return valve	999	Next
14	1K0612041BJ	Vacuum pipe with non-return valve	999	Next
18	036906051G	Pressure sensor	999	Next
18	036906051G	Pressure sensor	999	Next
19	56129777	Cap closure 4MM	999	Next
20	N10445001	Clip 7,8X12	999	Next
21	4A0820199	Double cable tie 7X213/140MM	999	Next

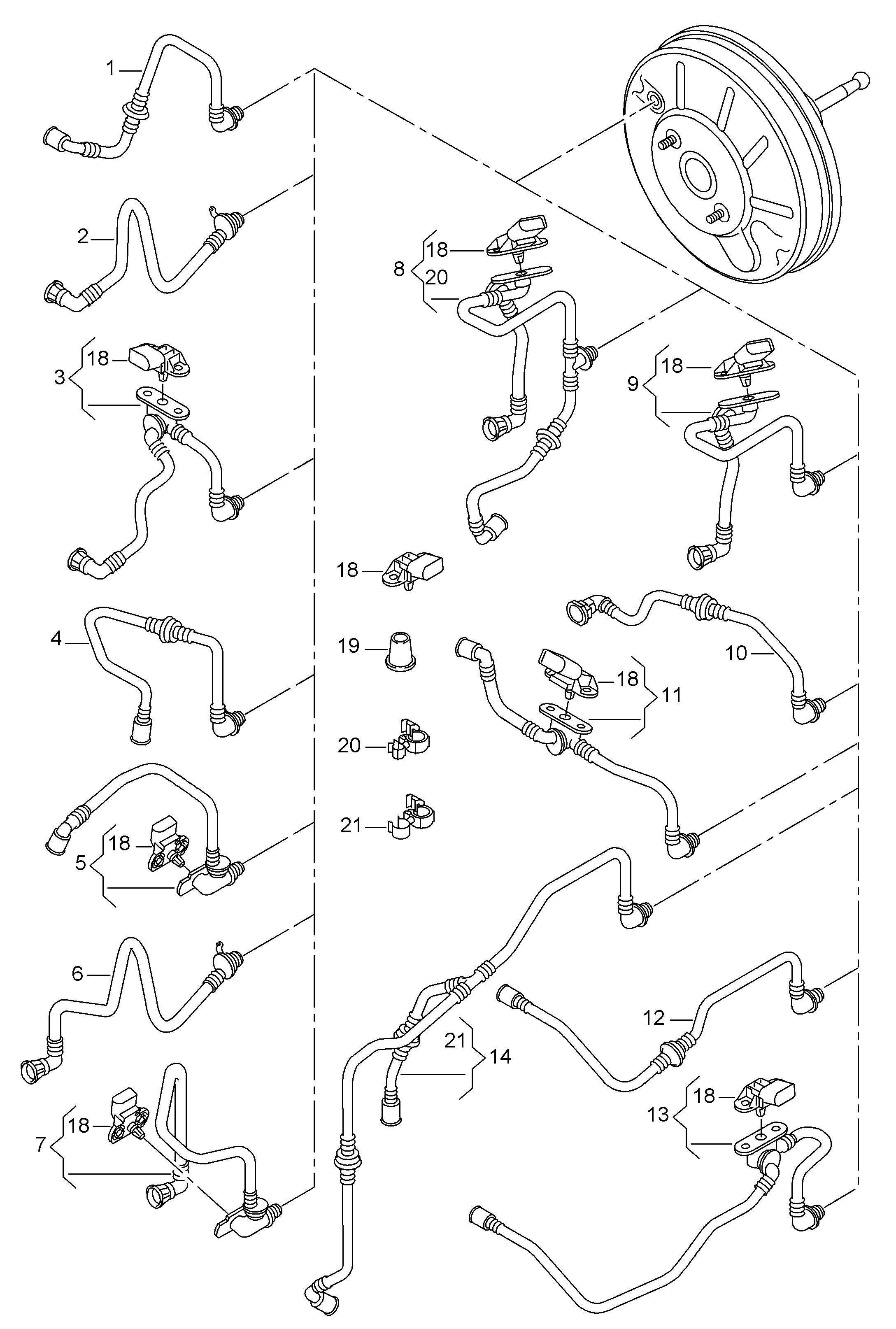

Scheme Vacuum hoses for, brake servo lhd petr. engine Volkswagen Golf Plus 2012-2014 EUR
