Trim, bottom plate lower rear PR-1SA, 1SL Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0825235J	Noise insulation	999	Next
1	3C0825235J	Noise insulation	999	Next
1	3C0825235M	Noise insulation	999	Next
1	3C8825235	Noise insulation	999	Next
1	3C8825235	Noise insulation	999	Next
2	N90959101	Speed nut 5X16,5X11	999	Next
3	N90974701	Hexagon socket head panel bolt 5X16	999	Next
4	3C0825671K	Heat shield for tunnel	999	Next
4	3C0825671L	Heat shield for tunnel	999	Next
4	3AA825661	Heat shield for tunnel	999	Next
5	N90335005	Clamping washer 5X30	999	Next
5	N90796502	Clamping washer 5X30	999	Next
6	N0195306	Hex collared bolt M8X25	999	Next
7	3C8825715A	Heat deflector plate for bumper	999	Next
7	3C8825715	Heat deflector plate for bumper	999	Next
7	3C8825716	Heat deflector plate for bumper	999	Next
8	N90346302	Pop rivet 4X18,8	999	Next
8	N90346302	Pop rivet 4X18,8	999	Next
9	N90531902	Clip 13X13X3	999	Next
9	N90531902	Clip 13X13X3	999	Next
10	3C0825712	Heat shield for rear silencer	999	Next
11	WHT000729A	Hexagon socket head bolt, self-locking M8X20	999	Next
13	3C0825701C	Heat shield for rear silencer	999	Next
14	3C0825711	Heat shield for rear silencer	999	Next
15	3C0825271B	Cover	999	Next
15	3C0825272B	Cover	999	Next
15	3C0825272A	Cover	999	Next
16	N10354602	Hexagon socket head panel bolt 5X16	999	Next
17	3C0825961	Bungs	999	Next
17	3C0825962	Bungs	999	Next
18	3C0825201F	Underbody trim	999	Next
19	3C8825202A	Underbody trim	999	Next
20	N90959101	Speed nut 5X16,5X11	999	Next
21	3C8825206	Underbody trim contains additional positions: 24	999	Next
21	3C8825206A	Underbody trim contains additional positions: 24	999	Next
22	N90974701	Hexagon socket head panel bolt 5X16	999	Next
23	N90959101	Speed nut 5X16,5X11	999	Next
24	WHT000713	Hexagon collar nut plastic included in position: 5 21	999	Next
25	3C0825102B	Underbody trim	999	Next
25	3C0825102B	Underbody trim	999	Next
26	N90959101	Speed nut 5X16,5X11	999	Next
27	N90974701	Hexagon socket head panel bolt 5X16	999	Next
28	N90959101	Speed nut 5X16,5X11	999	Next
29	N90974701	Hexagon socket head panel bolt 5X16	999	Next
31	WHT003491	Expanding nut	999	Next
32	N90974701	Hexagon socket head panel bolt 5X16	999	Next
33	WHT003497	Hexagon socket oval head bolt (combi) M8X23	999	Next
34	N90974701	Hexagon socket head panel bolt 5X16	999	Next
35	3C0825721D	Heat shield for floor panel	999	Next
36	N0195306	Hex collared bolt M8X25	999	Next
37	N90335005	Clamping washer 5X30	999	Next
37	N90796502	Clamping washer 5X30	999	Next
40	3C0825101B	Underbody trim, before 09.08.2010	999	Next
40	3C0825101B	Underbody trim, before 08.08.2010	999	Next
41	N90959101	Speed nut, before 08.08.2010 5X16,5X11	999	Next
42	N90974701	Hexagon socket head panel bolt, before 08.08.2010 5X16	999	Next
43	WHT003491	Expanding nut, before 08.08.2010	999	Next
44	N90974701	Hexagon socket head panel bolt, before 08.08.2010 5X16	999	Next
48	3C0825967	Cover, before 08.08.2010	999	Next
49	3C0825968	Cover	999	Next

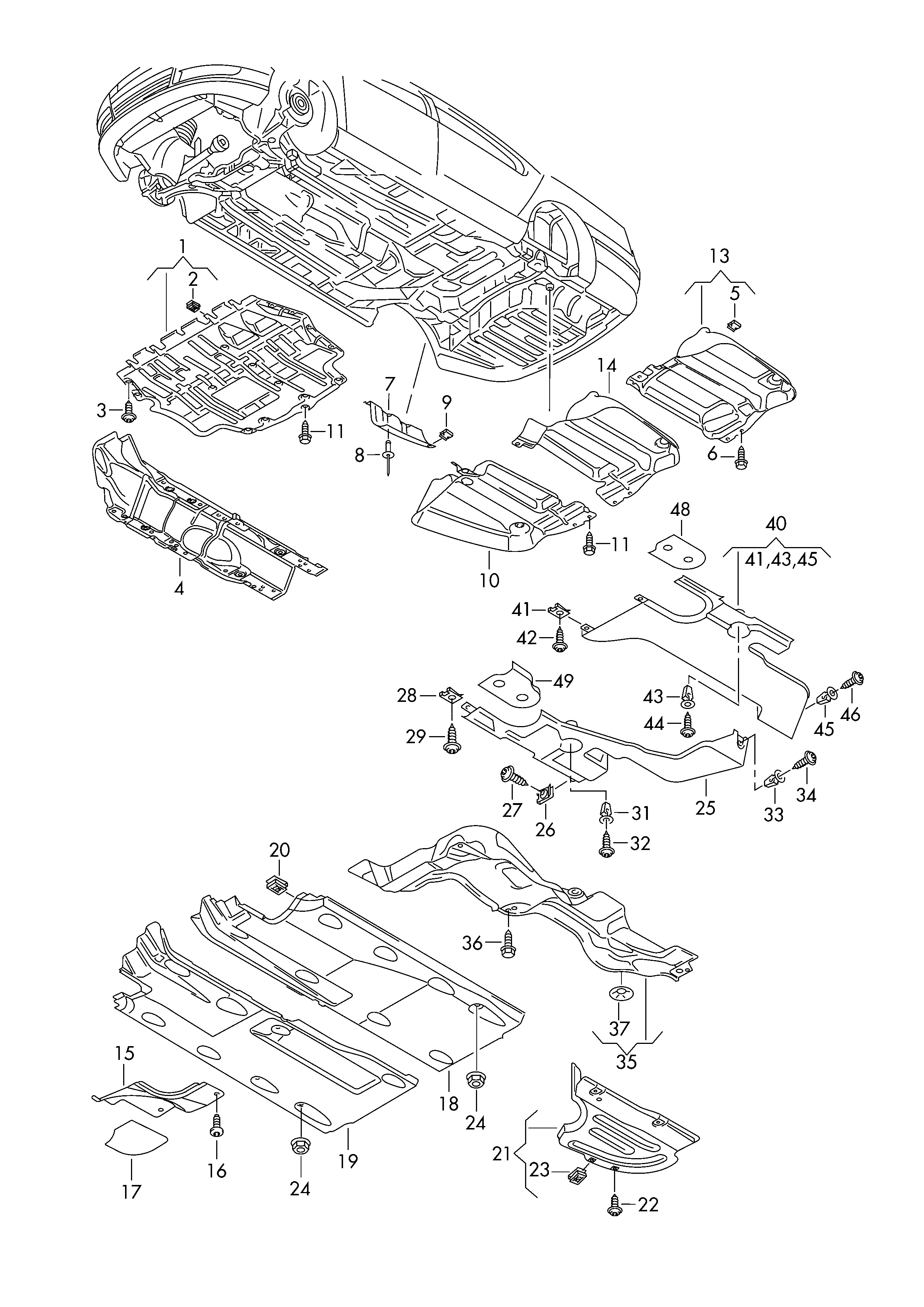

Scheme Trim, bottom plate lower rear PR-1SA, 1SL Volkswagen Passat CC Coupe 2009-2012 EUR
