Transmission securing parts, final drive gearbox, for 6 speed manual gearbox front LMX, LMV, LMU, MXB, NGF, NGH Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0A6409905C	Transmission carrier	999	Next
1	N 91000002	Fillister head bolt with multi-point socket head M10X20	999	Next
1	N 90956402	Hexagon socket head bolt with shoulder M10X45	999	Next
1	N 90956402	Hexagon socket head bolt with shoulder M10X45	999	Next
1	N 91088901	Socket head bolt with inner multipoint head M10X11X60	999	Next
1	02E409359	Socket head bolt with hexagon socket head M8X45,9	999	Next
1	0A6409905H	Transmission carrier	999	Next
1	N 91000002	Fillister head bolt with multi-point socket head M10X20	999	Next
1	N 91002702	Double collared stud M10X45/M8X16	999	Next
1	N 90956402	Hexagon socket head bolt with shoulder M10X45	999	Next
1	N 91088901	Socket head bolt with inner multipoint head M10X11X60	999	Next
1	02E409359	Socket head bolt with hexagon socket head M8X45,9	999	Next
1	0A6409905J	Transmission carrier	999	Next
1	N 91000002	Fillister head bolt with multi-point socket head M10X20	999	Next
1	N 91002702	Double collared stud M10X45/M8X16	999	Next
1	N 90956402	Hexagon socket head bolt with shoulder M10X45	999	Next
1	N 91088901	Socket head bolt with inner multipoint head M10X11X60	999	Next
1	02E409359	Socket head bolt with hexagon socket head M8X45,9	999	Next

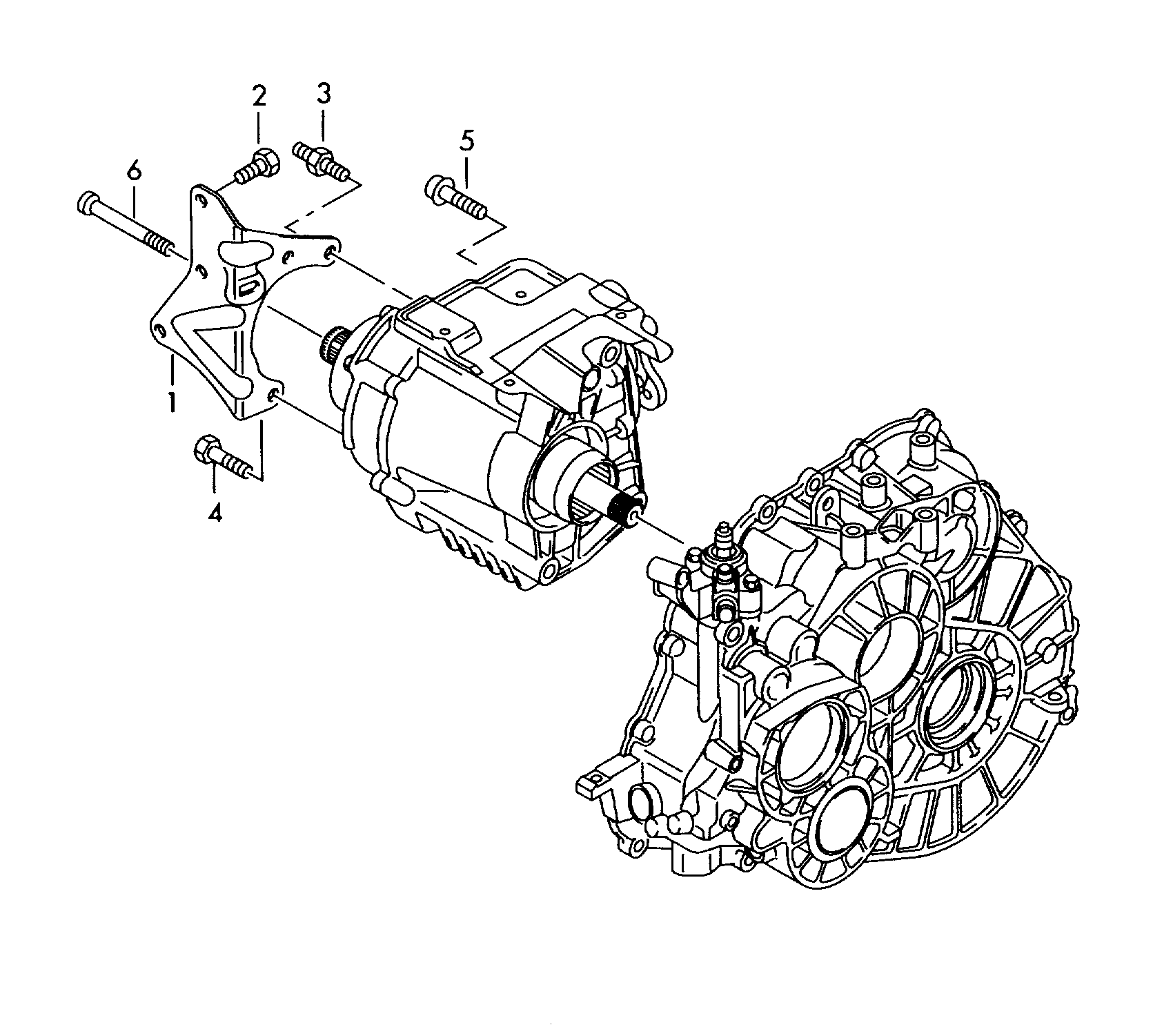

Scheme Transmission securing parts, final drive gearbox, for 6 speed manual gearbox front LMX, LMV, LMU, MXB, NGF, NGH Volkswagen Tiguan 2010-2017 EUR
