Track rod, coupling rod, anti-roll bar rear 4motion+, CBAB, CBBB, CFFB, CFGB Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0501529F	Track rod	999	Next
1	1K0501530C	Track rod	999	Next
4	N10106402	Hexagon collar nut self-locking M12X1,5	999	Next
5	N10211202	Hex collared bolt M12X1,5X90	999	Next
6	1K0505193	Washer	999	Next
7	N91076701	Hexagon head bolt (combi) M14X1,5X115	999	Next
8	N10401801	Hexagon collar nut M14X1,5	999	Next
9	WHT000724	Retaining washer 14,5X30X3	999	Next
10	1K0505465K	Coupling rod	999	Next
11	N10286111	Hexagon collar nut self-locking M10	999	Next
12	WHT000226	Socket head bolt with inner multipoint head M10X55	999	Next
13	N10286111	Hexagon collar nut self-locking M10	999	Next
14		Wheel bearing housing	999	Next
15	1K0511327AR	Rubber bush	999	Next
15	1K0511327AS	Rubber bush, before 22.06.2009	999	Next
15	1K0511327AR	Rubber bush, 23.06.2009 and after	999	Next
16	3C0511409A	Anti-roll bar 20,7X2,8	999	Next
16	3C0511409A	Anti-roll bar 20,7X2,8	999	Next
16	3C0511409E	Anti-roll bar, before 22.06.2009 21,7X3,6	999	Next
16	3C0511409A	Anti-roll bar, 23.06.2009 and after 20,7X2,8	999	Next
17	1K0511439E	Clamp	999	Next
18	N10719301	Socket head collared bolt with inner multipoint head M8X28	999	Next
21		Support frame	999	Next

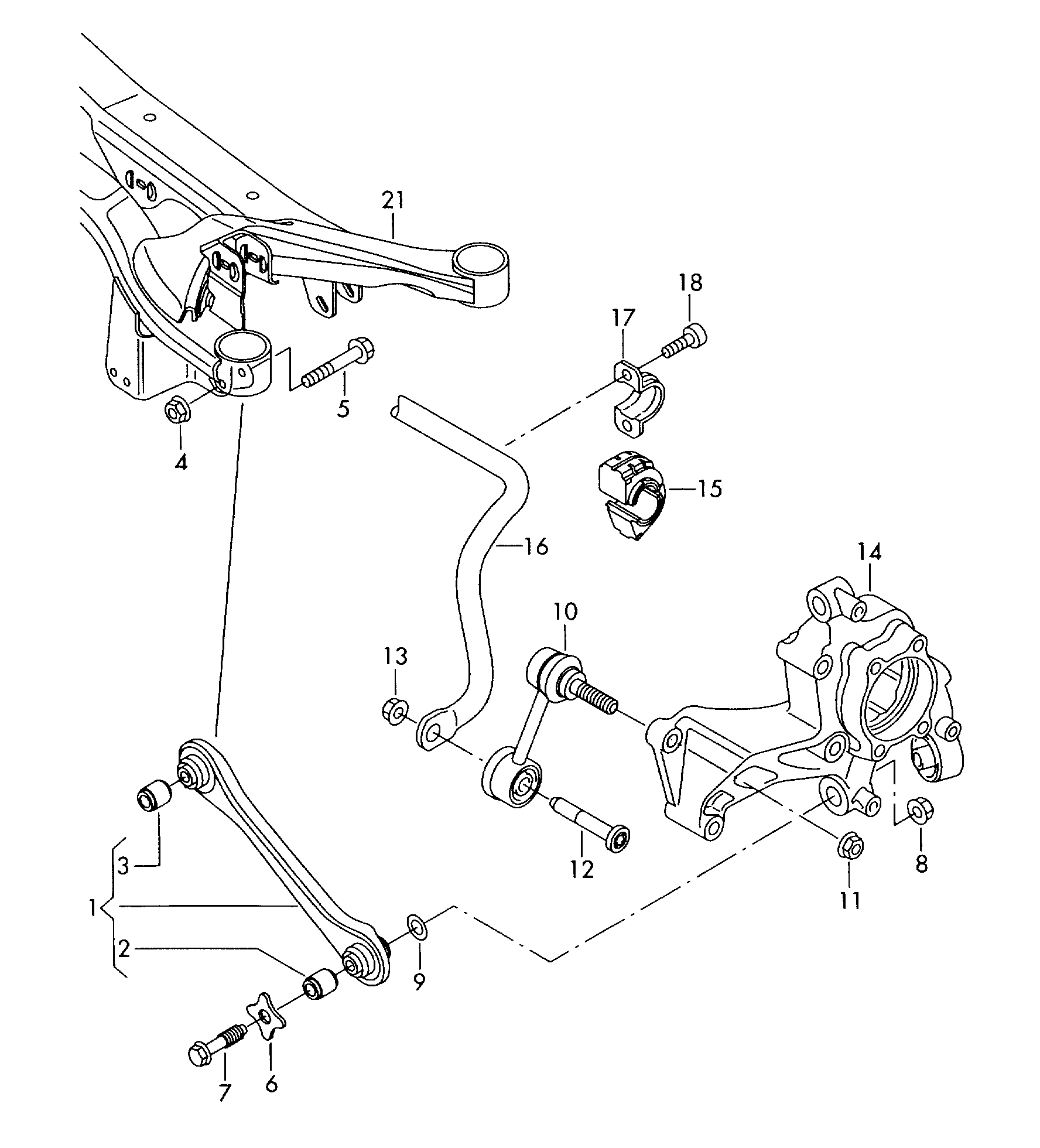

Scheme Track rod, coupling rod, anti-roll bar rear 4motion+, CBAB, CBBB, CFFB, CFGB Volkswagen Passat CC Coupe 2009-2012 EUR
