Toothed belt, toothed belt guard 2.0 ltr. diesel eng.+, CUVC, CUVE, CUWA Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	04L109107F	Toothed belt guard	999	Next
1	04L129968B	Shield for toothed belt protection	999	Next
1	WHT005821	Shouldered bolt M6X25,5	999	Next
1	04L131213C	Clip	999	Next
1	04L109145	Cover plate	999	Next
1	WHT005822	Shouldered bolt M6X13,5	999	Next
1	04L109147D	Toothed belt guard	999	Next
1	WHT005821	Shouldered bolt M6X25,5	999	Next
1	04L109119D	Toothed belt	999	Next
1		Toothed belt pulley	999	Next
1	04L109243G	Tensioning roller	999	Next
1	N 10762501	Threaded pin M10XM8X73	999	Next
1	038109454A	Hexagon collar nut M8	999	Next
1	03L109244G	Idler pulley	999	Next
1	N 10444702	Threaded pin M8X55	999	Next
1	N 10609201	Hexagon collar nut M8	999	Next
1	03L109244D	Idler pulley	999	Next
1	N 10675602	Hex collared bolt M8X35	999	Next
1		Toothed belt pulley	999	Next
1		Coolant pump with sealing ring	999	Next

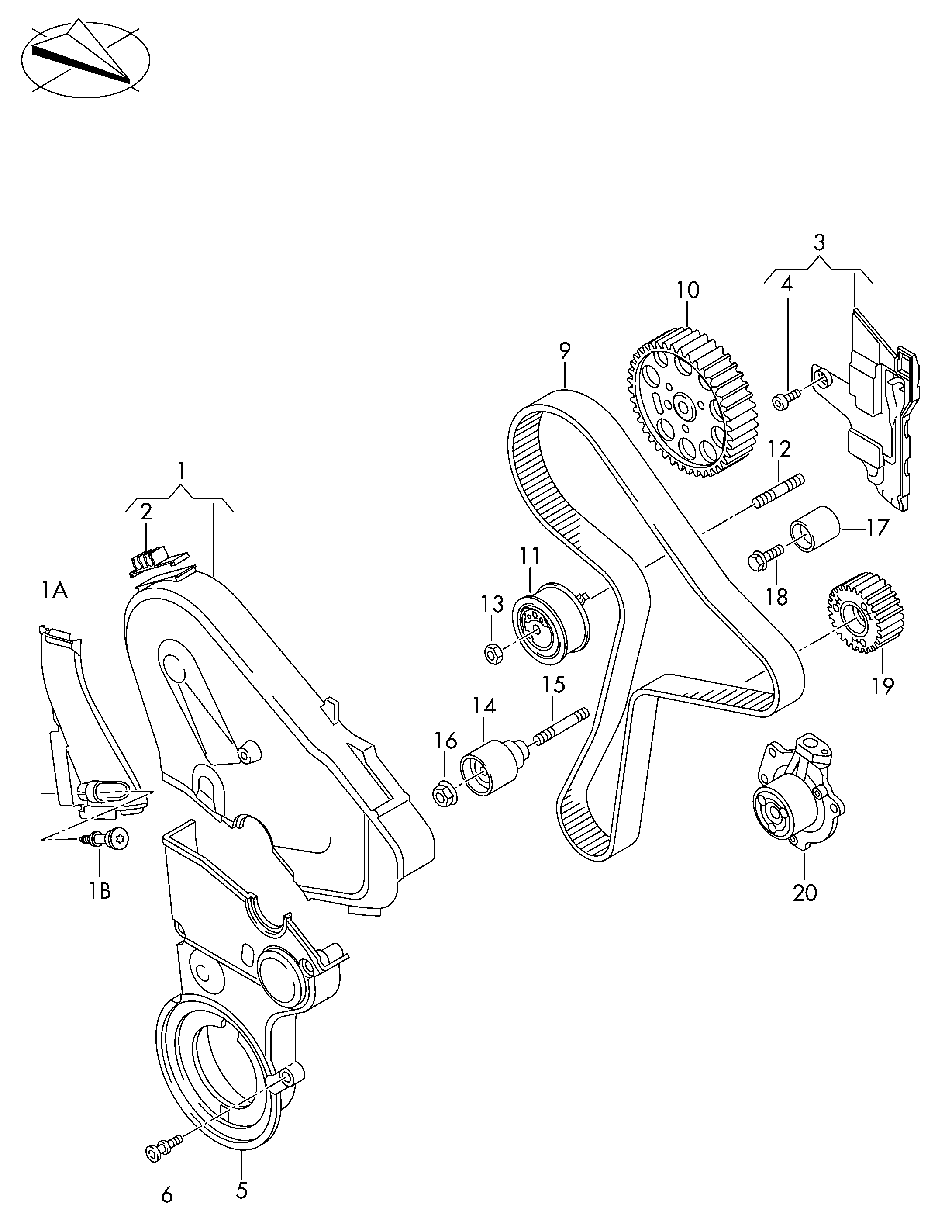

Scheme Toothed belt, toothed belt guard 2.0 ltr. diesel eng.+, CUVC, CUVE, CUWA Volkswagen Tiguan 2010-2017 EUR
