Toothed belt, toothed belt guard 2.0 ltr. diesel eng.+, CBAA, CBAB, CBAC, CBBB Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03P109107	Toothed belt guard	999	Next
1	03L109107E	Toothed belt guard	999	Next
2	026109150A	Spring clip	999	Next
3	03L109145B	Cover	999	Next
4	026109150A	Spring clip	999	Next
5	N10082912	Hexagon head bolt (combi) M6X16	999	Next
6	03L129969K	Guard plate	999	Next
7	N10555702	Hexagon socket flat head bolt 4X8	999	Next
8	38971904	Bungs	999	Next
9	038109147D	Toothed belt guard	999	Next
10	N10082912	Hexagon head bolt (combi) M6X16	999	Next
11	38109175	Toothed belt guard	999	Next
12	N10082912	Hexagon head bolt (combi) M6X16	999	Next
14	03L109119F	Toothed belt Z=160	999	Next
14	03L109119D	Toothed belt Z=160	999	Next
15		Toothed belt pulley	999	Next
16	03L109243E	Tensioning roller	999	Next
17	N90905502	Threaded pin M10XM8X73	999	Next
18	038109454A	Hexagon collar nut M8	999	Next
19	038109244J	Idler pulley	999	Next
20	N10444702	Threaded pin M8X55	999	Next
21	N01508315	Hexagon collar nut M8	999	Next
22	03L109244C	Idler pulley	999	Next
22	045109244A	Idler pulley	999	Next
23	N10675602	Hex collared bolt M8X35	999	Next
25	03G109244	Idler pulley	999	Next
26	N10699901	Hexagon bolt M10X45	999	Next

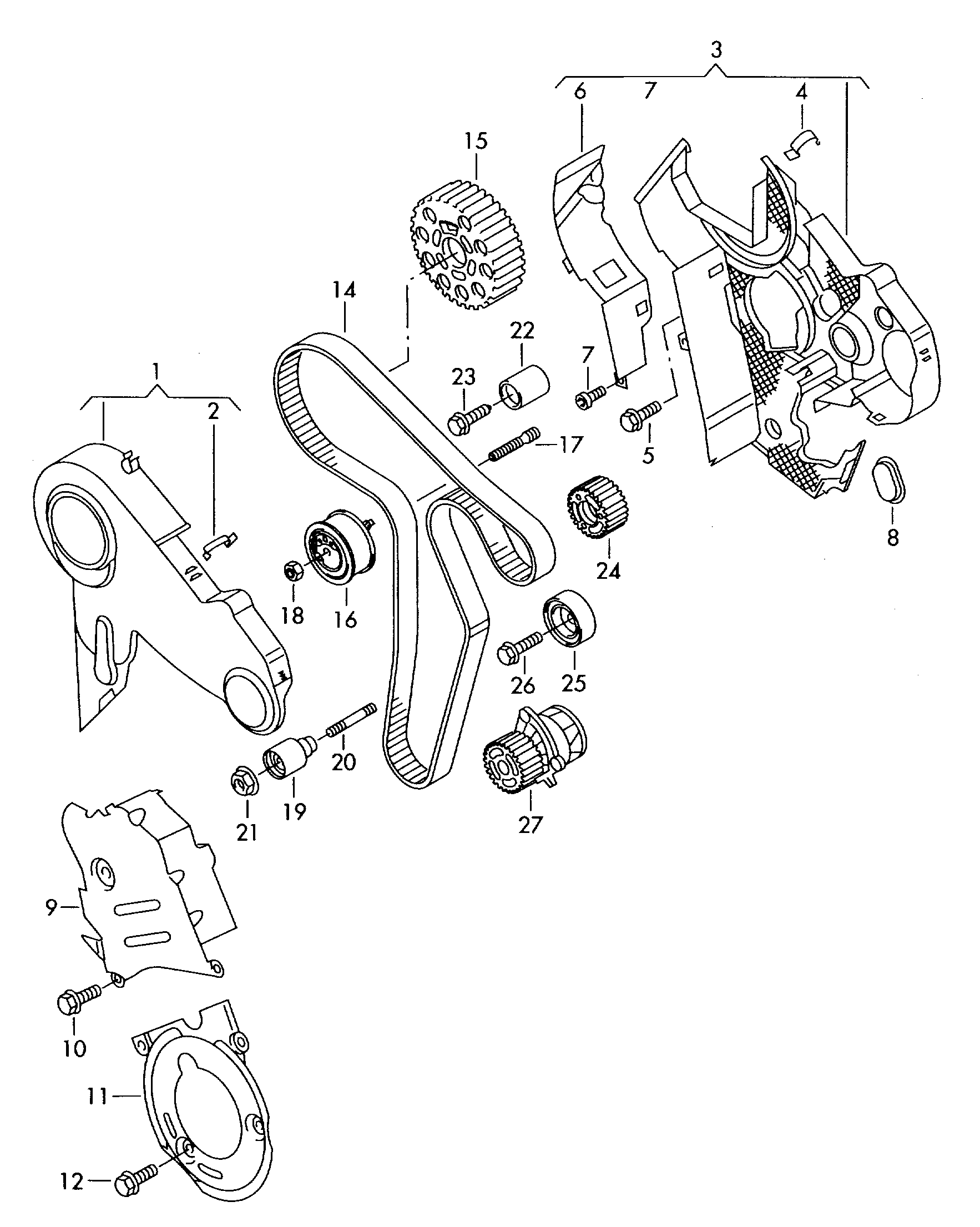

Scheme Toothed belt, toothed belt guard 2.0 ltr. diesel eng.+, CBAA, CBAB, CBAC, CBBB Volkswagen Passat CC Coupe 2009-2012 EUR
