Toothed belt, toothed belt guard 1.6ltr. petr. engine Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06B109123H	Toothed belt guard	999	Next
1	06B109123	Toothed belt guard	999	Next
2	06A109147J	Toothed belt guard	999	Next
3		Toothed belt pulley	999	Next
4	06A109119K	Toothed belt Z=138	999	Next
5	06A109175B	Toothed belt guard	999	Next
6	N10451409	Socket head bolt with hexagon socket head (combination) M6X16	999	Next
7	N0144083	Threaded pin M10XM8X62	999	Next
8	06A109479F	Tensioning roller	999	Next
9	N10609201	Hexagon collar nut M8	999	Next
10		Washer included in position: 9	999	Next
11	06B109145G	Toothed belt guard	999	Next
12	N90986102	Socket head bolt with inner multipoint head M8X20	999	Next
13	N01021533	Hexagon bolt M6X15	999	Next

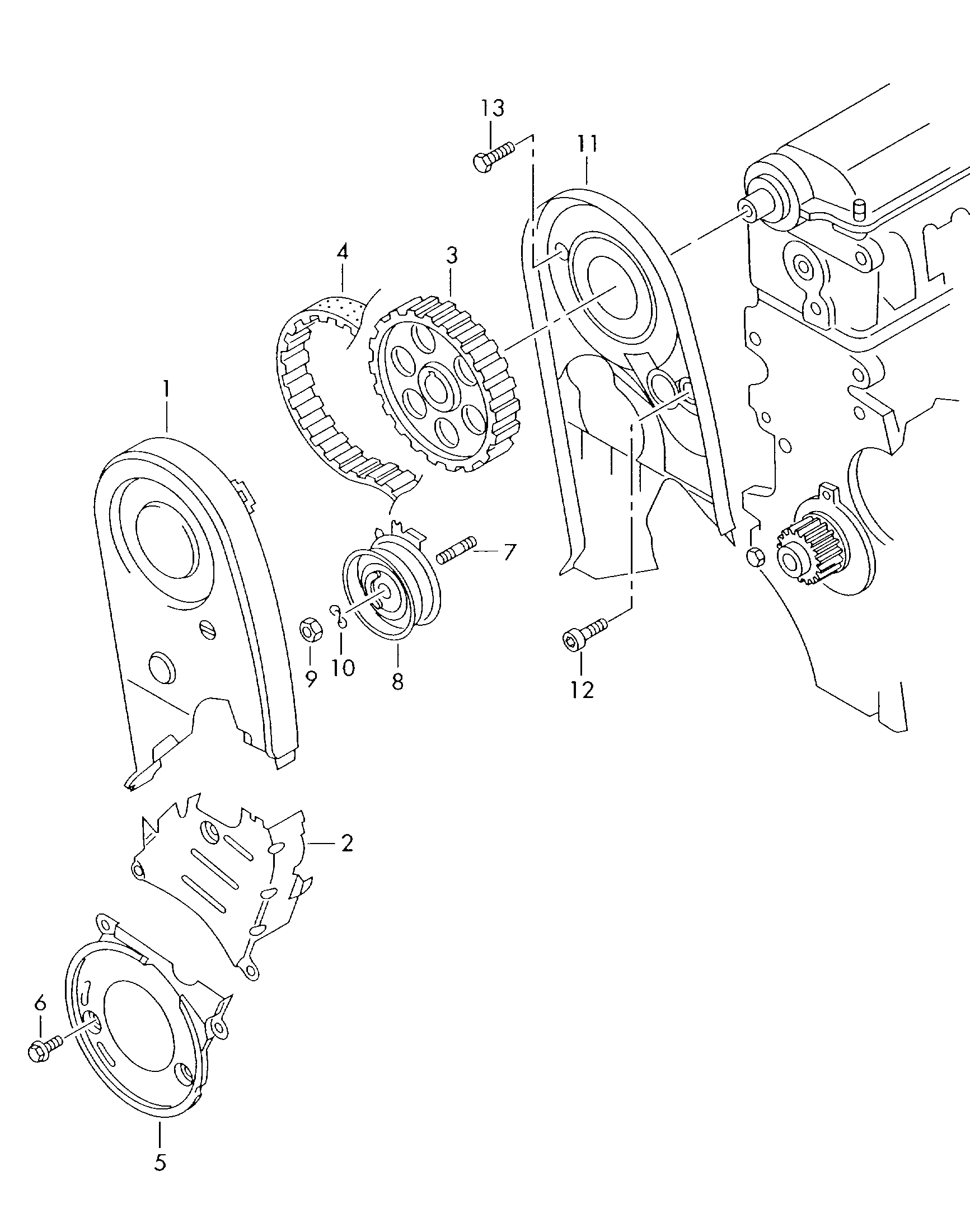

Scheme Toothed belt, toothed belt guard 1.6ltr. petr. engine Volkswagen Golf Plus 2012-2014 EUR
