Toothed belt, toothed belt guard 1.6ltr. diesel eng.+, CAYB, CAYC Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03L109107D	Toothed belt guard	999	Next
2	026109150A	Spring clip	999	Next
3	03L109145B	Cover	999	Next
3A		Cover no replacement part	999	Next
4	026109150A	Spring clip	999	Next
5	N10082912	Hexagon head bolt (combi) M6X16	999	Next
6	03L129969K	Guard plate	999	Next
7	N10555702	Hexagon socket flat head bolt 4X8	999	Next
8	38971904	Bungs	999	Next
9	03L109147D	Toothed belt guard	999	Next
9	03L109147B	Toothed belt guard	999	Next
10	N10451405	Oval hexagon socket head bolt M6X16	999	Next
13	03L109119G	Toothed belt Z=160	999	Next
13	03L109119J	Toothed belt Z=160	999	Next
14		Toothed belt pulley	999	Next
15	03L109243F	Tensioning roller	999	Next
16	N90905502	Threaded pin M10XM8X73	999	Next
17	038109454A	Hexagon collar nut M8	999	Next
18	03L109244G	Idler pulley	999	Next
19	N10444702	Threaded pin M8X55	999	Next
20	N10609201	Hexagon collar nut M8	999	Next
21	03L109244D	Idler pulley	999	Next
22	N10675602	Hex collared bolt M8X35	999	Next
23		Toothed belt pulley	999	Next
24	03L109244	Idler pulley	999	Next
24	03L109244J	Idler pulley	999	Next
25	N10699901	Hexagon bolt M10X45	999	Next
26		Coolant pump	999	Next

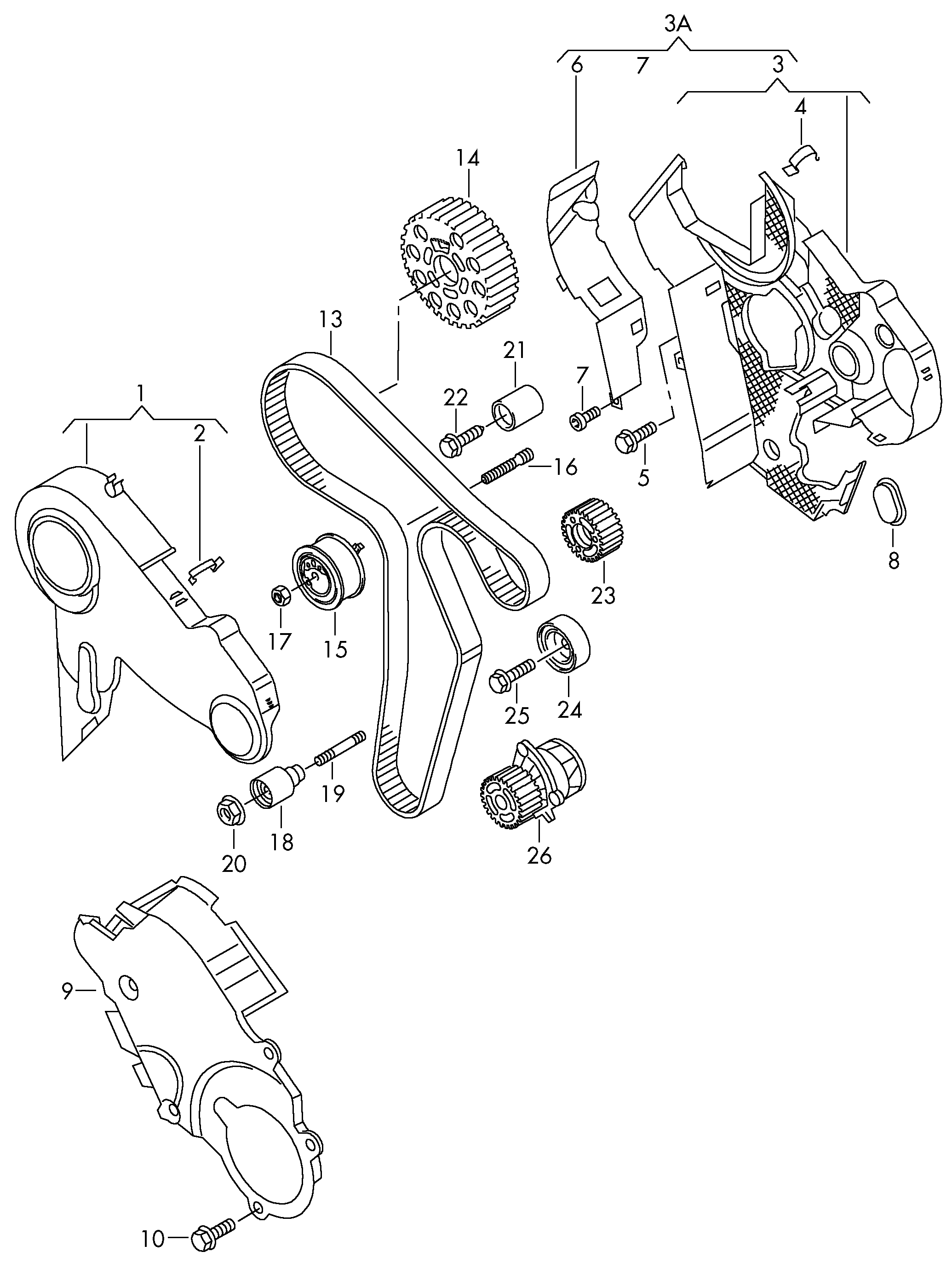

Scheme Toothed belt, toothed belt guard 1.6ltr. diesel eng.+, CAYB, CAYC Volkswagen Golf Plus 2012-2014 EUR
