Toothed belt, toothed belt guard 1.4ltr. petrol eng.+, CZDA, CZDB Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	04E109108E	Toothed belt guard	999	Next
1	026109150A	Spring clip	999	Next
1	N 10653301	Hex collared bolt M6X20	999	Next
1		Bracket for engine	999	Next
1		Bracket for engine	999	Next
1	04C109175F	Toothed belt guard	999	Next
1	N 91096801	Hexagon socket oval head bolt (combi) M6X20	999	Next
1	04E105263D	Toothed belt pulley	999	Next
1	04E109244B	Idler pulley	999	Next
1	04E109479A	Tensioning roller	999	Next
1	N 10690201	Round hd. screw M8X70	999	Next
1	04E109088L	Camshaft adjuster unit	999	Next
1	N 91239501	Socket head collared bolt with inner multipoint head M10X1,25	999	Next
1	04E109088AL	Camshaft adjuster unit	999	Next
1	N 91239501	Socket head collared bolt with inner multipoint head M10X1,25	999	Next
1	WHT004914	Sealing plug M27X1	999	Next
1	03C103825A	Sleeve	999	Next
1	04E109119F	Toothed belt	999	Next
1	04E109153	End cap	999	Next
1	N 10546403	Hexagon socket head bolt M6X16	999	Next
1	WHT007568	O-ring 69,4X3,1	999	Next

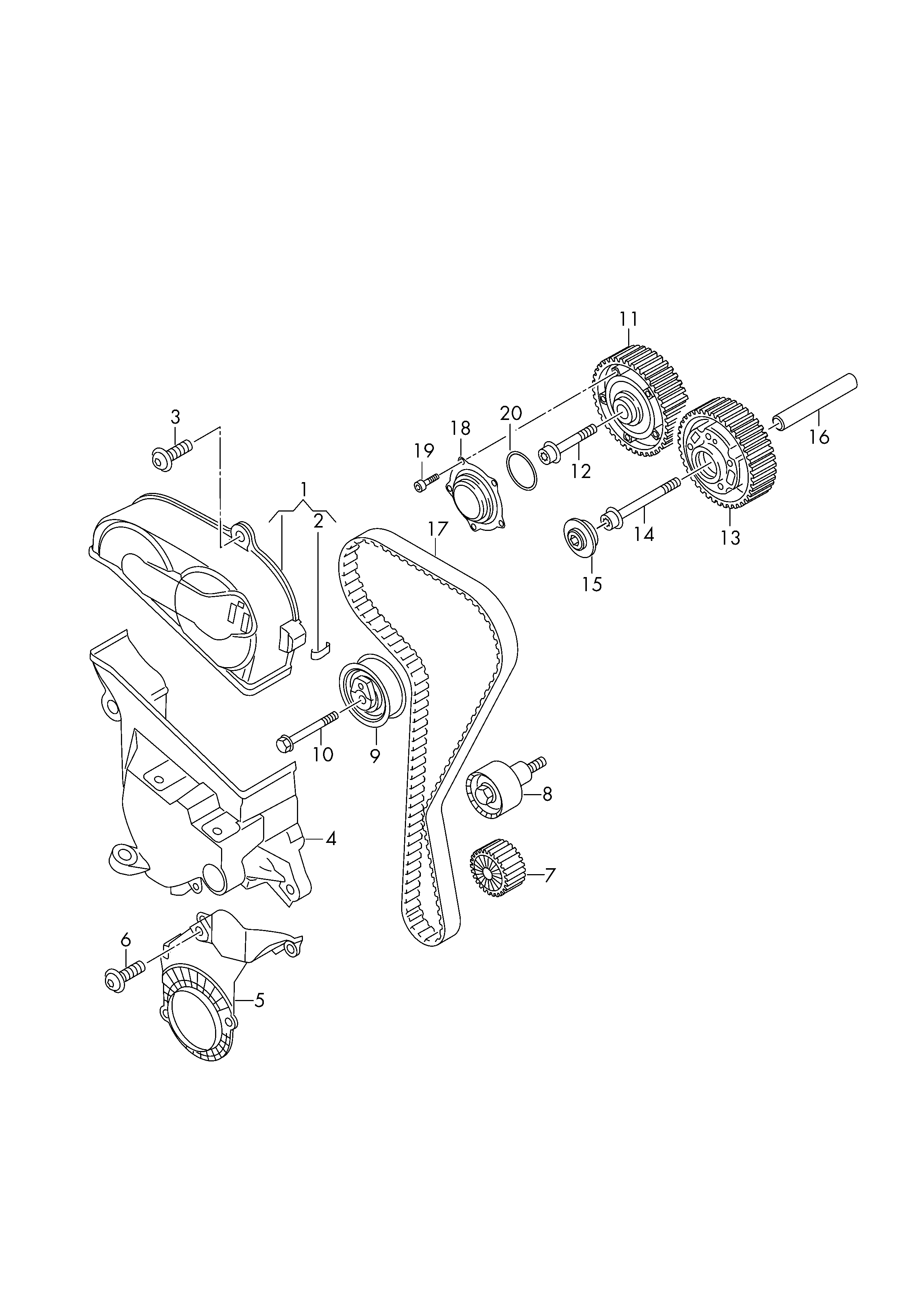

Scheme Toothed belt, toothed belt guard 1.4ltr. petrol eng.+, CZDA, CZDB Volkswagen Tiguan 2010-2017 EUR
