Timing case 1.4ltr. petr. engine Volkswagen Tiguan 2010-2017 EUR
Category content
- Spare parts table
- An illustrated scheme of this category is below the list of spare parts
| № | Part number | Part name | Go to the spare parts page |
|---|---|---|---|
| 1 | 03C109210CE | Timing case | Next |
| 1 | 03C109210CQ | Timing case | Next |
| 1 | 03C109210CD | Timing case | Next |
| 1 | 03C109210CP | Timing case | Next |
| 1 | 038103085E | Shaft oil seal 35X48X10 | Next |
| 1 | 03C109293 | Seal | Next |
| 1 | 03C133287A | O-ring | Next |
| 1 | 03C103485B | End cap | Next |
| 1 | 04E103485A | End cap | Next |
| 1 | 06A103483D | Seal | Next |
| 1 | 03C109287G | Seal | Next |
| 1 | D 176501A1 | Silicon sealant only for position: 7 | Next |
| 1 | N 90500605 | Socket head bolt with inner multipoint head M6X22 | Next |
| 1 | N 10300804 | Socket head bolt with inner multipoint head M6X45 | Next |
| 1 | N 10655802 | Hex collared bolt M10X85 | Next |

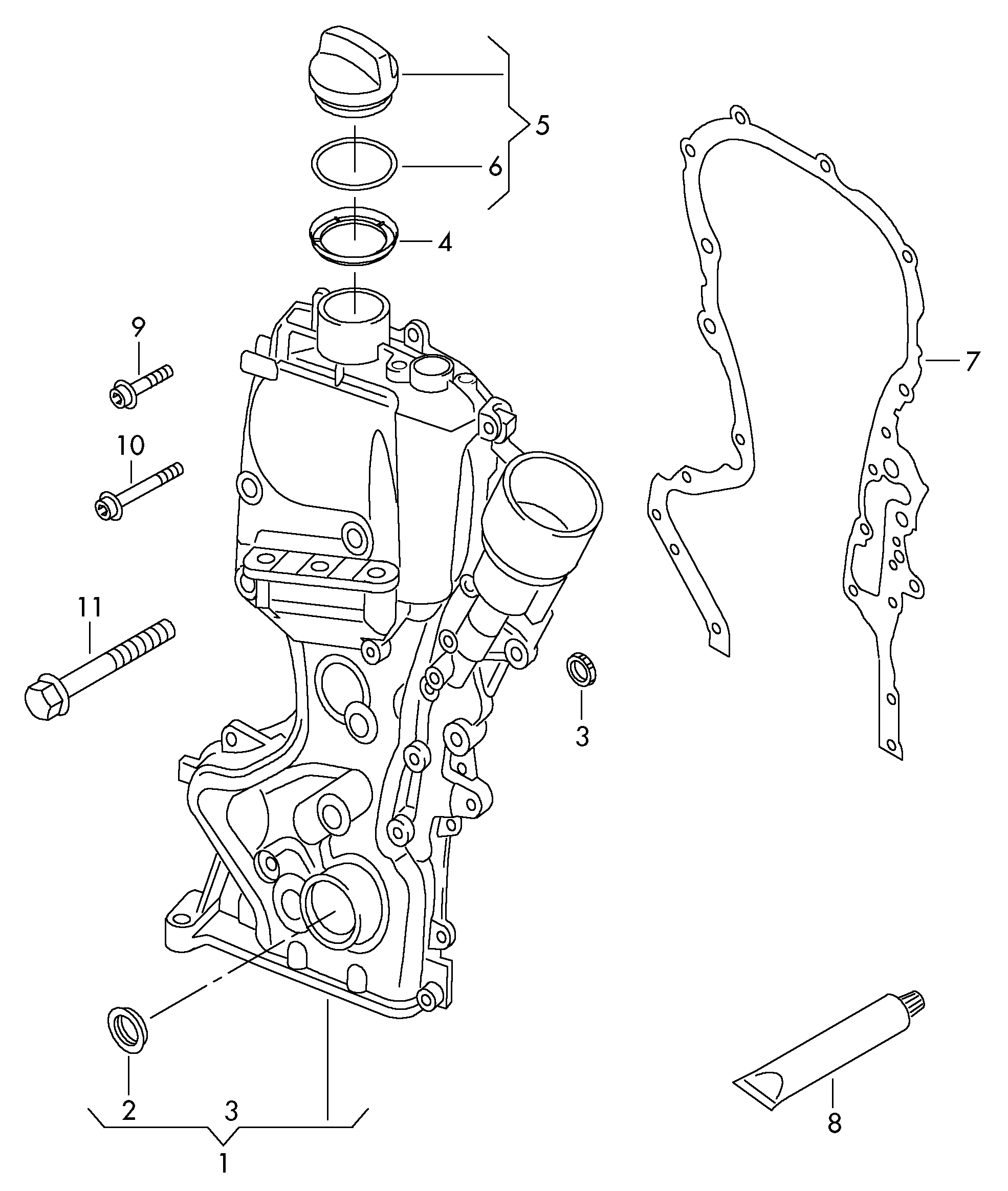

Scheme Timing case 1.4ltr. petr. engine Volkswagen Tiguan 2010-2017 EUR
