Timing case 1.4ltr. petr. engine Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C109210CE	Timing case	999	Next
1	03C109210CQ	Timing case	999	Next
1	03C109210CD	Timing case	999	Next
1	03C109210CP	Timing case	999	Next
2	038103085E	Shaft oil seal 35X48X10	999	Next
3	03C109293	Seal	999	Next
4	03C133287A	O-ring	999	Next
5	03C103485B	End cap	999	Next
6	06A103483D	Seal	999	Next
7	03C109287G	Seal	999	Next
8	D176501A1	Silicon sealant only for position: 7	999	Next
9	N90500605	Socket head bolt with inner multipoint head M6X22	999	Next
10	N10300804	Socket head bolt with inner multipoint head M6X45	999	Next
11	N10655802	Hex collared bolt M10X85	999	Next

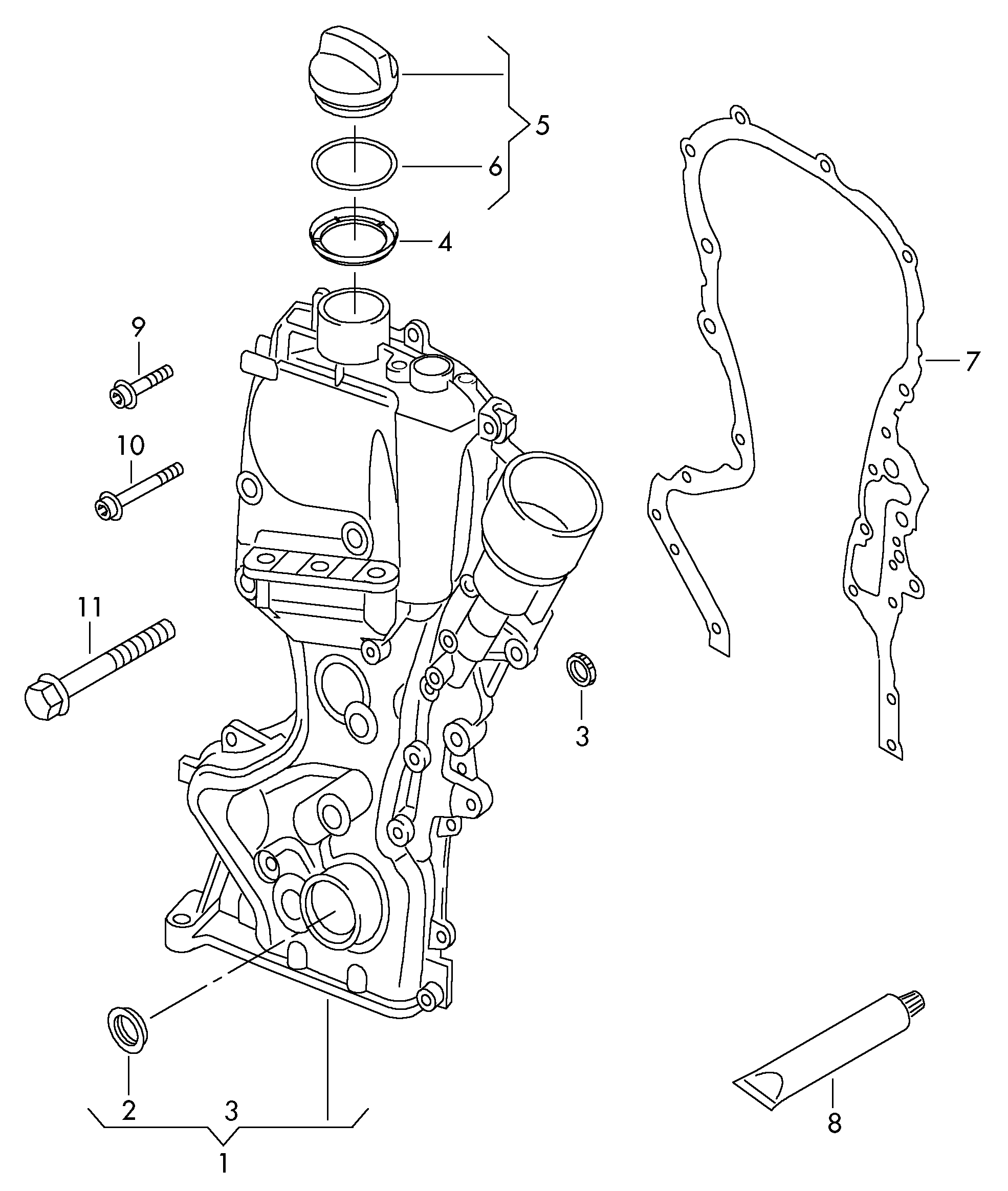

Scheme Timing case 1.4ltr. petr. engine Volkswagen Golf Plus 2012-2014 EUR
