Switch unit, selector fork, for 6 speed manual gearbox LHY, LNY, NBW, NBX, PRG, PRG Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0AG301230C	Switch unit	999	Next
1	0AG301230A	Switch unit	999	Next
2	02A301227M	Shaft oil seal 24,3X6,4	999	Next
3	14301485	Cap for venting the gearbox	999	Next
4	N90897307	Socket head bolt with inner multipoint head M6X20,5	999	Next
5	02T301209A	Bush	999	Next
6	02T301252A	End cap	999	Next
7	N10530403	Socket head collared bolt with inner multipoint head M6X38	999	Next
10	02T301427F	Mounting pin	999	Next
10	02T301427G	Mounting pin	999	Next
11	N90362001	O-ring 14X2	999	Next
12	N90897307	Socket head bolt with inner multipoint head M6X20,5	999	Next
13	02U311490C	Selector fork group with gear- shift rail	999	Next
14	02A311590C	Angular ball bearing 11,8X8,5X21	999	Next
15	02T311669K	Shift segment	999	Next
16	02T311669M	Shift segment	999	Next
17	N90397501	Clamping washer 7X15	999	Next
18	N02300313	Hexagon collar nut self-locking M8	999	Next
19	02U311562D	Selector fork	999	Next
20	02T301443A	Bearing pin	999	Next
30		Clutch housing	999	Next
31		Gear housing	999	Next

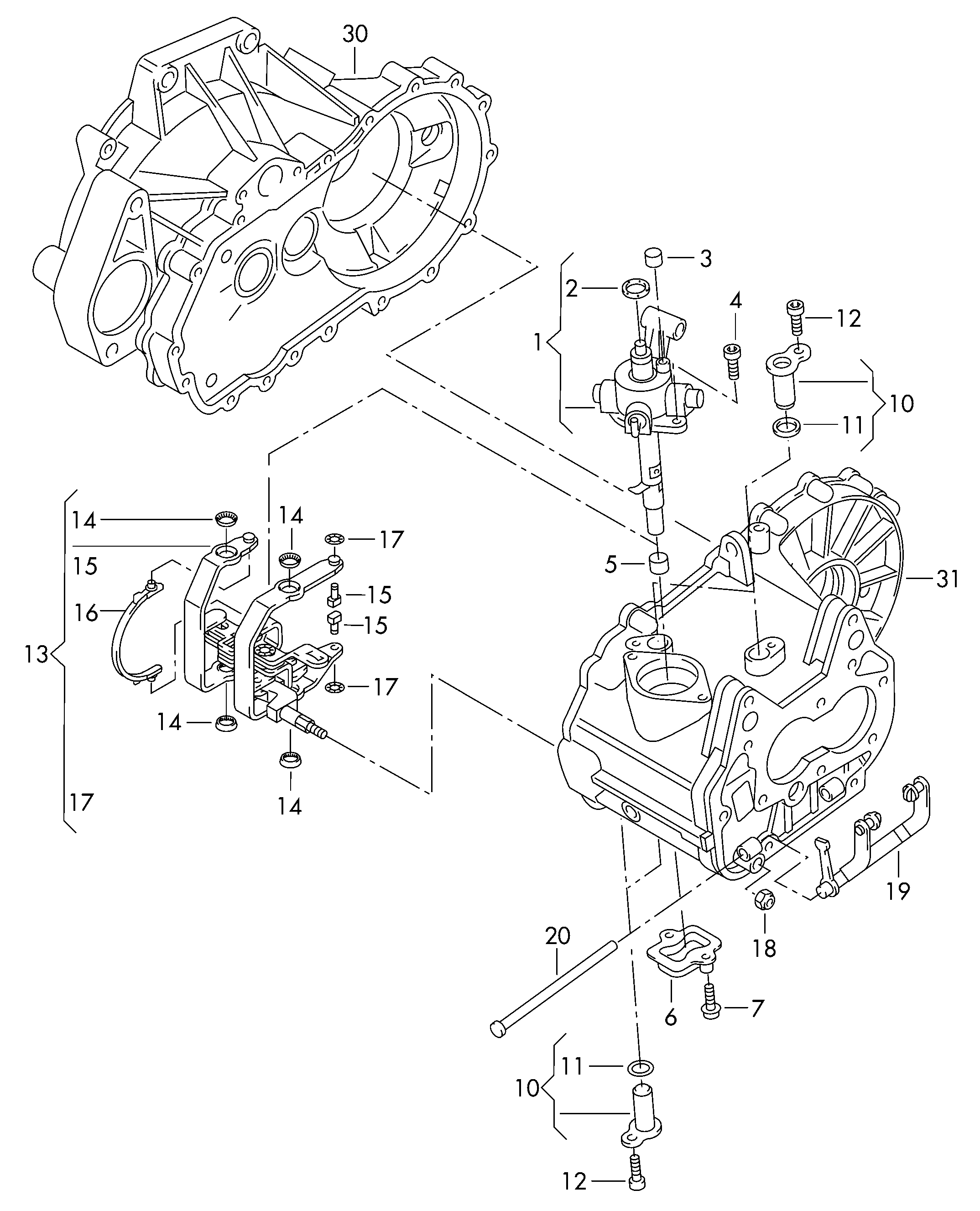

Scheme Switch unit, selector fork, for 6 speed manual gearbox LHY, LNY, NBW, NBX, PRG, PRG Volkswagen Golf Plus 2012-2014 EUR
