Switch unit, selector fork, for 6 speed manual gearbox LHD, NFP Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	02Q301230M	Switch unit	999	Next
1	02Q301230N	Switch unit	999	Next
2	N10692301	Hex collared bolt M8X25	999	Next
3	02A301227M	Shaft oil seal 24,3X6,4	999	Next
4	14301485	Cap for venting the gearbox	999	Next
5	N90354201	O-ring 56,82X2,62	999	Next
10	02T301234F	Retaining sleeve	999	Next
11	02M301241C	Locking screw M27X1,5	999	Next
12	02J301358C	Detent pin	999	Next
14	02M311549M	Selector shaft with selec.fork	999	Next
13	02M311559P	Selector shaft with selec.fork	999	Next
14	02M311549Q	Selector shaft with selec.fork	999	Next
15	02M311570H	Selector fork	999	Next
16	02Q311562B	Selector shaft with selec.fork	999	Next
17	02M311178	Selector fork group with gear- shift rail	999	Next
20		Bush for gearshift rod	999	Next
21		Switch for reversing light	999	Next
22		Gear housing	999	Next
23		Clutch housing	999	Next

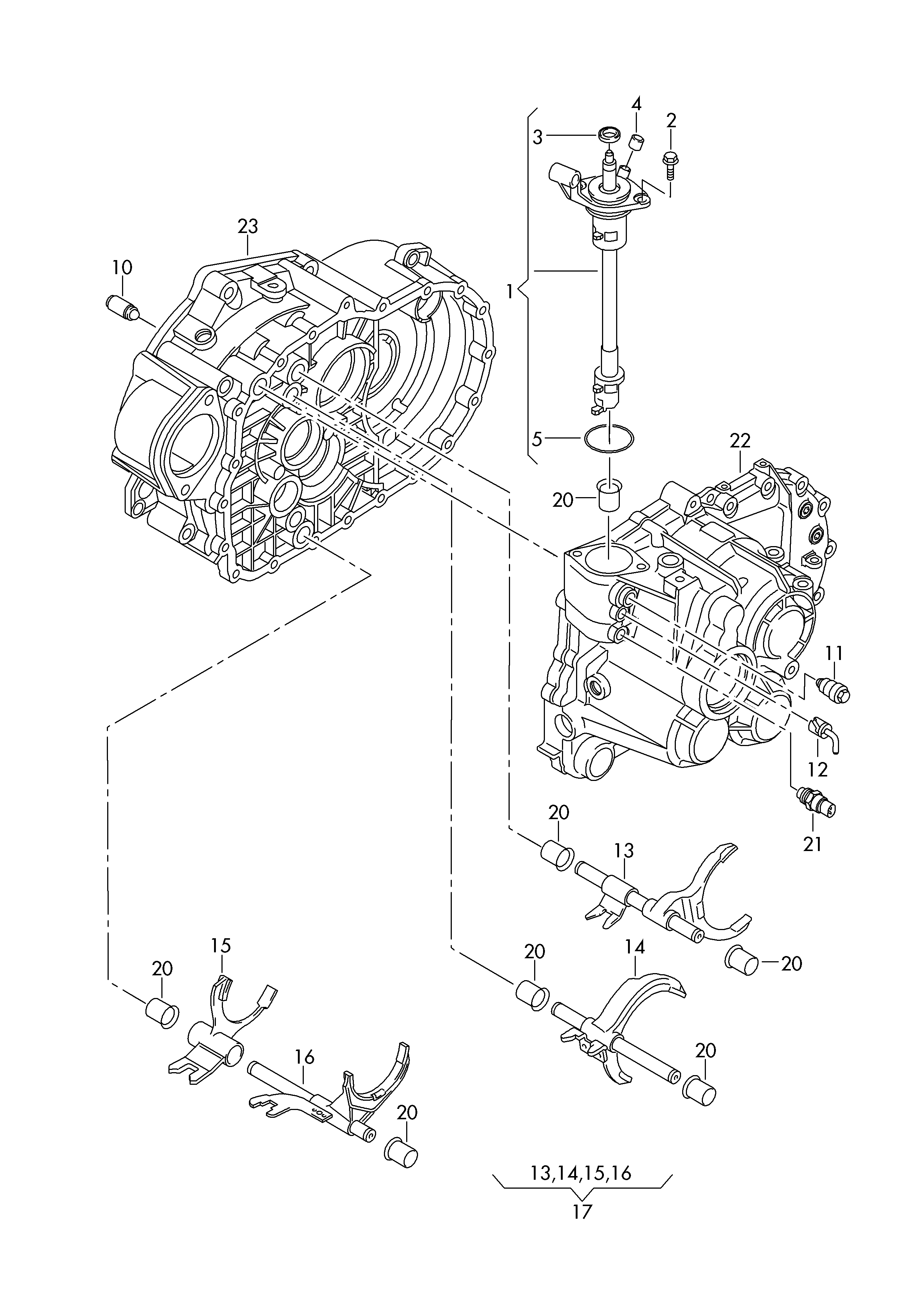

Scheme Switch unit, selector fork, for 6 speed manual gearbox LHD, NFP Volkswagen Golf Plus 2012-2014 EUR
