Switch unit, selector fork, for 5 speed manual transmiss. KQM, LHW, LUB Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0A4301230H	Switch unit	999	Next
1A	02J301358C	Detent pin	999	Next
2	02A301227M	Shaft oil seal 24,3X6,4	999	Next
3	14301485	Cap for venting the gearbox	999	Next
4	N91208801	Socket head bolt with inner multipoint head M8X25	999	Next
5	02K945415G	Switch for reversing light	999	Next
5	02K945415K	Switch for reversing light	999	Next
6	0A4301256	End cap	999	Next
7	N91208801	Socket head bolt with inner multipoint head M8X25	999	Next
8	0A4301427B	Mounting pin	999	Next
8A	N90362001	O-ring 14X2	999	Next
9	N90365907	Oval hexagon socket head bolt M8X22	999	Next
10	0A4311490B	Selector fork group with gear- shift rail	999	Next
11	02J311585A	Shift segment	999	Next
12	N90397501	Clamping washer 7X15	999	Next
13	02A311590C	Angular ball bearing 11,8X8,5X21	999	Next
15	02A311585J	Shift segment	999	Next
16	0A4311562A	Selector fork	999	Next
17	02A311585K	Shift segment	999	Next
18	02A301443	Bearing for selector fork	999	Next
19	N90903502	Socket head bolt with inner multipoint head M8X35	999	Next
20	0A4311521A	Selector fork	999	Next
21	N90464601	Hexagon socket head bolt M8X35X24	999	Next
28	02S301443A	Bearing pin	999	Next
29	N91010702	Socket head bolt with inner multipoint head M8X40	999	Next

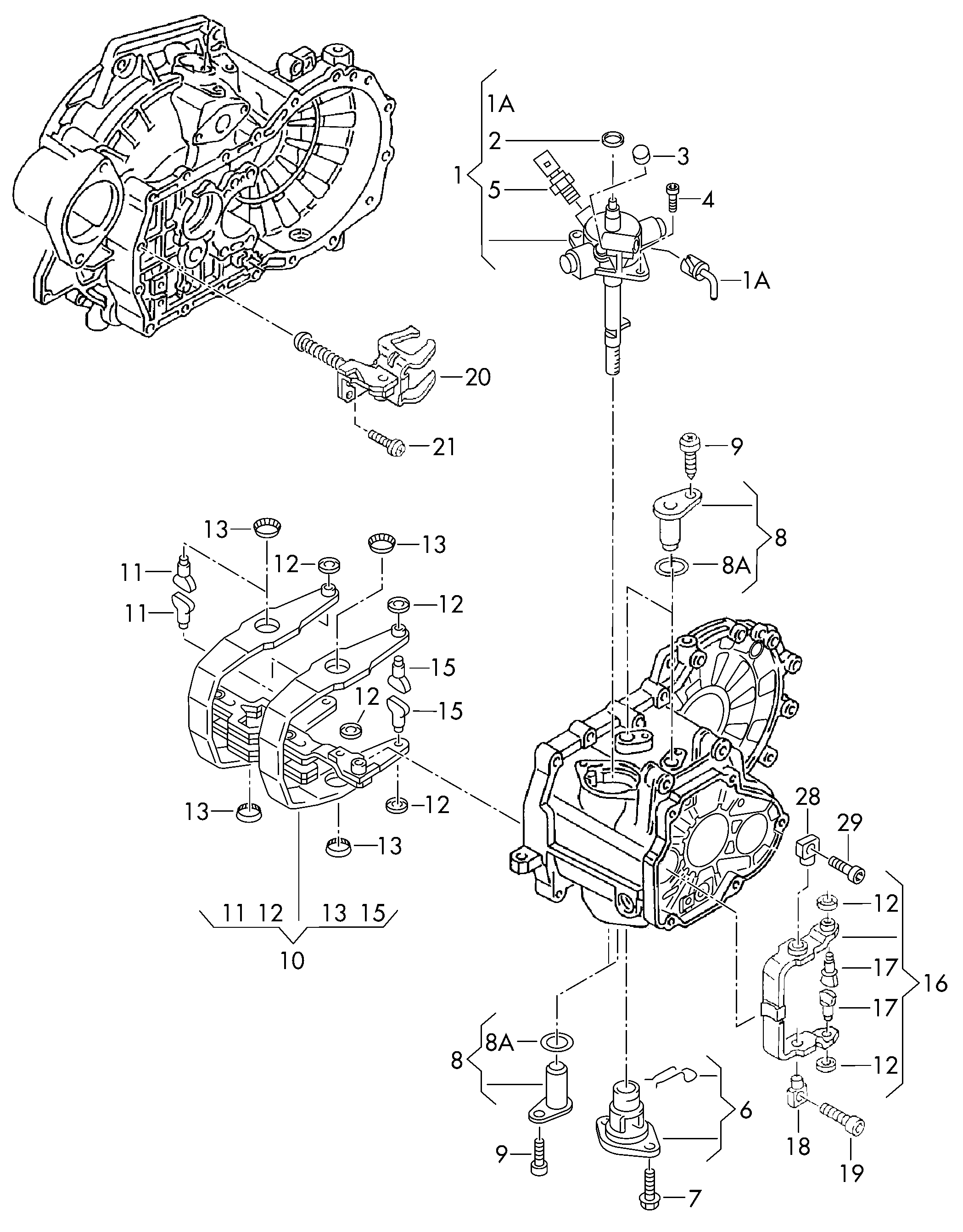

Scheme Switch unit, selector fork, for 5 speed manual transmiss. KQM, LHW, LUB Volkswagen Golf Plus 2012-2014 EUR
