Switch and sender on gearbox, wire set for 6-speed automatic gearbox KFE, KFD, KGU Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
2	09G927321A	Gearbox speed sender G195	999	Next
2	09G927321B	Gearbox speed sender G195	999	Next
3	09M927321B	Gearbox speed sender G182	999	Next
3	09G927321	Speedometer G182	999	Next
4	WHT000308	Hex collared bolt	999	Next
4	WHT000307	Hex collared bolt	999	Next
5	09G919823	Multi-function switch for automatic gearbox	999	Next
6	N01021723	Hexagon bolt M6X20	999	Next
7	N01100840	Hexagon nut M8	999	Next
8	WHT000304	Spring washer	999	Next
9	09G321171A	Lever	999	Next
10	09M927363A	Wiring set for 6-speed automatic gearbox	999	Next
11	WHT000314	Hex collared bolt M6X12	999	Next
12	09G927363	Wiring set for 6-speed automatic gearbox	999	Next
13	WHT000314	Hex collared bolt M6X12	999	Next

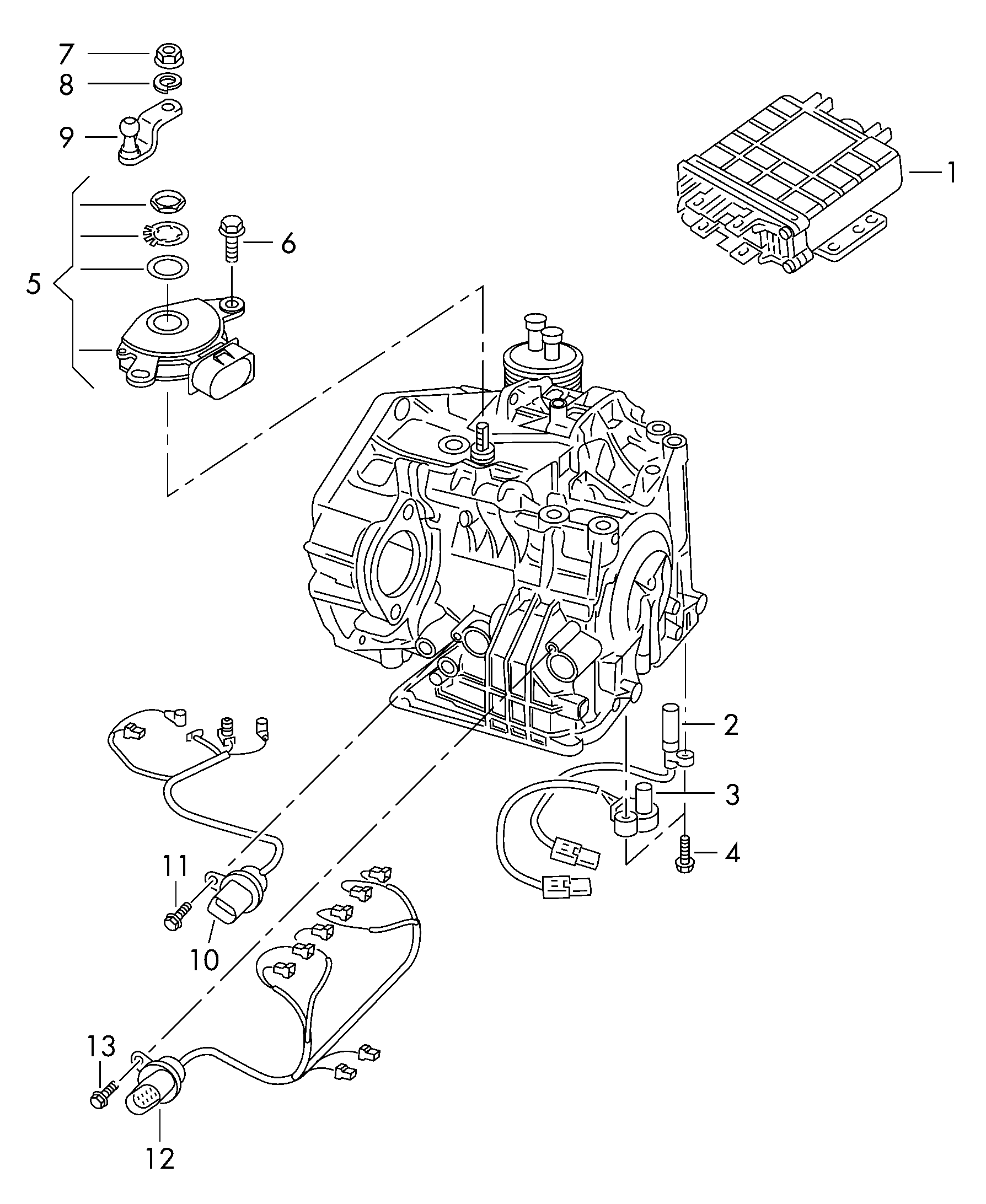

Scheme Switch and sender on gearbox, wire set for 6-speed automatic gearbox KFE, KFD, KGU Volkswagen Passat CC Coupe 2009-2012 EUR
