Suspension, shock absorbers rear fr.wheel drv Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0511115AB	Coil spring 1 paint mark 1 paint mark	999	Next
1	3C0511115AC	Coil spring 1 paint mark 1 paint mark 1 paint mark	999	Next
1	3C0511115AD	Coil spring 1 paint mark 1 paint mark 2 paint marks	999	Next
1	3C0511115AE	Coil spring 1 paint mark 1 paint mark 3 paint marks	999	Next
1	3C0511115AF	Coil spring 1 paint mark 1 paint mark 1 paint mark	999	Next
1	3C0511115AG	Coil spring 1 paint mark 1 paint mark 2 paint marks	999	Next
1	3C0511115AH	Coil spring 1 paint mark 1 paint mark 3 paint marks	999	Next
1	1K0511115DH	Coil spring for sports suspension 1 paint mark 3 paint marks 1 paint mark	999	Next
1	1K0511115CD	Coil spring for sports suspension 1 paint mark 1 paint mark	999	Next
1	1K0511115CE	Coil spring for sports suspension 1 paint mark 2 paint marks	999	Next
1	1K0511115CF	Coil spring for sports suspension 1 paint mark 3 paint marks	999	Next
1	1K0511115CG	Coil spring for sports suspension 1 paint mark 1 paint mark	999	Next
1	3C0511115BB	Coil spring for sports suspension 1 paint mark 1 paint mark 1 paint mark	999	Next
1	3C0511115BC	Coil spring for sports suspension 1 paint mark 1 paint mark 2 paint marks	999	Next
1	1K0511115CA	Coil spring 1 paint mark 1 paint mark	999	Next
1	1K0511115DG	Coil spring 1 paint mark 2 paint marks 1 paint mark	999	Next
1	1K0511115DH	Coil spring 1 paint mark 3 paint marks 1 paint mark	999	Next
1	1K0511115CD	Coil spring 1 paint mark 1 paint mark	999	Next
1	1K0511115CE	Coil spring 1 paint mark 2 paint marks	999	Next
1	1K0511115CF	Coil spring 1 paint mark 3 paint marks	999	Next
1	1K0511115CG	Coil spring 1 paint mark 1 paint mark	999	Next
1	1T0511359	Stop buffer	999	Next
1	1T0511359	Stop buffer	999	Next
1	3C0511359	Stop buffer	999	Next
1	1T0511359	Stop buffer	999	Next
1	3C0511359	Stop buffer	999	Next
1	5N0511359B	Stop buffer 143	999	Next
1	3C0511359	Stop buffer 133	999	Next
1	1J0512135A	Protective cap	999	Next
1	1K0512149B	Underlay	999	Next
1	1K0512297D	Spring support	999	Next
1		Wishbone	999	Next
1	5N0513049AL	Gas shock absorber	999	Next
1	5N0513049AT	Gas shock absorber	999	Next
1	5N0513049AM	Gas shock absorber	999	Next
1	5N0513049BA	Gas shock absorber	999	Next
1	5N0513049AN	Gas shock absorber	999	Next
1	5N0513049BB	Gas shock absorber	999	Next
1	5N0513049AB	Gas shock absorber	999	Next
1	5N0513049AP	Gas shock absorber	999	Next
1	5N0513049AC	Gas shock absorber	999	Next
1	5N0513049AQ	Gas shock absorber	999	Next
1	5N0513049T	Gas shock absorber for sports suspension	999	Next
1	5N0513049BD	Gas shock absorber	999	Next
1	5N0513049BE	Gas shock absorber	999	Next
1	5N0512011AA	Suspension strut, complete contains additional positions: 2, 3, 11, 13, 14	999	Next
1	5N0512011AG	Suspension strut, complete contains additional positions: 2, 3, 11, 13, 15	999	Next
1	5N0512011AP	Suspension strut, complete contains additional positions: 2, 3, 11, 13, 16	999	Next
1	5N0512011AQ	Suspension strut, complete contains additional positions: 2, 3, 11, 13, 17	999	Next
1	N 91066201	Hexagon head bolt (combi) use if required: M14X1,5X85 WHT 000 724	999	Next
1	WHT000724	Retaining washer 14,5X30X3	999	Next
1		Wheel bearing housing	999	Next
1		Thrust ring not for this model	999	Next
1	3C0513353C	Shock absorber bearing	999	Next
1	N 90648402	Hexagon head bolt (combi) M10X35	999	Next
1	N 10304102	Hexagon nut, self-locking M10X1	999	Next
1	3C0513425	Protective pipe	999	Next
1	N 90920301	Rivetted cap nut M6/0,5-3	999	Next
1	1K0511533D	Stone chip guard	999	Next
1	1K0511534D	Stone chip guard	999	Next
1	N 90529803	Hexagon head bolt (combi)	999	Next
1	N 91133501	Hexagon head bolt (combi)	999	Next
1	8E0825267	Spreader rivet 8	999	Next

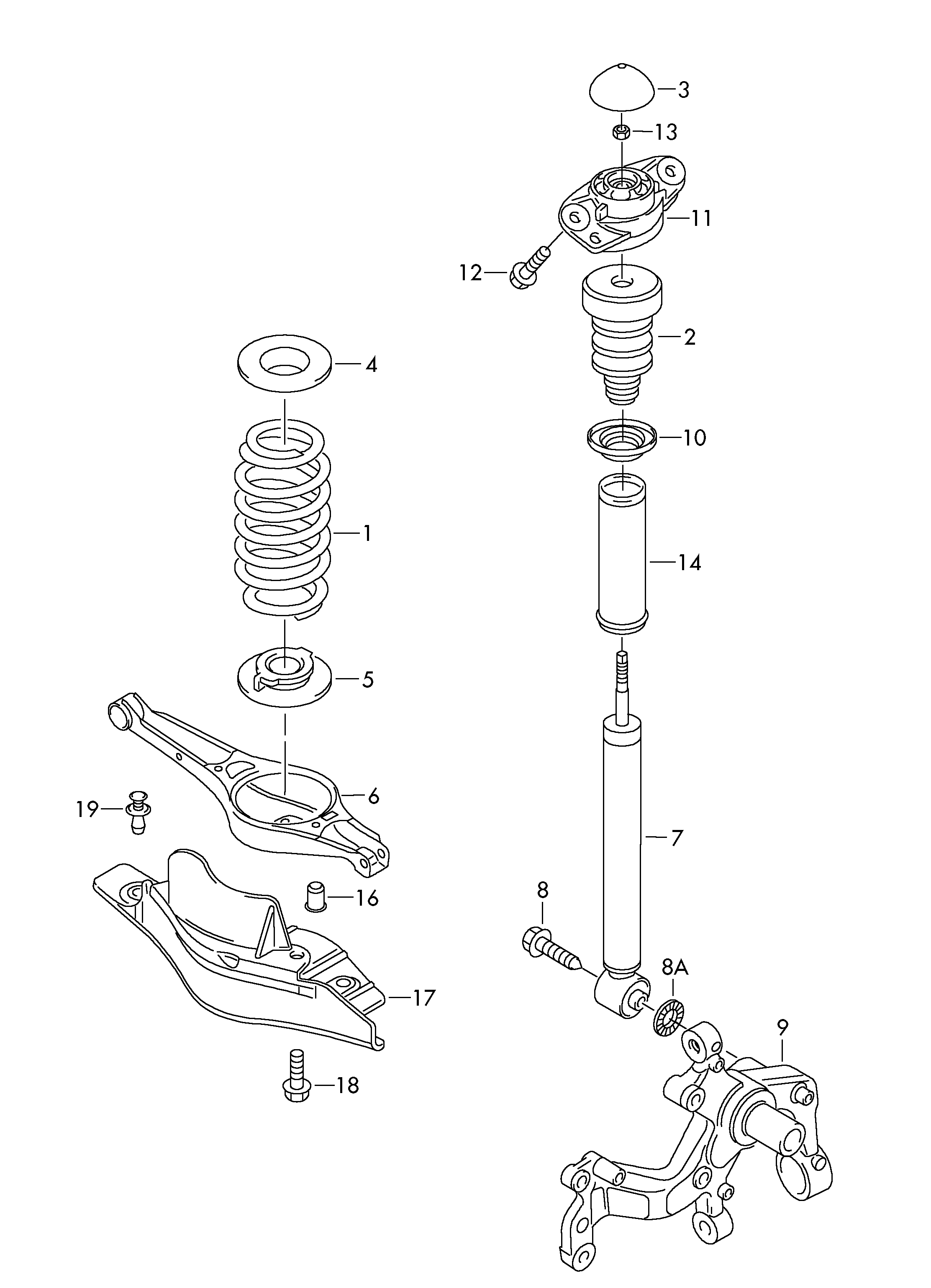

Scheme Suspension, shock absorbers rear fr.wheel drv Volkswagen Tiguan 2010-2017 EUR
