Suspension, shock absorbers for vehicles with electronically regulated shock absorber rear Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0511115BS	Coil spring, before 08.03.2010 1 paint mark 2 paint marks	999	Next
1	1K0511115BS	Coil spring, D 09.03.2010 and after 1 paint mark 2 paint marks	999	Next
1	1K0511115BT	Coil spring, D 09.03.2010 and after 1 paint mark 3 paint marks	999	Next
1	1K0511115BT	Coil spring 1 paint mark 3 paint marks	999	Next
1	1K0511115CA	Coil spring 1 paint mark 1 paint mark	999	Next
1	1K0511115DG	Coil spring 1 paint mark 2 paint marks 1 paint mark	999	Next
1	1K0511115DH	Coil spring 1 paint mark 3 paint marks 1 paint mark	999	Next
1	1K0511115CD	Coil spring 1 paint mark 1 paint mark	999	Next
1	1K0511115CE	Coil spring 1 paint mark 2 paint marks	999	Next
1	1K0511115CF	Coil spring 1 paint mark 3 paint marks	999	Next
2	3C0511359D	Stop buffer 125MM	999	Next
3	1J0512135A	Protective cap	999	Next
4	1K0512149B	Underlay	999	Next
5	1K0512297D	Spring support	999	Next
6		Wishbone	999	Next
7	3C0513045D	Gas shock absorber, electronically controlled	999	Next
7	3C0513046D	Gas shock absorber, electronically controlled	999	Next
8	N91066201	Hexagon head bolt (combi)	999	Next
8A	WHT000724	Retaining washer 14,5X30X3	999	Next
9		Wheel bearing housing	999	Next
11	3C0513353C	Shock absorber bearing, before 02.03.2009	999	Next
11	3C0513353E	Shock absorber bearing, D 03.03.2009 and after	999	Next
12	N90648402	Hexagon head bolt (combi) M10X35	999	Next
13	N10304102	Hexagon nut, self-locking M10X1	999	Next
14	3C0513425	Protective pipe	999	Next
21	3C0616575B	Accelerator sensor	999	Next
22		Level sensor with poles	999	Next
23	N10430103	Hexagon socket flat head bolt M5X16	999	Next

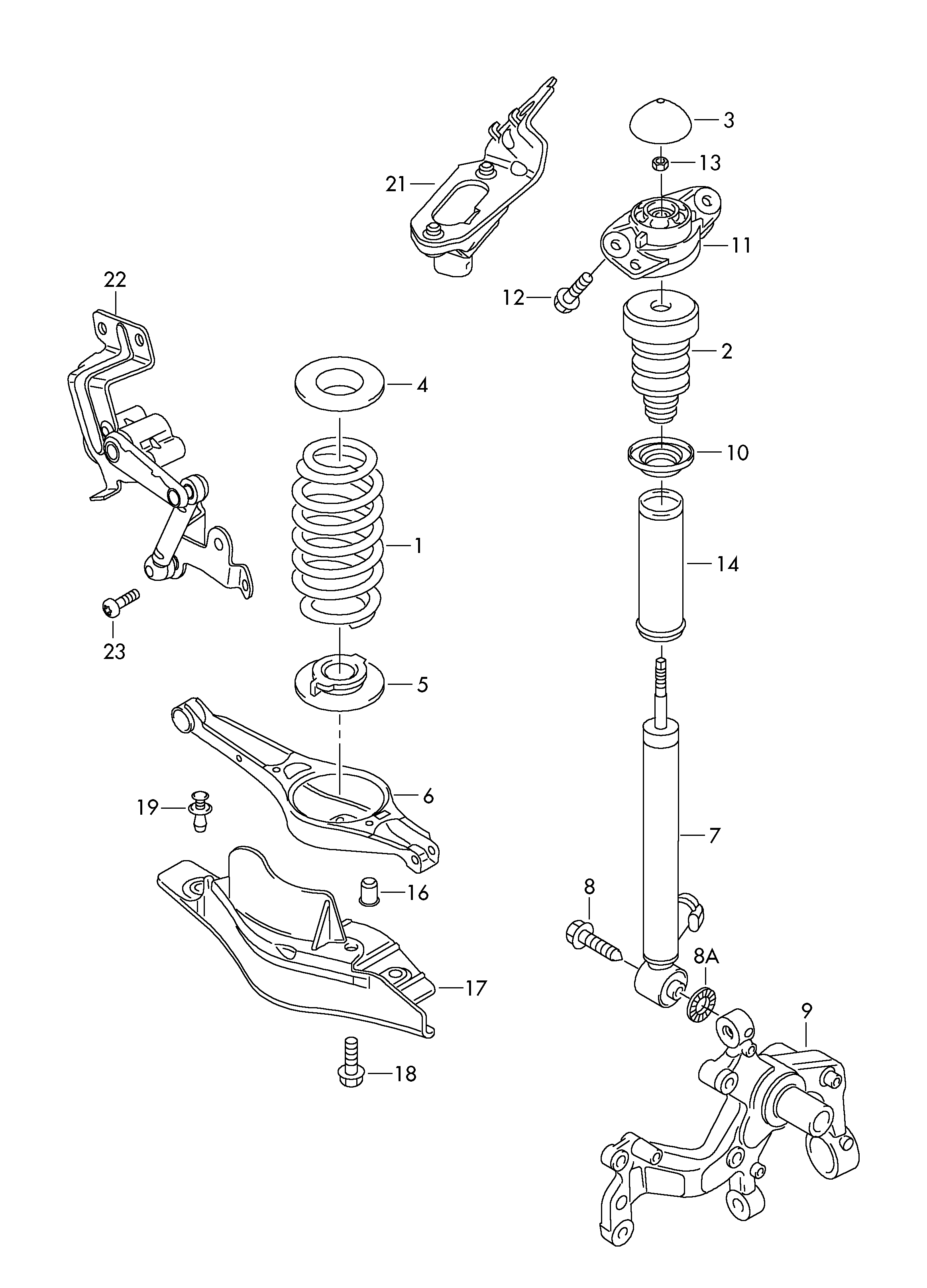

Scheme Suspension, shock absorbers for vehicles with electronically regulated shock absorber rear Volkswagen Passat CC Coupe 2009-2012 EUR
