Support frame rear fr.wheel drv Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0505315P	Support frame	999	Next
1	5N0505315S	Support frame	999	Next
1	N 91096401	Bolt, hex. hd. with shoul. (combi) optional: M12X1,5X95 N 911 961 01	999	Next
1	N 91196101	Bolt, hex. hd. with shoul. (combi) optional: M12X1,5X100 N 910 964 01	999	Next
1	N 91096401	Bolt, hex. hd. with shoul. (combi) optional: M12X1,5X95 N 911 961 01	999	Next
1	N 91196101	Bolt, hex. hd. with shoul. (combi) optional: M12X1,5X100 N 910 964 01	999	Next
1		Shim not for this model	999	Next
1		Bracket not for this model	999	Next
1		Weld screw not for this model	999	Next
1		Hex collared bolt not for this model	999	Next
1		Hexagon collar nut not for this model	999	Next
1		Trim for rear axle not for this model	999	Next
1		Hexagon collar nut not for this model	999	Next

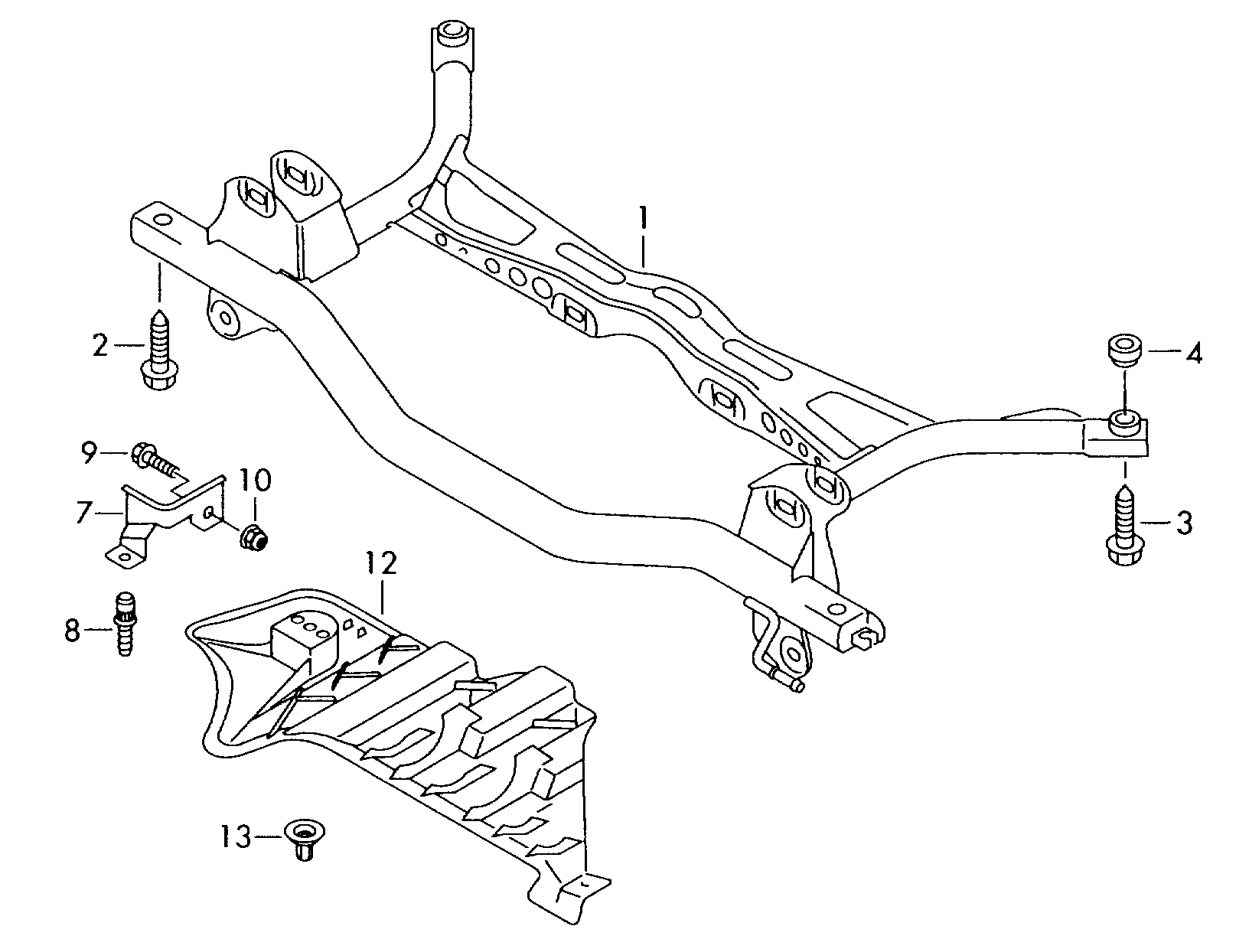

Scheme Support frame rear fr.wheel drv Volkswagen Tiguan 2010-2017 EUR
